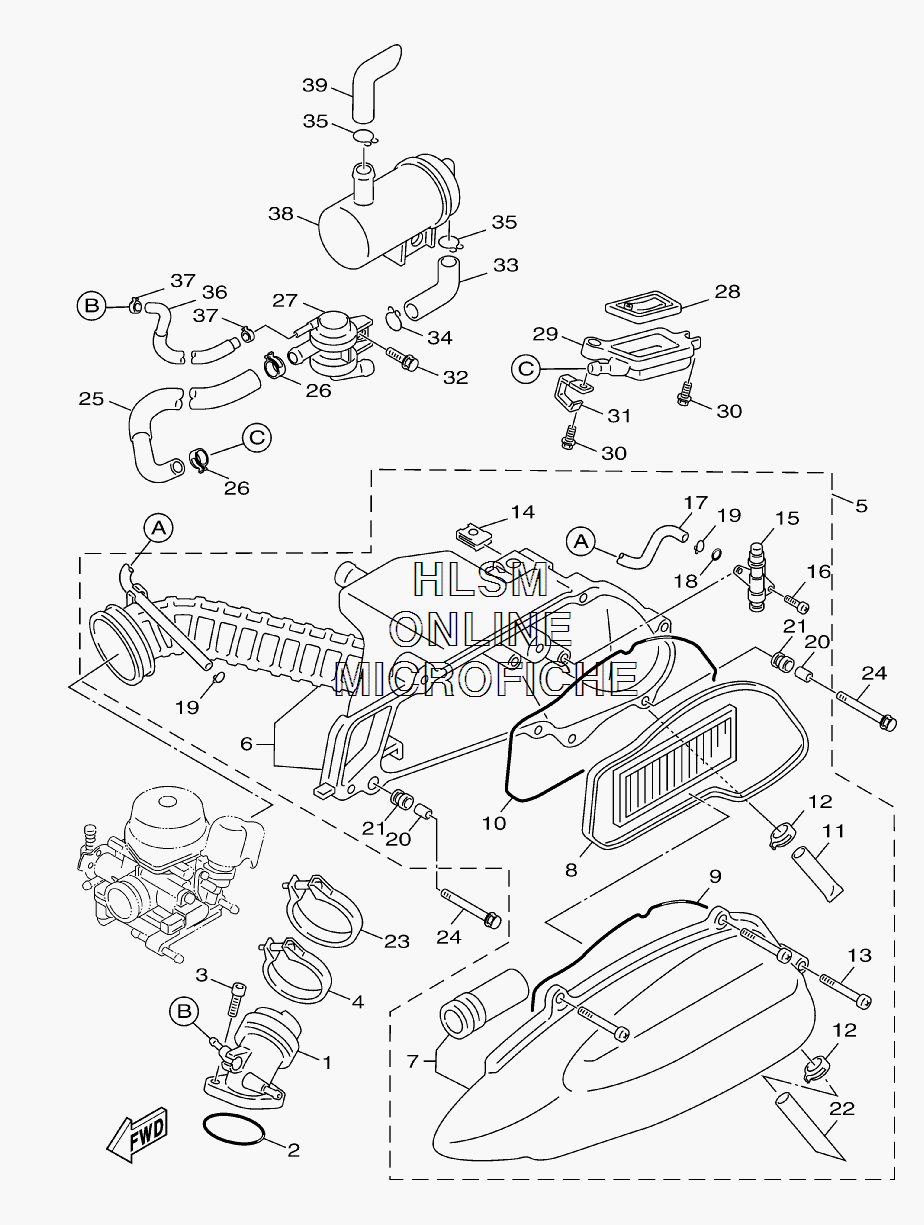

AIR CLEANER ASSY. W/ INTAKE для Yamaha VINO 50 CLASSIC - 2008 года выпуска`
-
№АртикулНазвание
-
15ST-E3585-00-00 MANIFOLDMANIFOLD
-
293210-22803-00 O-RINGO-RING
-
391317-06020-00 BOLTBOLT
-
45ST-E3575-00-00 BANDBAND
-
55ST-E4410-11-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
65ST-W1441-00-00 ...AIR CLEANER CASE COMP....AIR CLEANER CASE COMP.
-
75ST-W1442-10-00 ...CAP, CLEANER CASE 1...CAP, CLEANER CASE 1
-
85ST-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
95ST-E4467-00-00 ...SEAL...SEAL
-
105ST-E4476-00-00 ...SEAL...SEAL
-
115ST-E443E-00-00 ...PIPE, DRAIN...PIPE, DRAIN
-
1290467-12804-00 ...CLIP...CLIP
-
1397707-50125-00 ...SCREW, TRUSS...SCREW, TRUSS
-
145ST-E4164-00-00 ...NUT, HOLDING...NUT, HOLDING
-
155ST-E4303-00-00 ...COMPENSATOR ASSY...COMPENSATOR ASSY
-
1697707-50520-00 ...SCREW, TRUSS...SCREW, TRUSS
-
175ST-E4318-00-00 ...PIPE STARTER...PIPE STARTER
-
1893210-108A6-00 ...O-RING...O-RING
-
1990467-07029-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
205TY-E4449-00-00 ...COLLAR...COLLAR
-
215ST-E4435-00-00 ...GROMMET...GROMMET
-
225ST-E443G-00-00 ...PIPE, DRAIN 2...PIPE, DRAIN 2
-
2390450-48802-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2495807-06030-00 BOLT, FLANGEBOLT, FLANGE
-
255ST-E4881-00-00 HOSE, BEND 1HOSE, BEND 1
-
2690468-08812-00 CLIPCLIP
-
275ST-E4840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
285ST-E4890-00-00 REED VALVE ASSYREED VALVE ASSY
-
295ST-E4858-00-00 CAP, CASECAP, CASE
-
3095807-06014-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3190462-08801-00 CLAMPCLAMP
-
3290109-063F1-00 BOLTBOLT
-
335ST-E4882-00-00 HOSE, BEND 2HOSE, BEND 2
-
3490467-16829-00 CLIPCLIP
-
3590467-18830-00 CLIPCLIP
-
365ST-E3542-00-00 HOSE, VACUUM SENSING 1HOSE, VACUUM SENSING 1
-
3790467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
385ST-E4806-00-00 AIR FILTERAIR FILTER
-
395ST-E4883-00-00 HOSE, BEND 3HOSE, BEND 3
