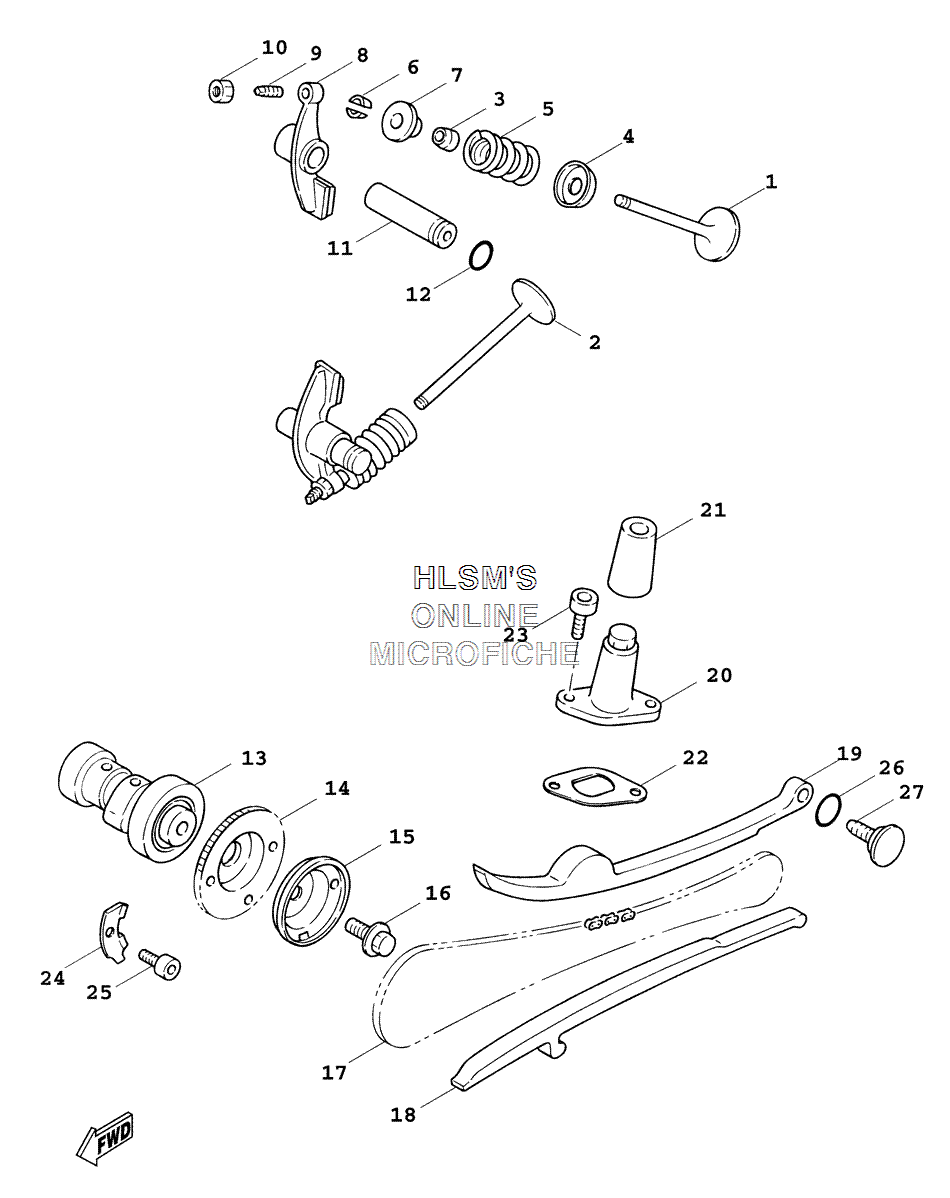

VALVE ASSY. W/ CAM CHAIN ASSY. для Yamaha VINO 125 - 2006 года выпуска`
-
№АртикулНазвание
-
14CW-E2111-00-00 VALVE, INTAKEVALVE, INTAKE
-
24CW-E2121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
34TE-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
45FM-E2126-00-00 SEAT, VALVE SPRING 2SEAT, VALVE SPRING 2
-
54TE-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
61WG-12118-00-00 COTTER, VALVECOTTER, VALVE
-
75FM-E2117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
85FM-E2151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
95FM-E2159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1090170-05800-00 NUTNUT
-
114CW-E2156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
1293210-07890-00 O-RINGO-RING
-
134CW-E2170-01-00 CAMSHAFT ASSY. 1CAMSHAFT ASSY. 1
-
145HK-E2176-01-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
154CW-E1145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
1695817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1794568-77088-00 CHAINCHAIN
-
184CW-E2231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
194CW-E2241-10-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
204CW-E2210-01-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
214CW-E2232-00-00 DAMPERDAMPER
-
224DH-E2213-01-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
239131L-06016-00 BOLTBOLT
-
244CW-E111F-01-00 PLATEPLATE
-
2591317-06012-00 BOLTBOLT
-
2693210-15862-00 O-RINGO-RING
-
274CW-E2157-00-00 BOLTBOLT
