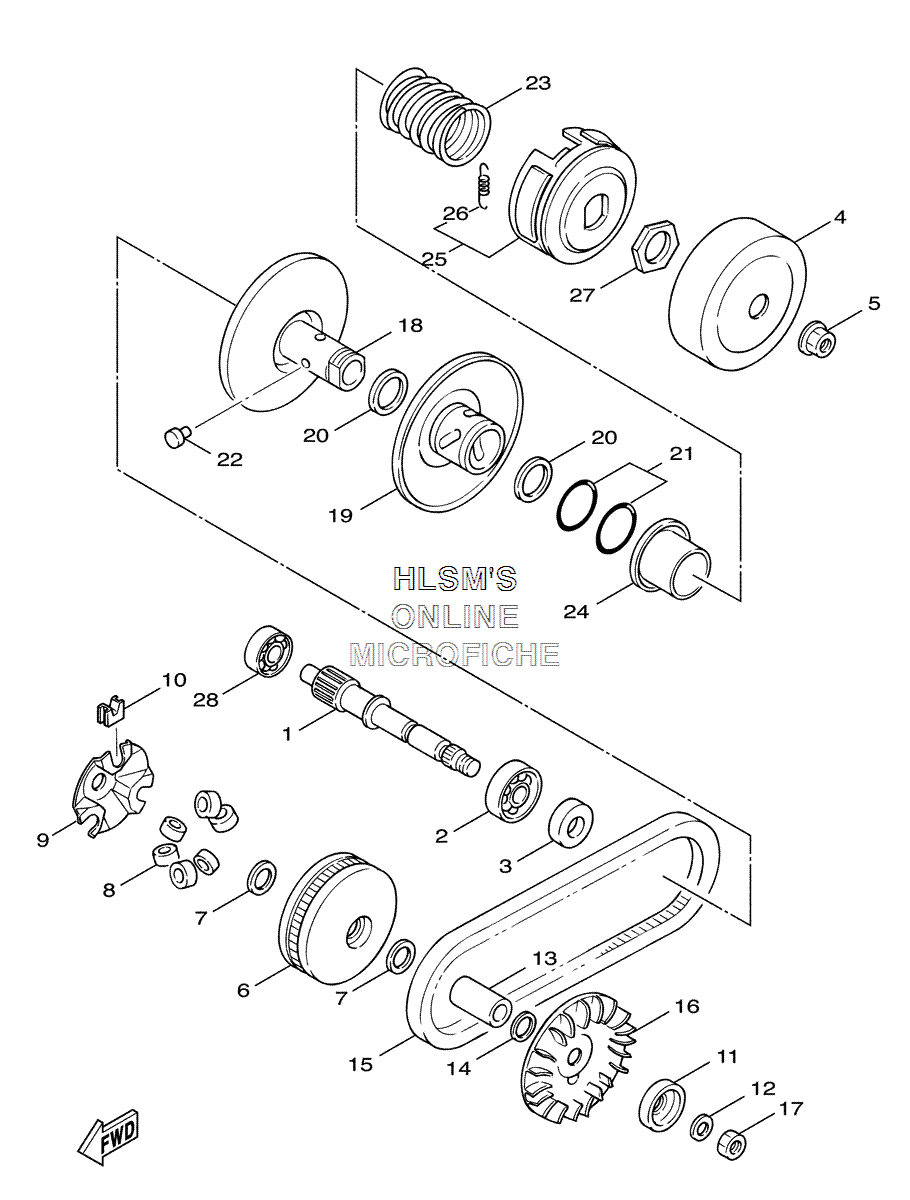

CLUTCH ASSY. для Yamaha VINO 125 - 2006 года выпуска`
-
№АртикулНазвание
-
15CA-E6111-01-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
293306-004X2-00 BEARINGBEARING
-
393102-22800-00 OIL SEALOIL SEAL
-
44CW-E6611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
590179-14427-00 NUTNUT
-
64TE-E7620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
793101-21820-00 OIL SEALOIL SEAL
-
85CY-E7632-00-00 WEIGHTWEIGHT
-
94CW-E7623-00-00 CAMCAM
-
104CW-E7653-00-00 SLIDERSLIDER
-
113UH-E5657-00-00 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
1290208-12050-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
1390387-168D2-00 COLLARCOLLAR
-
1490201-16801-00 WASHER, PLATEWASHER, PLATE
-
155NW-E7641-00-00 V-BELTV-BELT
-
164HP-E7611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
1790170-12338-00 NUTNUT
-
184CW-E7660-01-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
194KP-E7670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
2093104-41801-00 OIL SEALOIL SEAL
-
2193210-43800-00 O-RINGO-RING
-
224CW-E7664-00-00 PIN, GUIDEPIN, GUIDE
-
2390501-452J8-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
243UH-E7684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
254TE-E6620-01-00 CLUTCH CARRIER ASSY.CLUTCH CARRIER ASSY.
-
264CW-E6626-00-00 ...SPRING, CLUTCH WEIGHT 1...SPRING, CLUTCH WEIGHT 1
-
2790170-36279-00 NUTNUT
-
2893306-203Y0-00 BEARINGBEARING
