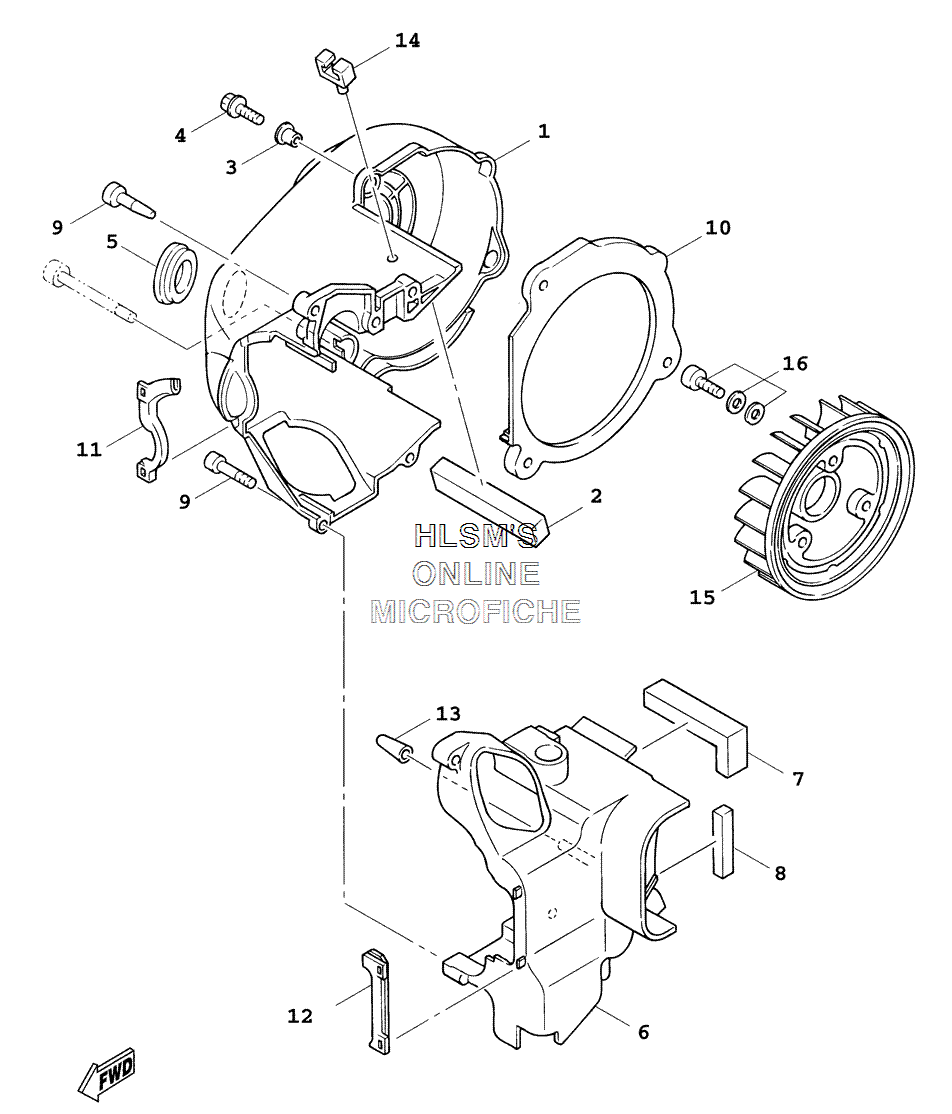

AIR SHROUD W/ FAN для Yamaha VINO 125 - 2006 года выпуска`
-
№АртикулНазвание
-
14KP-E2651-01-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
24CW-E2669-00-00 DAMPER, AIR SHROUD 4DAMPER, AIR SHROUD 4
-
390387-068F9-00 COLLARCOLLAR
-
497607-06220-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
590480-30167-00 GROMMETGROMMET
-
64CW-E2652-00-00 AIR SHROUD, CYLINDER 2AIR SHROUD, CYLINDER 2
-
74CW-E2678-00-00 DAMPER, AIR SHROUD 5DAMPER, AIR SHROUD 5
-
84CW-E2679-00-00 DAMPER, SHROUD 6DAMPER, SHROUD 6
-
997707-60530-00 SCREW, TAPPINGSCREW, TAPPING
-
104CW-E2658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
114CW-E2659-01-00 DAMPER, AIR SHROUD 2DAMPER, AIR SHROUD 2
-
124CW-E2668-00-00 DAMPER, AIR SHROUD 3DAMPER, AIR SHROUD 3
-
133KW-E3569-00-00 PLUG, BLINDPLUG, BLIND
-
1490464-08020-00 CLAMPCLAMP
-
154TE-E2611-00-00 FANFAN
-
1697607-06316-00 SCREW, WITH WASHERSCREW, WITH WASHER
