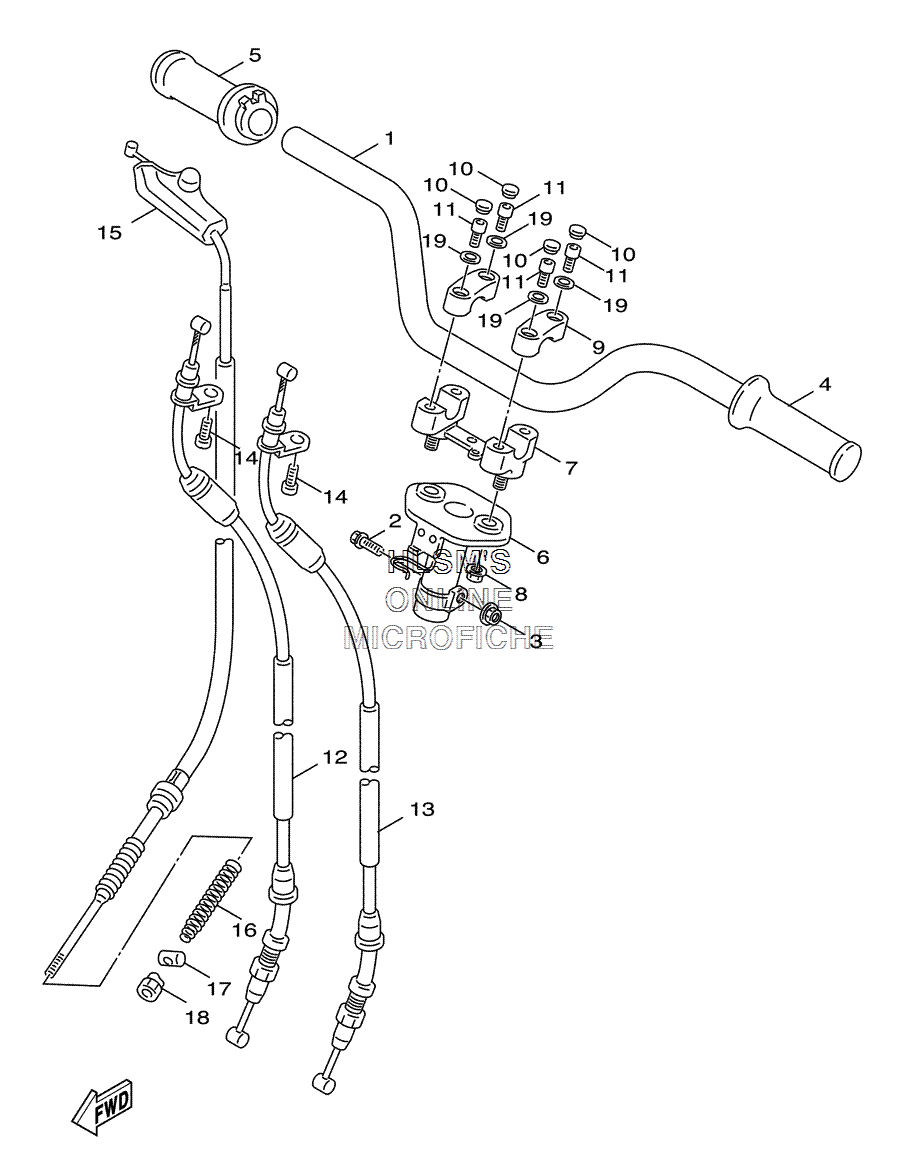

HANDLEBAR W/ CABLES для Yamaha VINO 125 - 2006 года выпуска`
-
№АртикулНазвание
-
15YR-F6111-00-00 HANDLEBARHANDLEBAR
-
290105-10036-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
44JL-F6241-01-00 GRIP (LEFT)GRIP (LEFT)
-
55YR-F6240-00-00 GRIP ASSY.GRIP ASSY.
-
65YR-F3461-00-00 BRACKET, HANDLEBRACKET, HANDLE
-
75FH-F3442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
890185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
91MH-F3441-11-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1090338-08163-00 PLUGPLUG
-
119131L-08025-00 BOLTBOLT
-
125YR-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
135YR-F6312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
1498507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
155YR-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
1690501-16831-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1790249-12008-00 PINPIN
-
1890179-06843-00 NUTNUT
-
1990201-08823-00 WASHER, PLATEWASHER, PLATE
