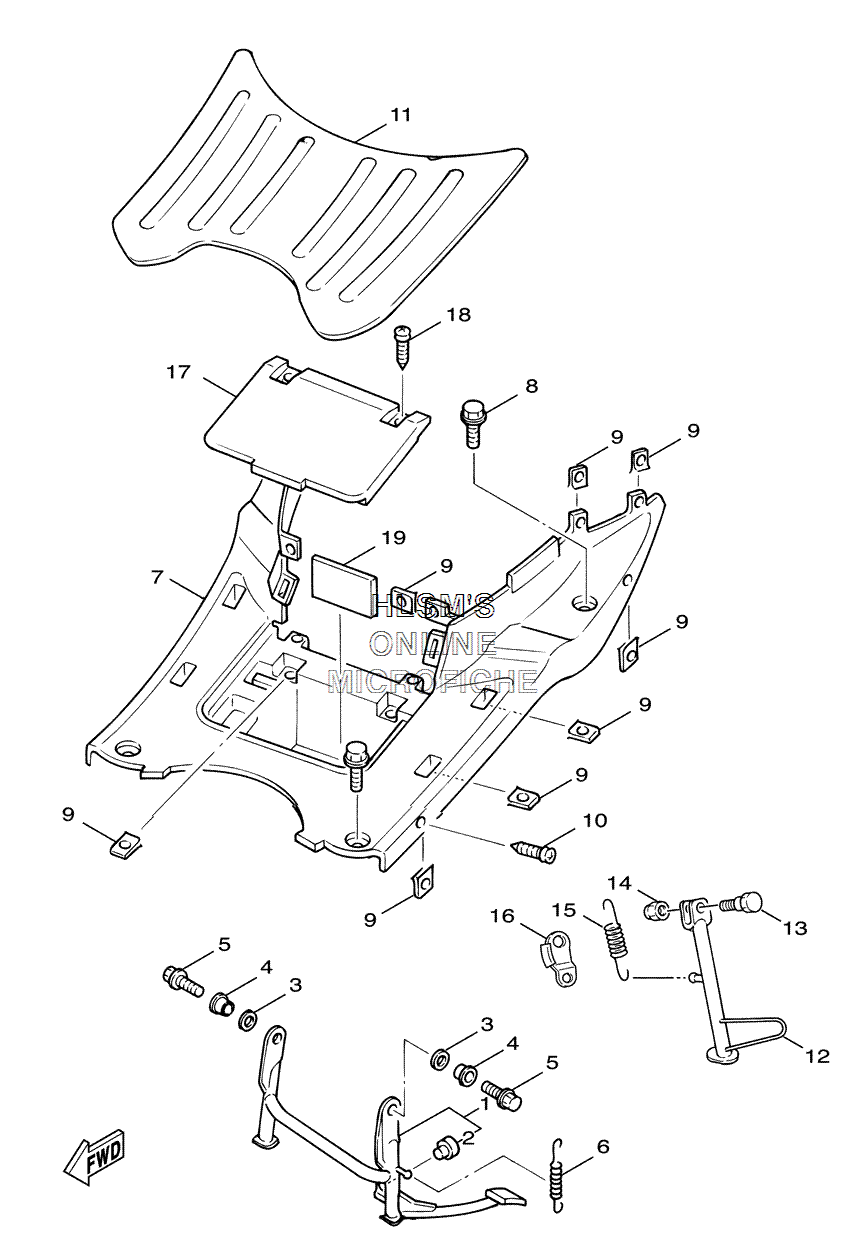

STAND W/ FOOTREST для Yamaha VINO 125 - 2006 года выпуска`
-
№АртикулНазвание
-
14CW-W2711-04-00 STAND, MAINSTAND, MAIN
-
23UH-F7114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
390202-15804-00 WASHER, PLATEWASHER, PLATE
-
490387-10800-00 COLLARCOLLAR
-
595827-10035-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
690506-32834-00 SPRING, TENSIONSPRING, TENSION
-
75JS-F7481-41-00 BOARD, FOOTRESTBOARD, FOOTREST
-
890119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990183-05807-00 NUT, SPRINGNUT, SPRING
-
1097707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
115JS-F7483-10-00 MAT 1MAT 1
-
125JS-F7311-00-00 STAND, SIDESTAND, SIDE
-
1390109-08032-00 BOLTBOLT
-
1490185-08818-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590506-20842-00 SPRING, TENSIONSPRING, TENSION
-
164TE-F7315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
175JS-H2129-40-00 COVER, BATTERYCOVER, BATTERY
-
1897707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
195CP-H2176-00-00 DAMPERDAMPER
