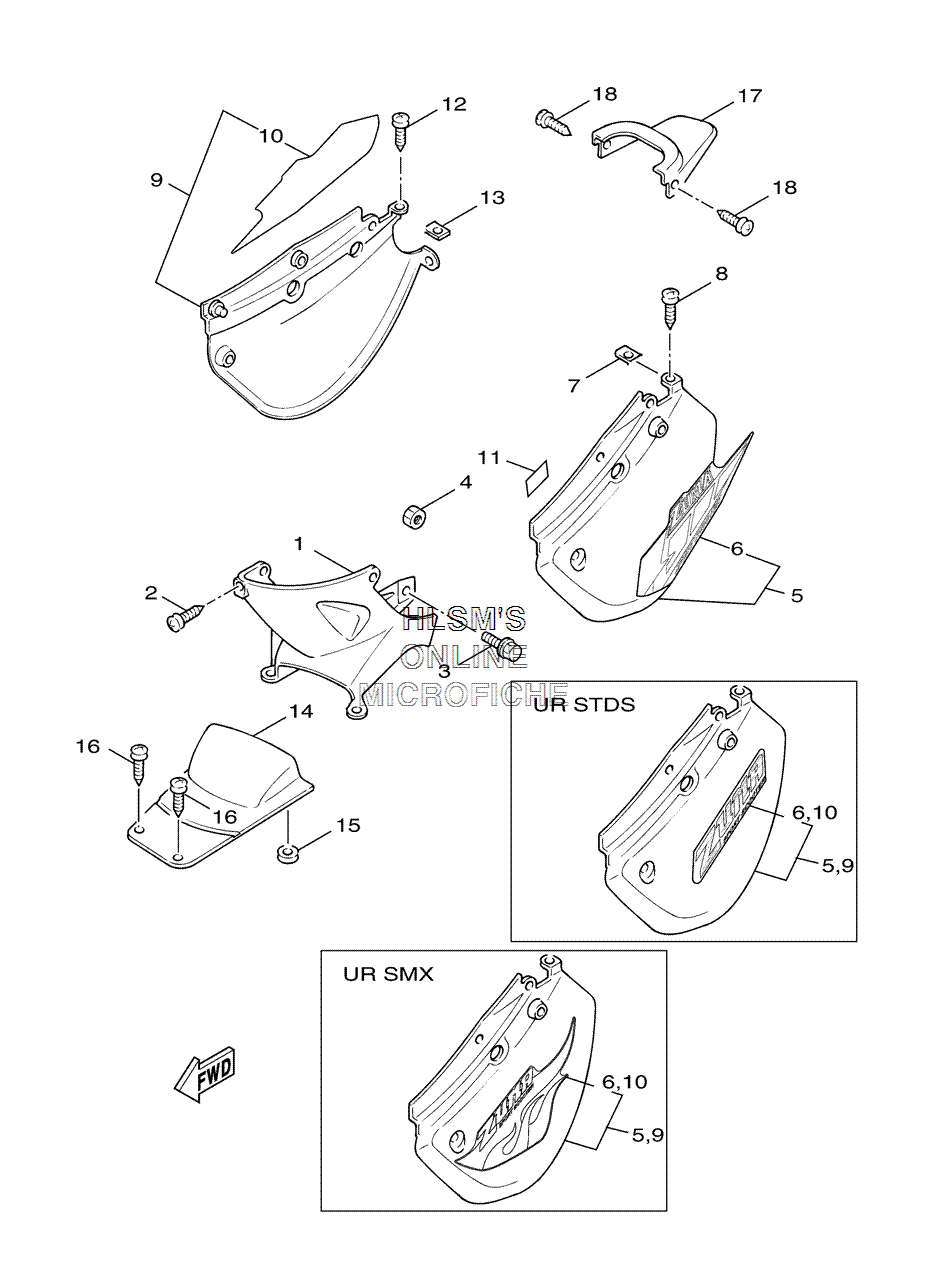

SIDE COVER для Yamaha ZUMA - 2005 года выпуска`
-
№АртикулНазвание
-
14VP-F1711-00-00 COVER, SIDE 1COVER, SIDE 1
-
297707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
390159-06822-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
42GF-F1535-00-00 NUT 1NUT 1
-
54VP-X2172-00-P8 COVER, SIDE 2 (SMX)COVER, SIDE 2 (SMX)
-
54VP-X2172-A0-P0 COVER, SIDE 2 (DPBMC)COVER, SIDE 2 (DPBMC)
-
54VP-X2172-10-WL COVER, SIDE 2 (STD) (OPT)COVER, SIDE 2 (STD) (OPT)
-
65PJ-F1799-00-00 ...GRAPHIC (STD) (OPT)...GRAPHIC (STD) (OPT)
-
65PJ-F179L-00-00 ...GRAPHIC 9 (SMX)...GRAPHIC 9 (SMX)
-
65PJ-F179J-00-00 ......GRAPHIC 7 (DPBMC)......GRAPHIC 7 (DPBMC)
-
790183-05807-00 NUT, SPRINGNUT, SPRING
-
897707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
94VP-X2173-00-P8 COVER, SIDE 3 (SMX)COVER, SIDE 3 (SMX)
-
94VP-X2173-A0-P0 COVER, SIDE 3 (DPBMC)COVER, SIDE 3 (DPBMC)
-
94VP-X2173-10-WL COVER, SIDE 3 (STDS)COVER, SIDE 3 (STDS)
-
105PJ-F1799-00-00 ...GRAPHIC (STDS)...GRAPHIC (STDS)
-
105PJ-F179K-00-00 ......GRAPHIC 8 (DPBMC)......GRAPHIC 8 (DPBMC)
-
105PJ-F179M-00-00 ...GRAPHIC 10 (SMX)...GRAPHIC 10 (SMX)
-
114JK-F8446-01-00 LABEL, CAUTIONLABEL, CAUTION
-
1297707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1390183-05807-00 NUT, SPRINGNUT, SPRING
-
144VP-F1741-00-00 COVER, SIDE 4COVER, SIDE 4
-
1590480-16278-00 GROMMETGROMMET
-
1697707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
174VP-F171E-00-P0 COVER, SIDE 5 (DPBMC)COVER, SIDE 5 (DPBMC)
-
174VP-F171E-00-P8 COVER, SIDE 5 (SMX)COVER, SIDE 5 (SMX)
-
174VP-F171E-00-WL COVER, SIDE 5 (STDS)COVER, SIDE 5 (STDS)
-
1897707-50012-00 SCREW, TAPPINGSCREW, TAPPING
