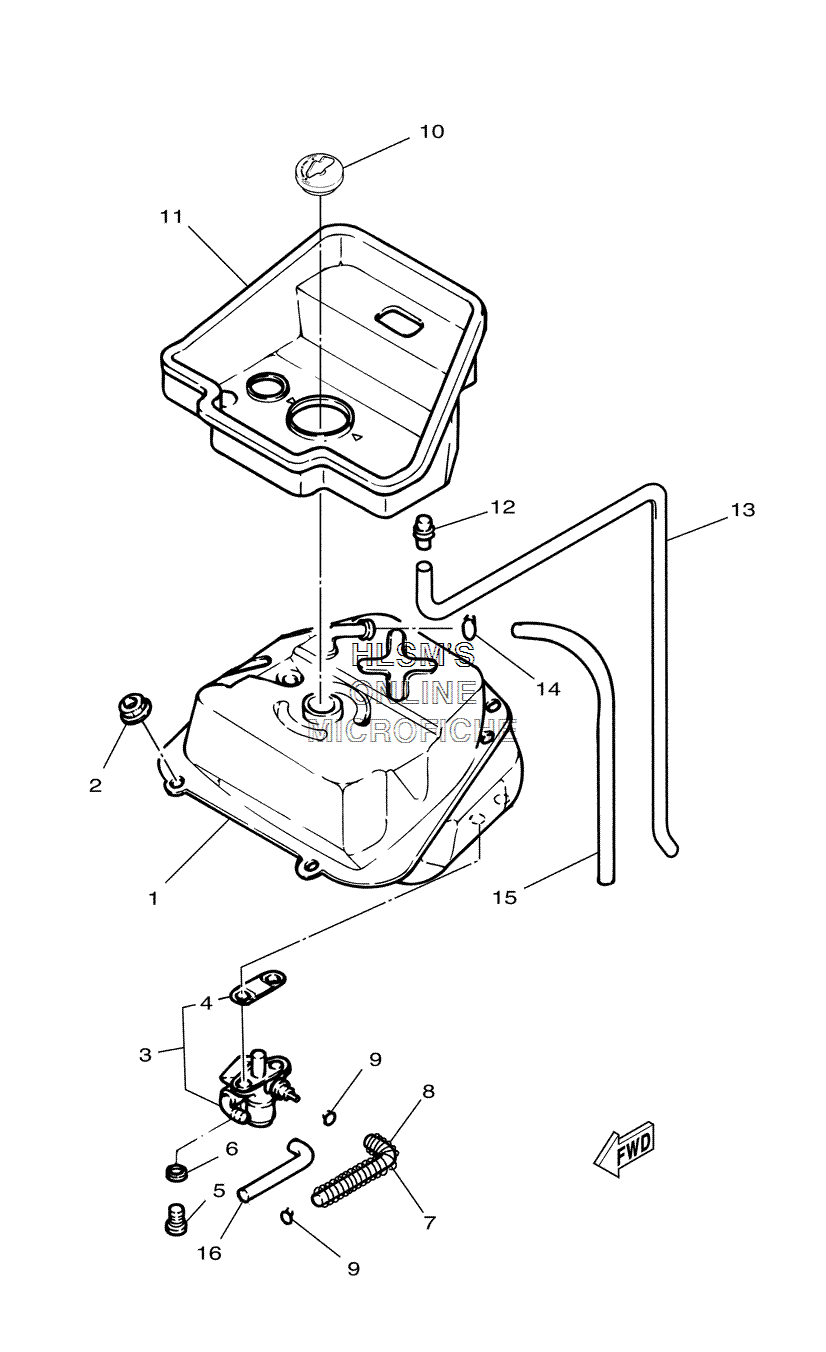

FUEL TANK ASSY. для Yamaha ZUMA - 2005 года выпуска`
-
№АртикулНазвание
-
15PJ-F4110-00-33 FUEL TANK COMP. (BLACK)FUEL TANK COMP. (BLACK)
-
295707-06500-00 NUT, FLANGENUT, FLANGE
-
34CW-F4500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
44CW-F452K-00-00 ...O-RING...O-RING
-
590149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
690202-05193-00 WASHER, PLATEWASHER, PLATE
-
74VP-F4311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
890501-08868-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
105PJ-F4610-00-00 CAP ASSYCAP ASSY
-
115PJ-F414A-00-00 COVER, FILLERCOVER, FILLER
-
124TE-F1753-00-00 BOSS, CONNECTORBOSS, CONNECTOR
-
1391A10-07056-00 TUBE, FLEXIBLETUBE, FLEXIBLE
-
1490467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
1590445-078A3-00 HOSE (L460)HOSE (L460)
-
1690445-105H0-00 HOSE (L615)HOSE (L615)
