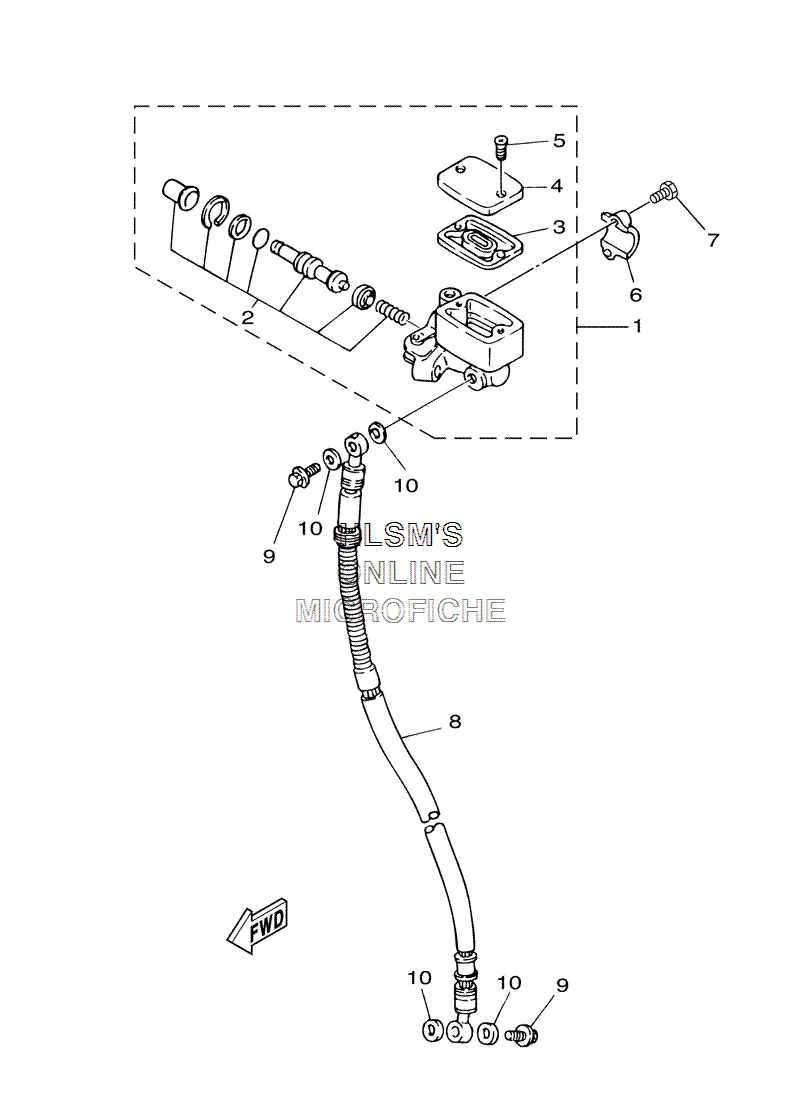

BRAKE - FRONT MASTER CYLINDER для Yamaha ZUMA - 2005 года выпуска`
-
№АртикулНазвание
-
14JL-F5870-02-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
23GF-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
33GF-F5854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
43GF-F5852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
598706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
63GF-F5867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
791317-06025-00 BOLTBOLT
-
85PJ-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
990401-10805-00 BOLT, UNIONBOLT, UNION
-
1090201-10118-00 WASHER, PLATEWASHER, PLATE
