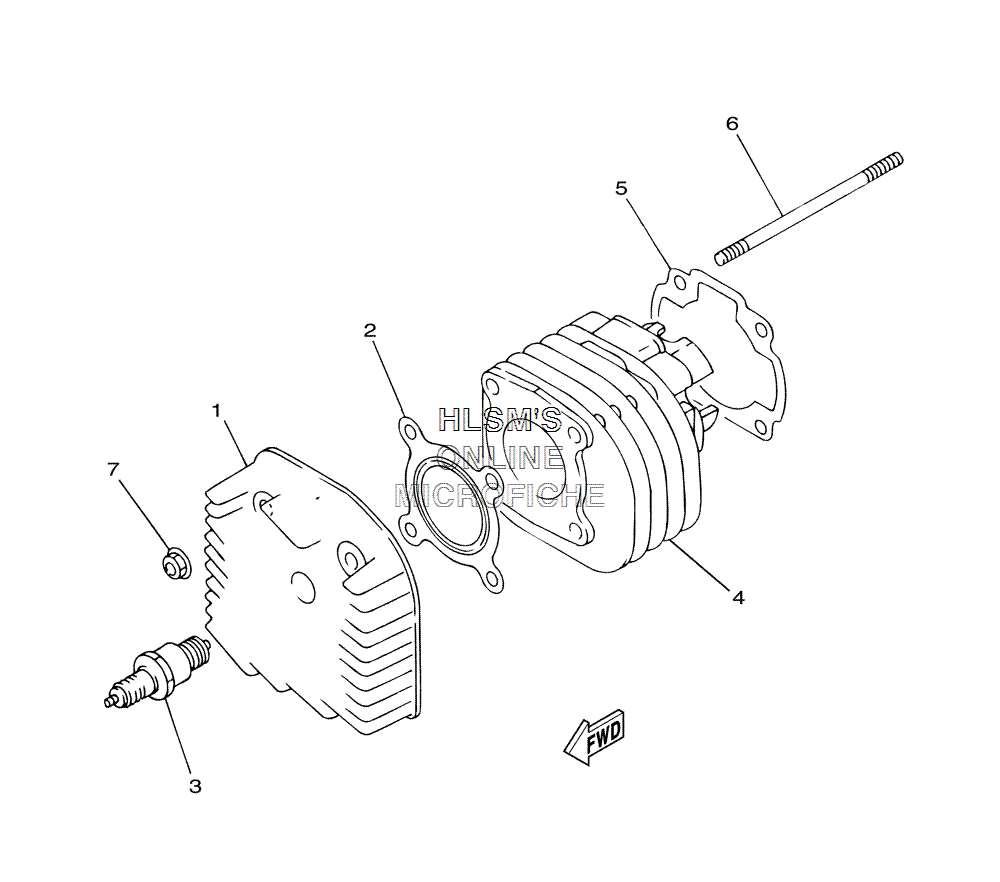

CYLINDER W/ HEAD ASSY. для Yamaha ZUMA - 2005 года выпуска`
-
№АртикулНазвание
-
14DY-E1111-01-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
24NG-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
394700-00836-00 PLUG, SPARK (NGK BPR7HS)PLUG, SPARK (NGK BPR7HS)
-
44WX-E1311-00-00 CYLINDER 1CYLINDER 1
-
54SC-E1351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
690116-07827-00 BOLT, STUDBOLT, STUD
-
790179-07381-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
