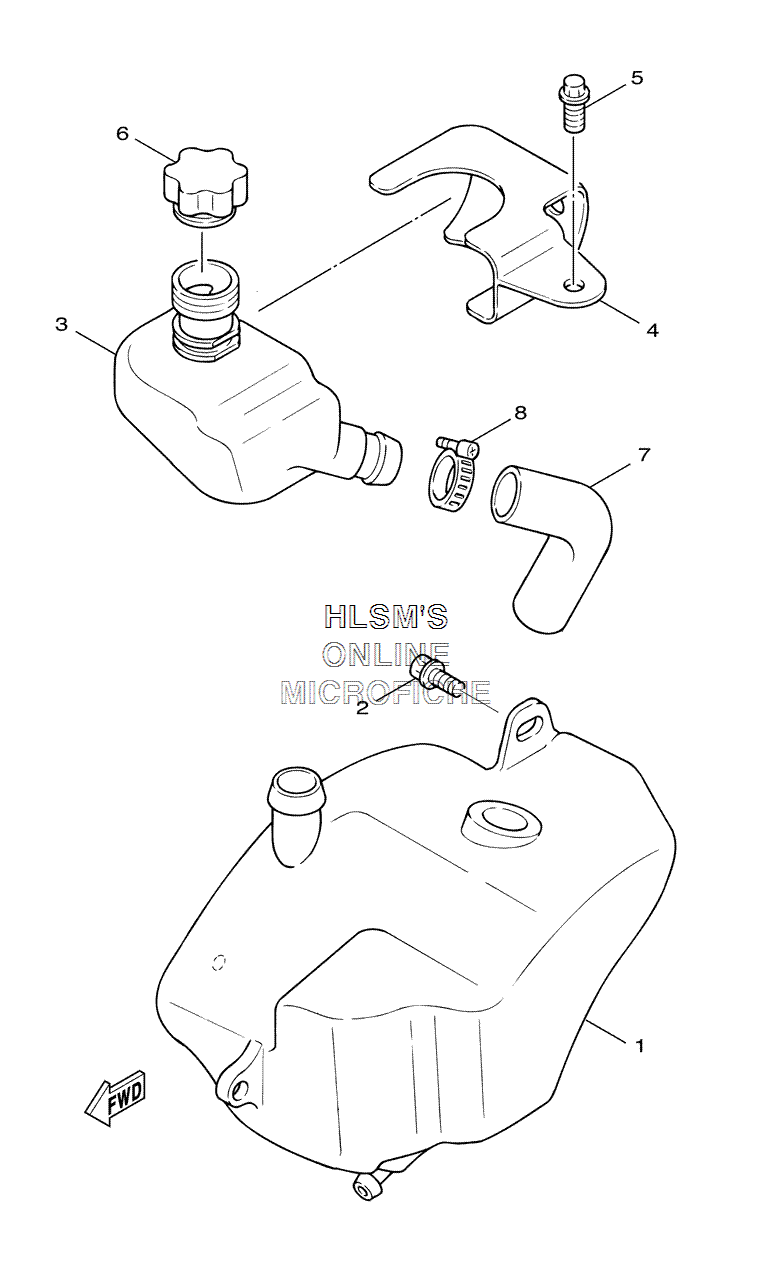

OIL TANK для Yamaha ZUMA - 2005 года выпуска`
-
№АртикулНазвание
-
14VP-F1751-00-00 TANK, OILTANK, OIL
-
290119-06802-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
35PJ-F1733-00-00 SUB TANK, OILSUB TANK, OIL
-
44VP-F1734-00-00 HOLDER, OIL SUB TANKHOLDER, OIL SUB TANK
-
597507-05510-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
63BN-21770-01-00 OIL TANK CAP ASSYOIL TANK CAP ASSY
-
74VP-F1745-00-00 PIPE, OIL TANK BREATHERPIPE, OIL TANK BREATHER
-
890460-27815-00 CLAMP, HOSECLAMP, HOSE
