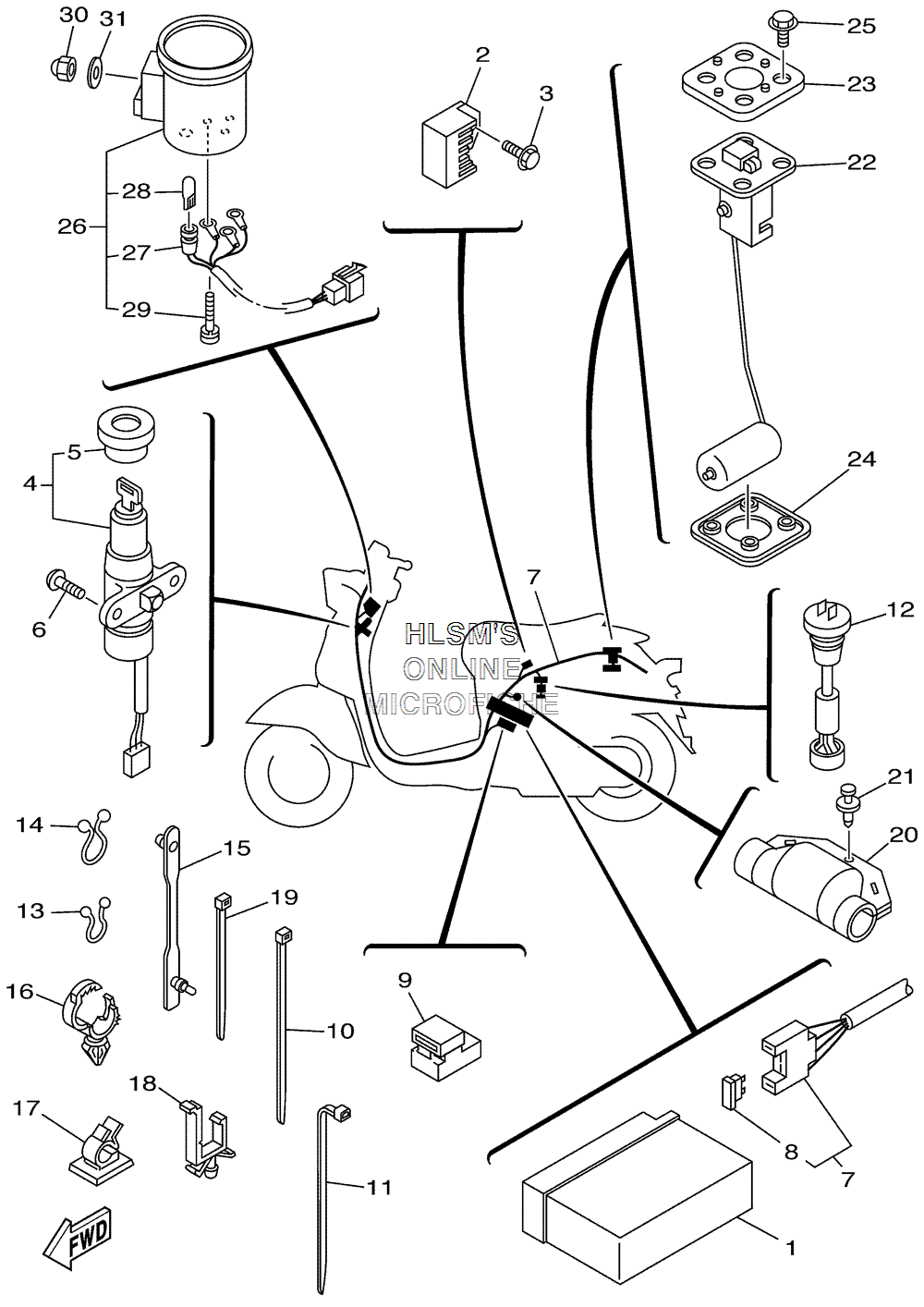

ELECTRICAL 2 для Yamaha VINO - 2001 года выпуска`
-
№АртикулНазвание
-
14JS-82100-01-00 BATTERY ASSY (GT4B-5 GS)BATTERY ASSY (GT4B-5 GS)
-
23LA-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
395027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
45LY-82501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
55AU-82552-00-00 ...CAP, SWITCH...CAP, SWITCH
-
690149-06250-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
75LY-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
83YJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
927V-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1090465-13152-00 CLAMPCLAMP
-
1190460-15126-00 CLAMP, HOSECLAMP, HOSE
-
1253L-85720-02-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
1390465-18147-00 CLAMPCLAMP
-
1490464-16039-00 CLAMPCLAMP
-
1590464-07121-00 CLAMPCLAMP
-
1690464-20181-00 CLAMPCLAMP
-
1790464-25160-00 CLAMPCLAMP
-
1890464-16021-00 CLAMPCLAMP
-
195Y9-12491-00-00 CLAMP 1CLAMP 1
-
205KN-8252U-00-00 COVERCOVER
-
2190269-06081-00 RIVETRIVET
-
224JP-85752-10-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
232JG-85757-00-00 RETAINERRETAINER
-
244US-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
2590119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
265AU-85750-10-00 FUEL METER ASSYFUEL METER ASSY
-
275AU-83509-10-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
284NK-83517-00-00 ...BULB (12V-1.4W, T6.5)...BULB (12V-1.4W, T6.5)
-
2990159-03102-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
3090176-06055-00 NUT, CROWNNUT, CROWN
