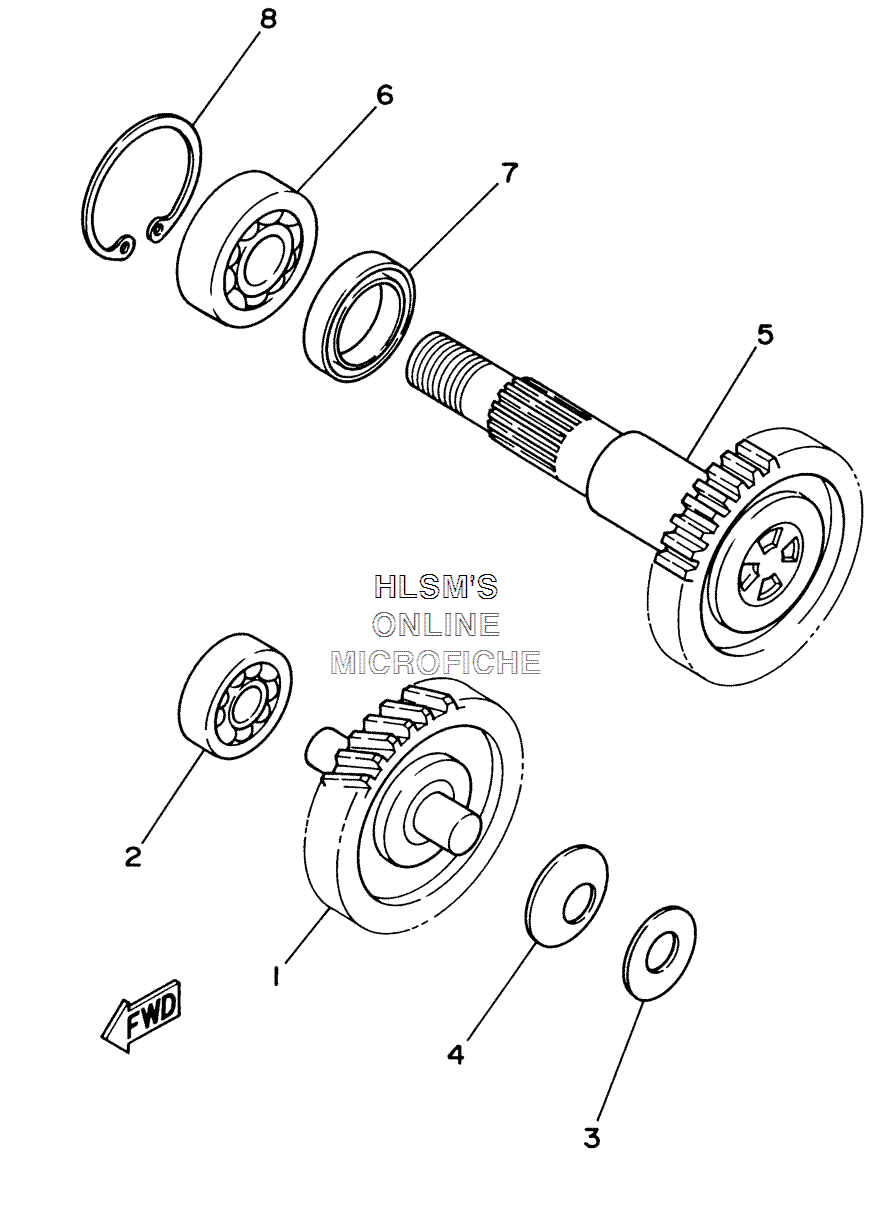

TRANSMISSION для Yamaha VINO - 2001 года выпуска
-
№АртикулНазвание
-
13RY-17410-10-00 MAIN AXLE COMPLETE (48/13T)MAIN AXLE COMPLETE (48/13T)
-
293306-20006-00 BEARING (B6200) NTNBEARING (B6200) NTN
-
390201-123K4-00 WASHER, PLATEWASHER, PLATE
-
490208-12049-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
54JP-17420-10-00 DRIVE AXLE ASSY (42T)DRIVE AXLE ASSY (42T)
-
693306-20314-00 BEARING (B6203)BEARING (B6203)
-
793102-22082-00 OIL SEALOIL SEAL
-
893420-40064-00 CIRCLIP, R-TYPECIRCLIP, R-TYPE
