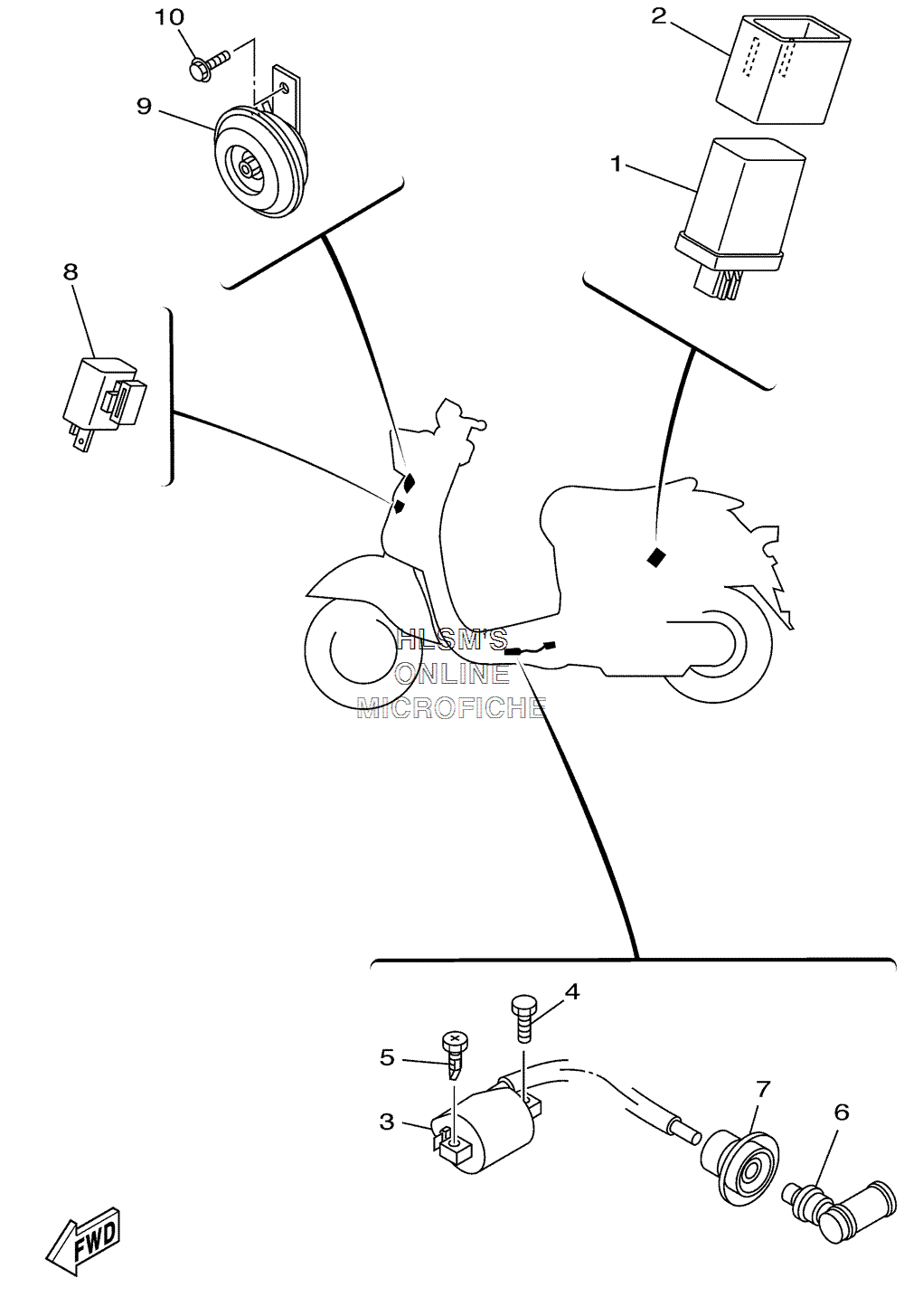

ELECTRICAL для Yamaha VINO - 2001 года выпуска`
-
№АртикулНазвание
-
15BM-85540-01-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
24SS-85546-01-00 BANDBAND
-
34JP-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
497007-06016-00 BOLT, HEXBOLT, HEX
-
590153-06034-00 SCREW, HEXAGONSCREW, HEXAGON
-
62VT-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
73KJ-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
829G-83350-20-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
94ML-83371-00-00 HORNHORN
-
1095027-06012-00 BOLT, FLANGEBOLT, FLANGE
