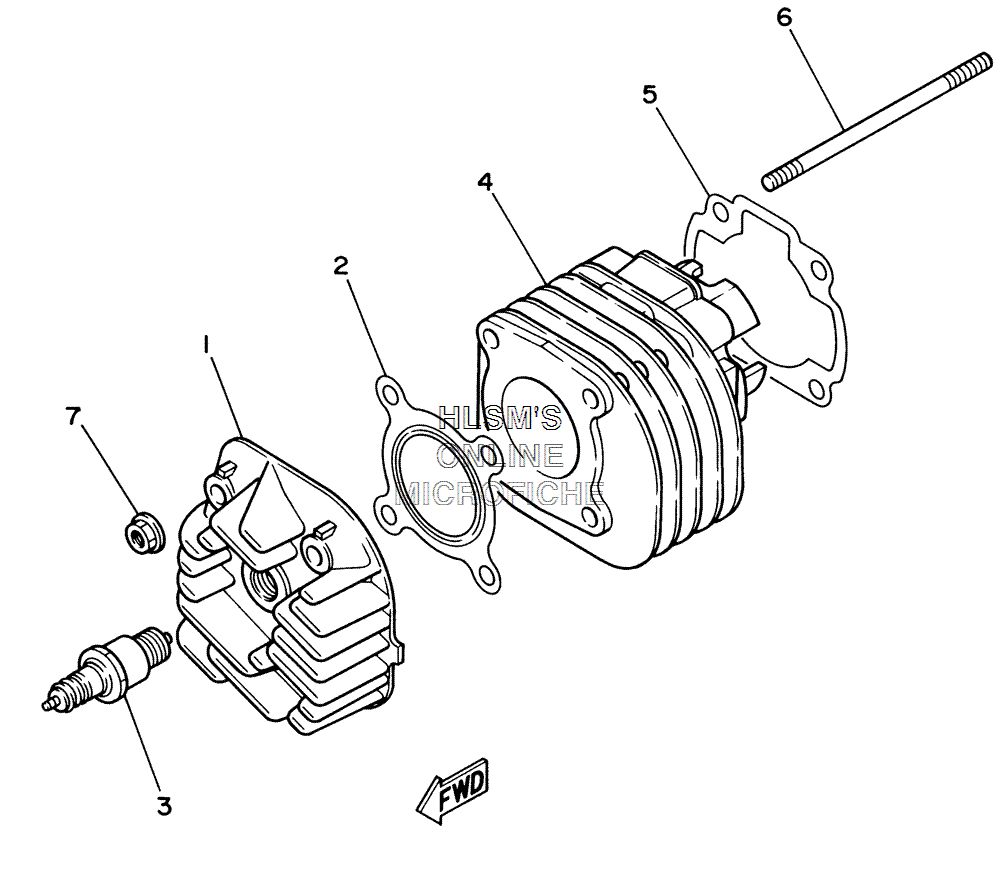

CYLINDER W/ HEAD ASSY. для Yamaha VINO - 2001 года выпуска
-
№АртикулНазвание
-
13YK-11111-00-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
23KJ-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
3NGK-BPR7H-S0-00 PLUG, SPARK (NGK BPR7HS)PLUG, SPARK (NGK BPR7HS)
-
44JP-11311-00-00 CYLINDER 1CYLINDER 1
-
54FB-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
690116-07353-00 BOLT, STUDBOLT, STUD
-
790179-07381-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
