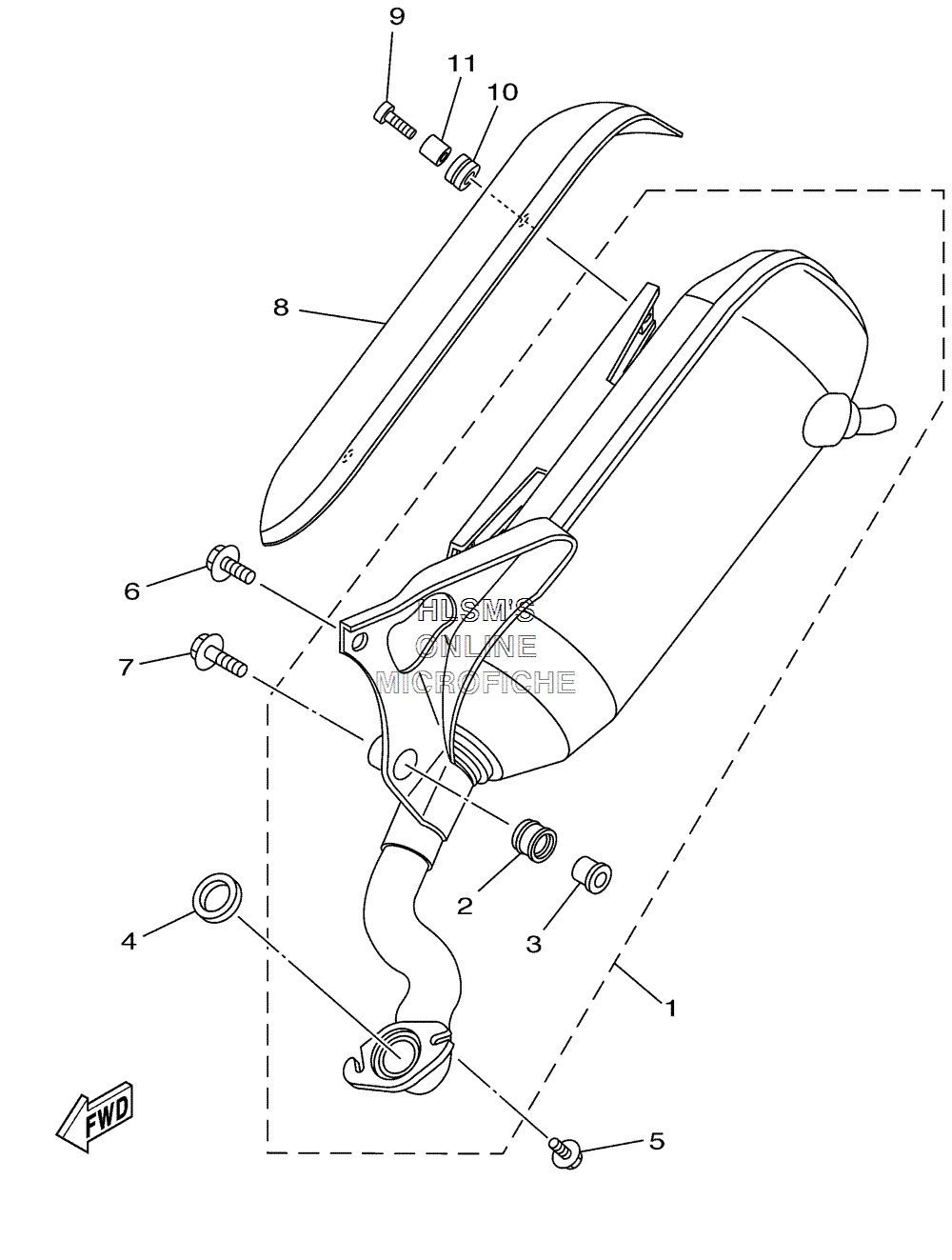

EXHAUST ASSY. для Yamaha VINO - 2001 года выпуска`
-
№АртикулНазвание
-
15LY-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
23YK-14445-00-00 ...GROMMET...GROMMET
-
33YK-14779-00-00 ...COLLAR...COLLAR
-
44KN-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
590153-06061-00 SCREW, HEXAGONSCREW, HEXAGON
-
695817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
795817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
85GD-14708-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
998907-06016-00 SCREW, BINDSCREW, BIND
-
1090480-12581-00 GROMMETGROMMET
-
1190387-06023-00 COLLARCOLLAR
