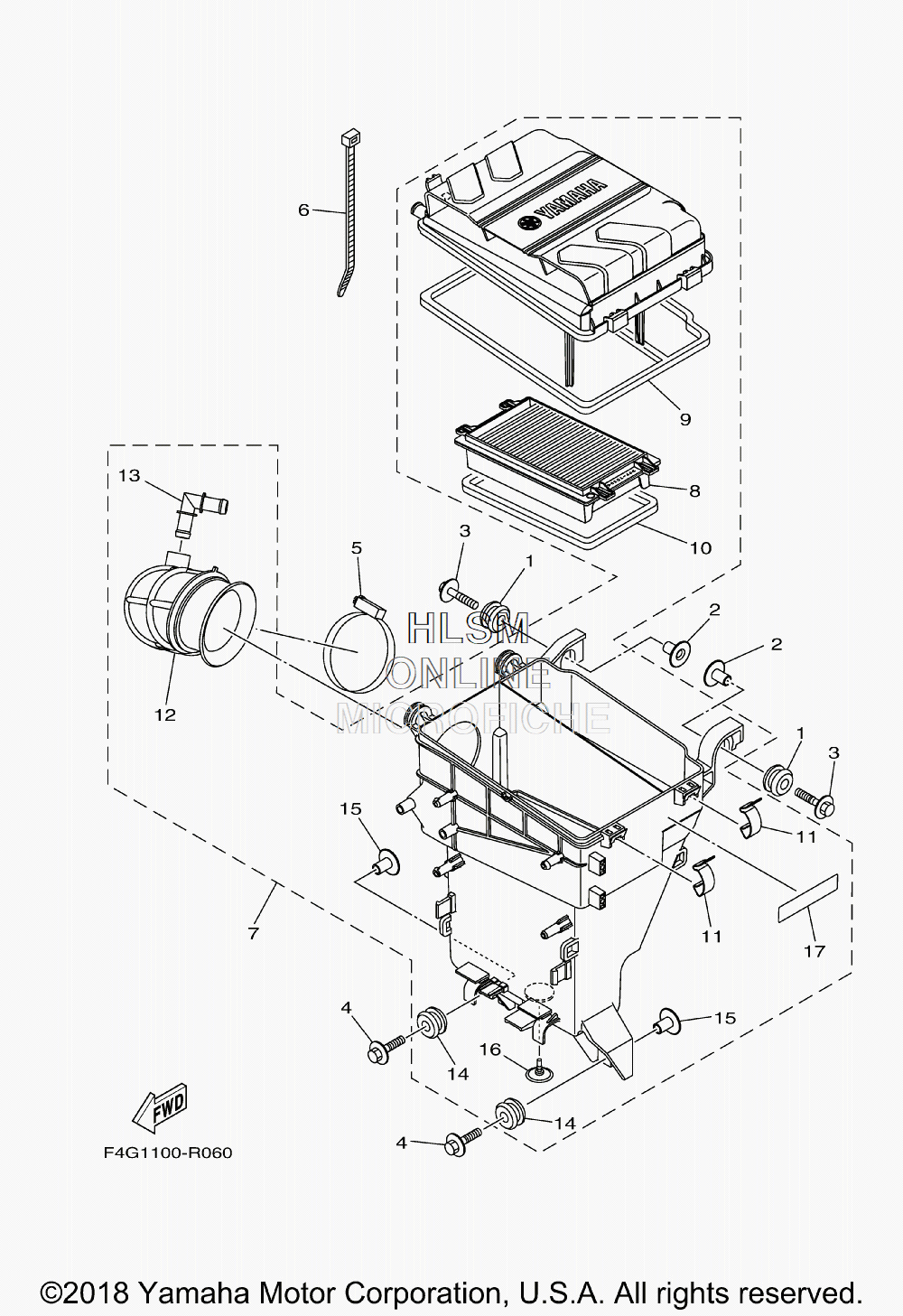

SUPER CHARGER ASSY для Yamaha EX DELUXE - 2018 года выпуска`
-
№АртикулНазвание
-
190480-22M15-00 GROMMETGROMMET
-
290387-08M37-00 COLLARCOLLAR
-
390119-08169-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590450-90002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
690465-13M18-00 CLAMPCLAMP
-
76EY-14410-00-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
86EY-14451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
96EY-14462-00-00 ...SEAL...SEAL
-
106EY-14452-00-00 ...SEAL...SEAL
-
116EY-14436-00-00 ...HOOK...HOOK
-
126EY-14419-00-00 ...PIPE...PIPE
-
136EY-14485-00-00 ...PIPE, JOINT...PIPE, JOINT
-
1490480-22M15-00 ...GROMMET...GROMMET
-
1590387-08M37-00 ...COLLAR...COLLAR
-
166EY-14470-00-00 ...VALVE...VALVE
-
1760E-83627-00-00 ...LABEL, CAUTION 7...LABEL, CAUTION 7
