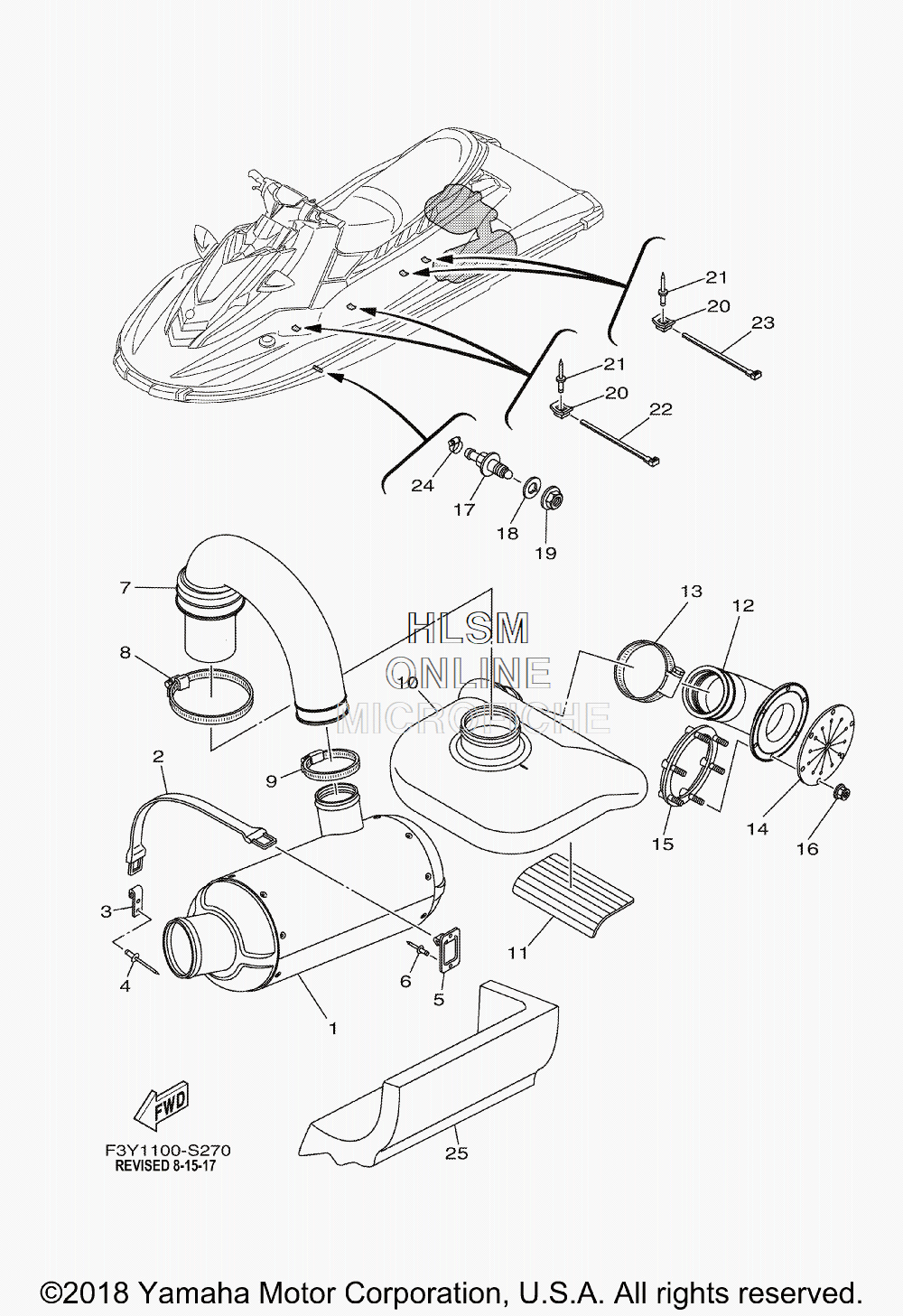

EXHAUST - WATER BOX для Yamaha EX DELUXE - 2018 года выпуска`
-
№АртикулНазвание
-
1F3Y-U7550-01-00 WATER LOCK COMP.WATER LOCK COMP.
-
2EU0-U821D-00-00 BAND,BATTERY 1BAND,BATTERY 1
-
3GA7-65772-00-00 HOOK AHOOK A
-
490267-489U1-00 RIVET,BLINDRIVET,BLIND
-
5F1K-U5772-04-00 HOOK AHOOK A
-
690267-489U1-00 RIVET,BLINDRIVET,BLIND
-
7F3Y-U7555-00-00 HOSE, EXHAUSTHOSE, EXHAUST
-
890601-179U8-00 BAND, HOSE 79BAND, HOSE 79
-
990450-99804-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
10F3Y-U4261-00-00 TANK, WATERTANK, WATER
-
11F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
12F3Y-U758D-00-00 HOSE,EXHAUST 3HOSE,EXHAUST 3
-
1390601-179U8-00 BAND, HOSE 79BAND, HOSE 79
-
14F1B-U751G-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
15F1S-U757B-01-00 PLATEPLATE
-
16F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
17F2C-U753B-01-00 PILOT, WATERPILOT, WATER
-
18F2C-U7564-00-00 GASKETGASKET
-
19F2C-U2733-00-00 NUTNUT
-
20F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2190267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2290464-32801-00 CLAMPCLAMP
-
2390601-200U2-00 BANDBAND
-
2490467-17802-00 CLIPCLIP
-
25F3Y-U892F-00-00 FLOATATION, BASE 1FLOATATION, BASE 1
Все узлы модели:
- AIR SILENCER W/ INTAKE
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- • EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- SUPER CHARGER ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
