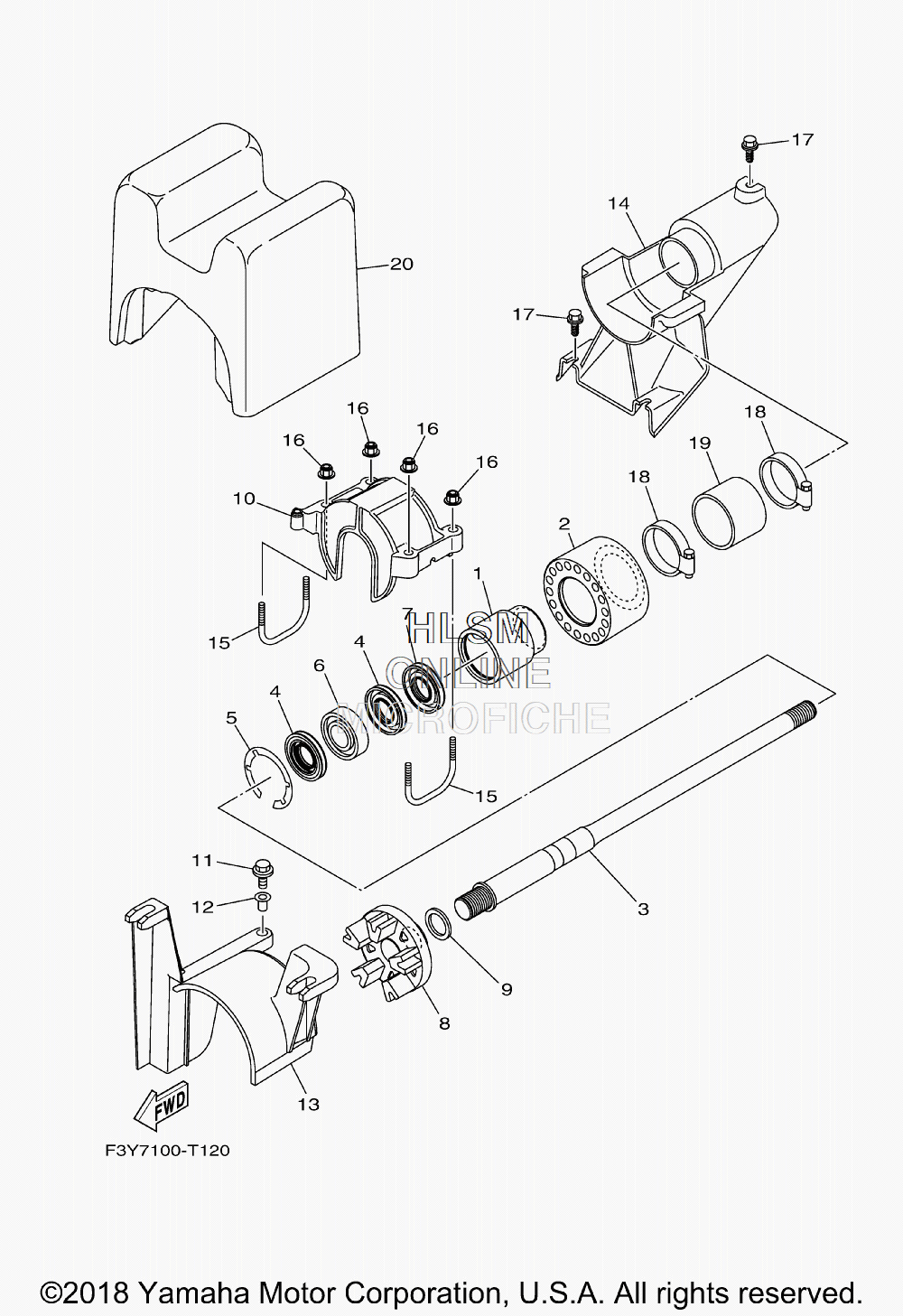

PROPULSION SYSTEM - INTERNAL для Yamaha EX DELUXE - 2018 года выпуска`
-
№АртикулНазвание
-
16GA-G5332-00-00 HOUSING, BEARINGHOUSING, BEARING
-
26GA-G5235-00-00 DAMPERDAMPER
-
36GA-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
493101-25M55-00 OIL SEALOIL SEAL
-
599009-52500-00 CIRCLIPCIRCLIP
-
693306-205XG-00 BEARINGBEARING
-
793101-25M56-00 OIL SEALOIL SEAL
-
86GA-G5593-00-00 FLANGE, COUPLING 1FLANGE, COUPLING 1
-
990201-24800-00 WASHER, PLATEWASHER, PLATE
-
10F3Y-U2155-01-00 CAPCAP
-
1190119-06891-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290387-06289-00 COLLARCOLLAR
-
136GA-R1381-00-00 COVERCOVER
-
14F3Y-U883E-00-00 JOINT, PIPEJOINT, PIPE
-
15F3Y-U3746-00-00 BOLT, LOCKBOLT, LOCK
-
16F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
1790109-06832-00 BOLTBOLT
-
1890601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
19F3Y-U883B-00-00 PIPE 1PIPE 1
-
20F3Y-U892D-00-00 FLOTATION, STERN RHFLOTATION, STERN RH
