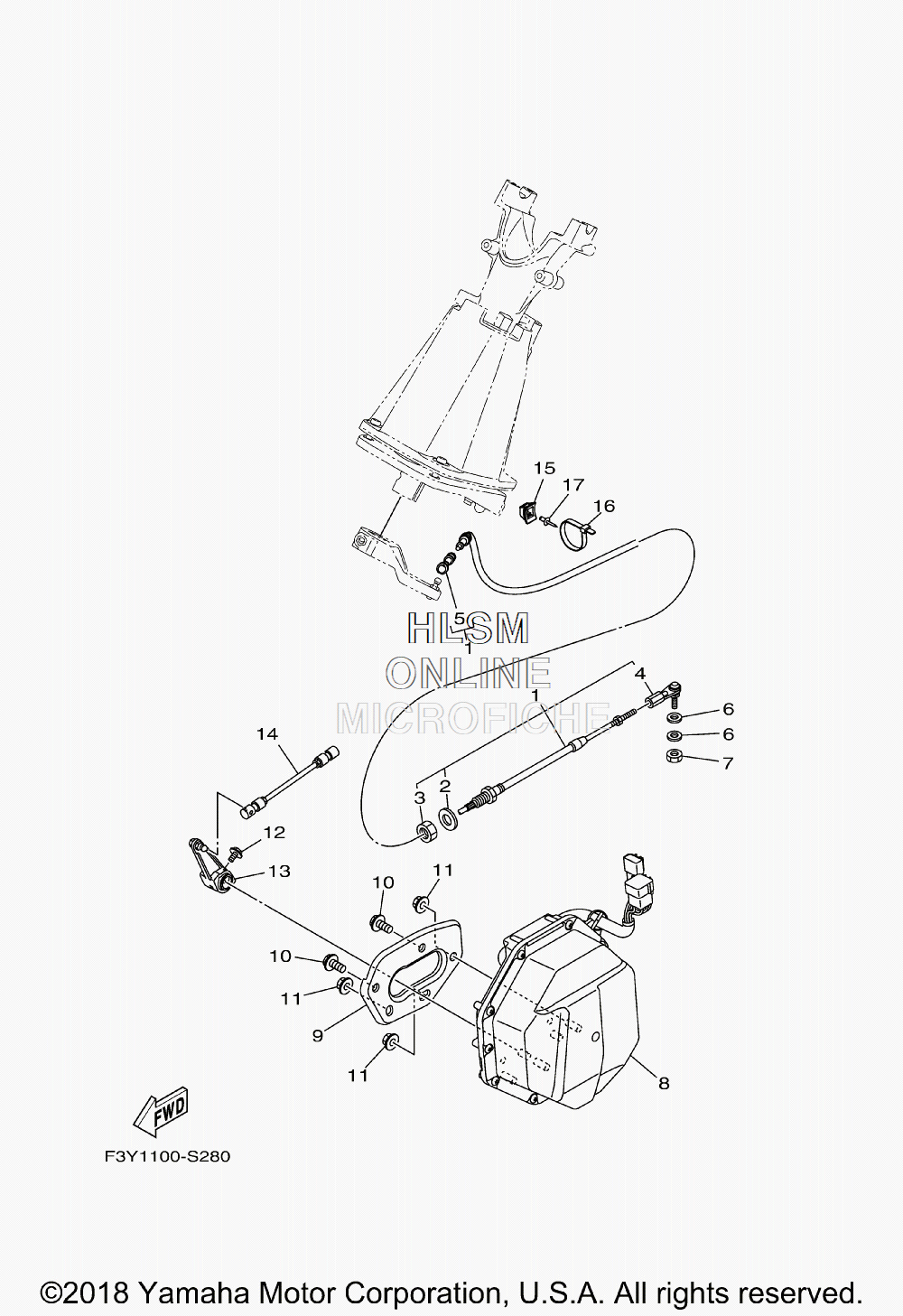

CONTROL CABLES для Yamaha EX DELUXE - 2018 года выпуска`
-
№АртикулНазвание
-
1F3Y-61481-00-00 CABLE, STEERINGCABLE, STEERING
-
2F1B-61438-00-00 ...PACKING C...PACKING C
-
3F1B-6151S-00-00 ...NUT...NUT
-
4F3Y-61461-00-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
5F3Y-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
690201-06906-00 WASHER, PLATEWASHER, PLATE
-
79538R-06700-00 NUTNUT
-
8F3Y-6140B-00-00 MOTOR ASSY.MOTOR ASSY.
-
9F3Y-U8285-00-00 PLATEPLATE
-
1090119-08851-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
11F3Y-U142L-00-00 NUT, LOCKNUT, LOCK
-
1290119-06893-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
13F3Y-6150F-00-00 SHIFT ARM ASSYSHIFT ARM ASSY
-
14F3Y-6150D-00-00 ROD ASSY 2ROD ASSY 2
-
15F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1690464-32801-00 CLAMPCLAMP
-
1790267-489U6-00 RIVET, BLINDRIVET, BLIND
