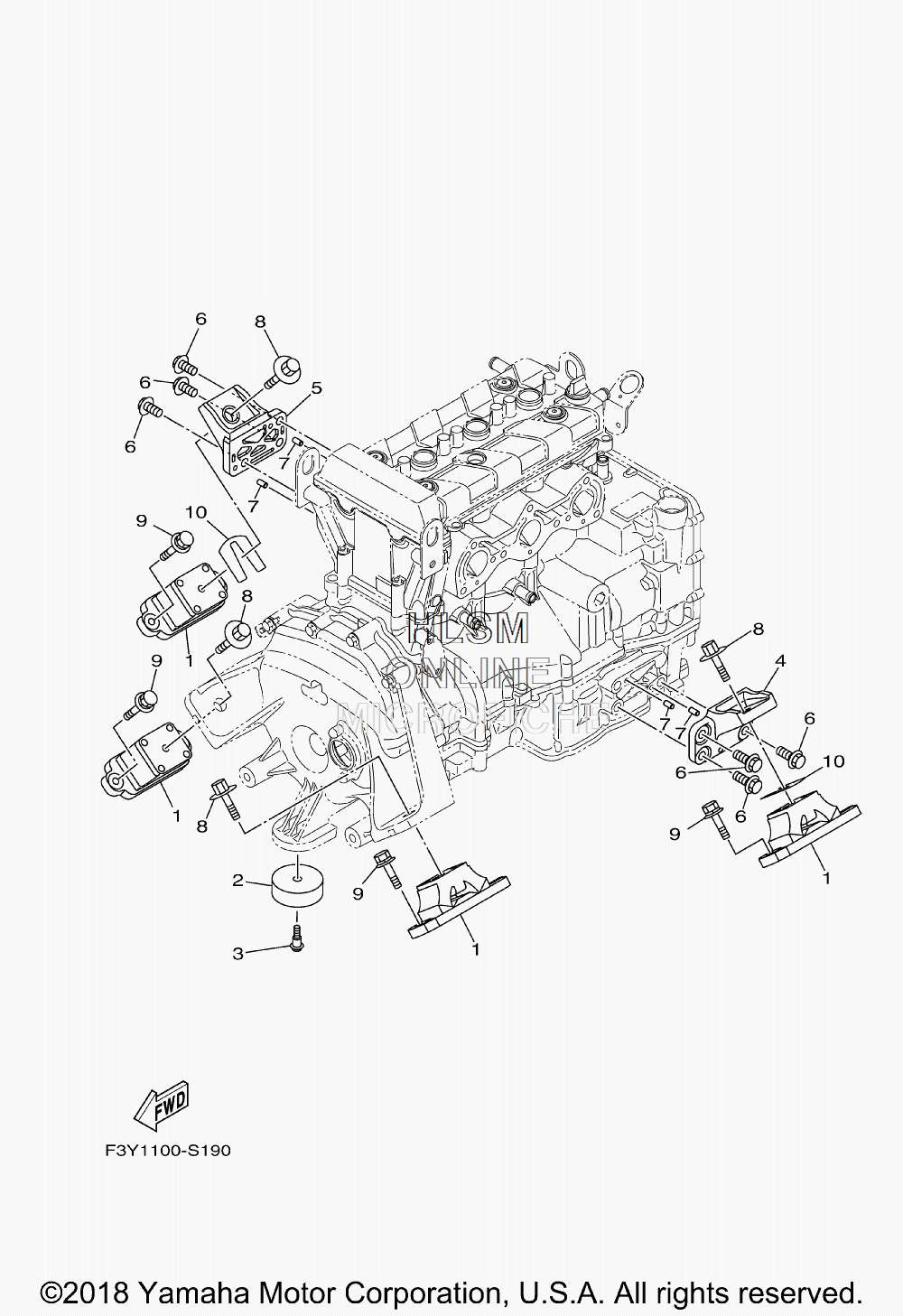

ENGINE MOUNTS для Yamaha EX DELUXE - 2018 года выпуска

№

Артикул

Название
1

6GA-44517-00-00 MOUNT RUBBER

MOUNT RUBBER
2

6EY-44574-00-00 STOPPER, LOWER MOUNT RUBBER

STOPPER, LOWER MOUNT RUBBER
3

90109-06M92-00 BOLT

BOLT
4

6EY-41661-00-00 BRACKET 1

BRACKET 1
5

6EY-41662-00-00 BRACKET 2

BRACKET 2
6

90105-10M49-00 BOLT, FLANGE

BOLT, FLANGE
7

93606-12019-00 PIN, DOWEL

PIN, DOWEL
8

90119-08859-00 BOLT, WITH WASHER

BOLT, WITH WASHER
9

90119-08823-00 BOLT, WITH WASHER

BOLT, WITH WASHER
10

EU0-U7354-00-05 SHIM (T=0.5)

SHIM (T=0.5)
10

EU0-U7354-00-01 SHIM (T=0.1)

SHIM (T=0.1)
10

EU0-U7354-00-20 SHIM (T=2.0)

SHIM (T=2.0)
10

EU0-U7354-00-10 SHIM (T=1.0)

SHIM (T=1.0)
10

EU0-U7354-00-03 SHIM (T=0.3)

SHIM (T=0.3)
