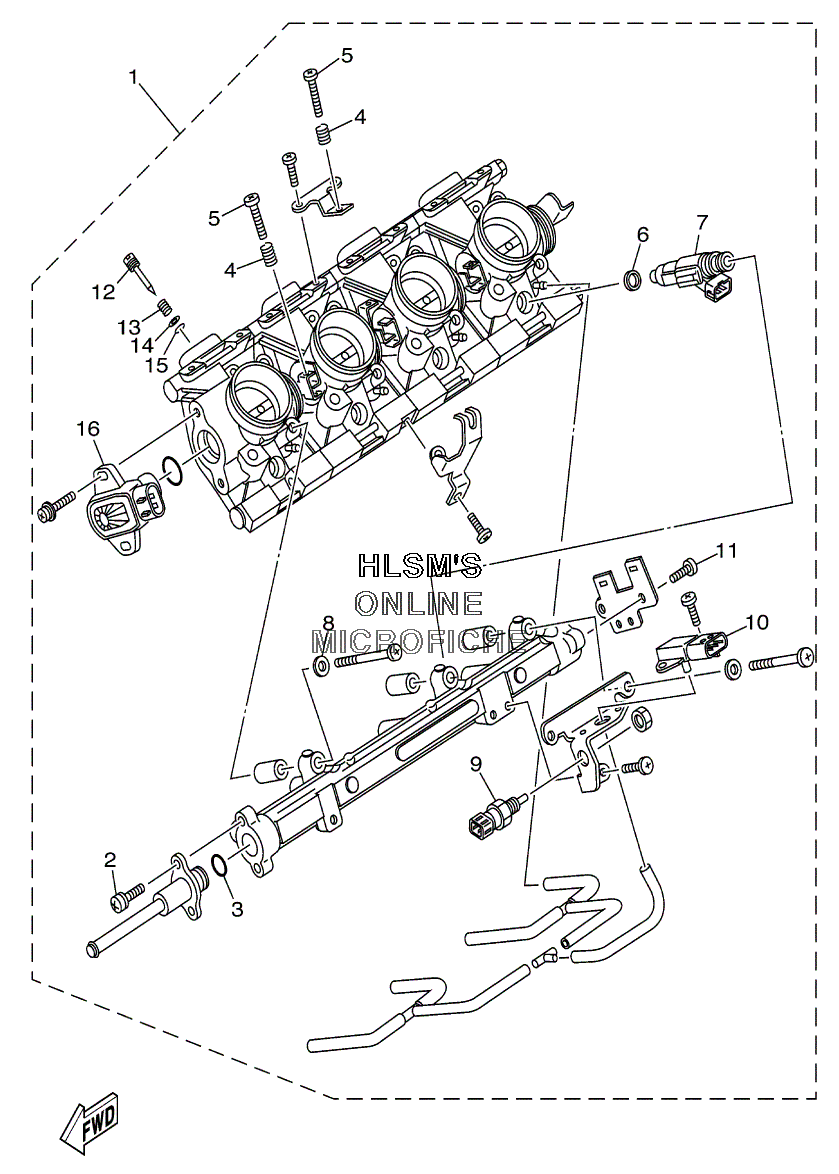

THROTTLE BODY ASSY. для Yamaha FX 140 A - 2002 года выпуска`
-
№АртикулНазвание
-
160E-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
268V-81147-00-00 ....SCREW 3....SCREW 3
-
368V-14397-00-00 ....O-RING....O-RING
-
43KW-14932-00-00 ....SPRING, THROTTLE 2....SPRING, THROTTLE 2
-
569J-14321-00-00 ....SCREW, THROTTLE....SCREW, THROTTLE
-
690430-09002-00 ....GASKET....GASKET
-
760E-13761-00-00 ....INJECTOR ASSY....INJECTOR ASSY
-
84XY-14951-00-00 ....WASHER....WASHER
-
965L-85886-00-00 ....THERMOSENSOR....THERMOSENSOR
-
1060E-82380-00-00 ....SENSOR, PRESSURE....SENSOR, PRESSURE
-
1197890-05008-00 ....SCREW, PAN HEAD....SCREW, PAN HEAD
-
124BH-14923-00-00 ....SCREW, PILOT....SCREW, PILOT
-
134BH-14134-00-00 ....SPRING, AIR ADJUSTING....SPRING, AIR ADJUSTING
-
143L5-14962-00-00 ....WASHER....WASHER
-
153H1-14147-00-00 ....O-RING....O-RING
-
1669J-85885-00-00 ....THROTTLE SENSOR ASSY....THROTTLE SENSOR ASSY
Все узлы модели:
- AIR SILENCER W/ INTAKE
- BILGE PUMP
- BUMBER W/ GUNWALE MAT
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD
- ELECTRICAL 1
- ELECTRICAL 2
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL PUMP
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT
- SIDE COVERS
- STARTING MOTOR
- • THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
