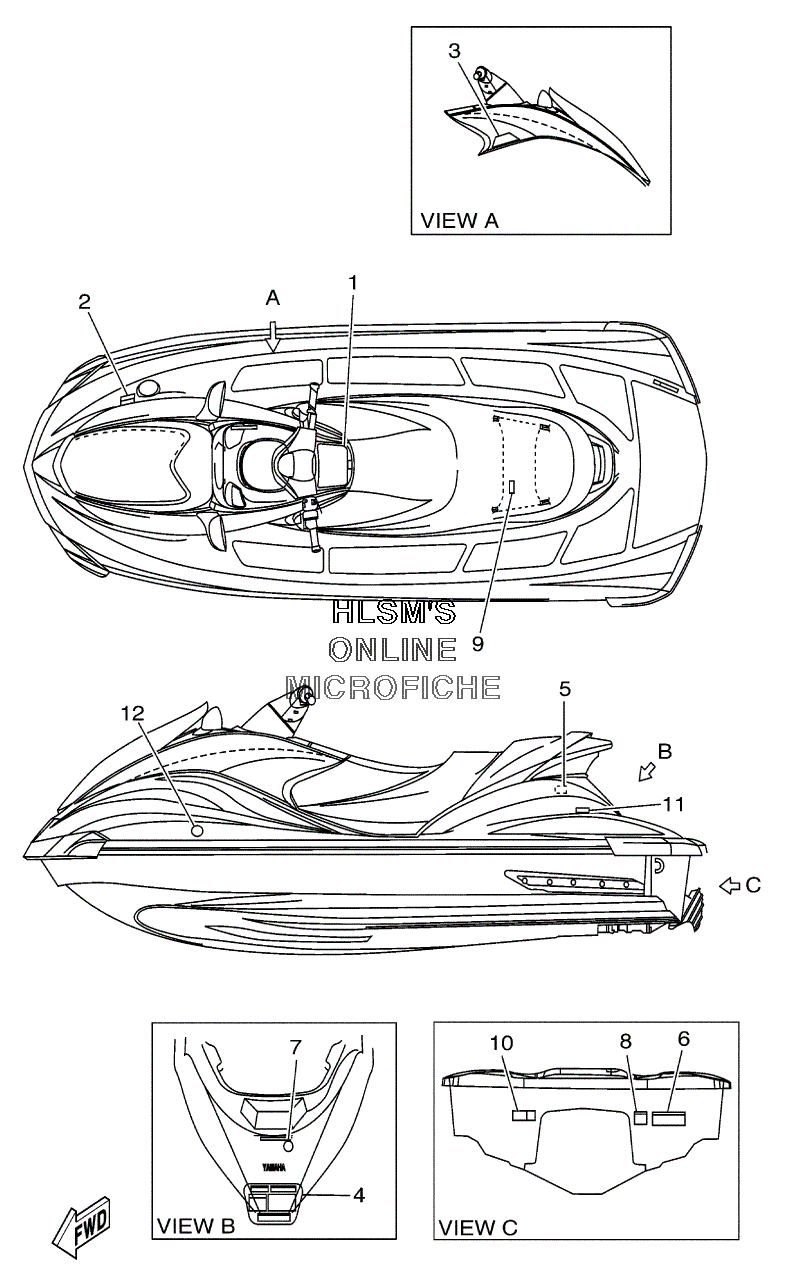

GRAPHICS - WARNING / CAUTION для Yamaha FX 140 A - 2002 года выпуска`
-
№АртикулНазвание
-
1F1B-U41B1-00-00 LABEL, WARNING JDC 1LABEL, WARNING JDC 1
-
2F1B-U415B-01-00 LABEL, WARNING(FUEL)LABEL, WARNING(FUEL)
-
3F0V-U41D5-20-00 LABEL, WARNING SHIFT LEVERLABEL, WARNING SHIFT LEVER
-
4F1B-U41E2-02-00 LABEL, SET 2LABEL, SET 2
-
5F0P-U418B-00-00 LABEL, CAUTION (RIGHT HAND INSIDE)LABEL, CAUTION (RIGHT HAND INSIDE)
-
6F0P-U418G-00-00 LABEL, CAUTIONLABEL, CAUTION
-
7F1B-U41F5-00-00 LABEL, FIRE EXTINGUISHER 1LABEL, FIRE EXTINGUISHER 1
-
8F0P-U416R-00-00 LABEL, WARNING (REVERSE)LABEL, WARNING (REVERSE)
-
9F1B-U41F3-00-00 LABEL, CAUTION OILLABEL, CAUTION OIL
-
10F0P-U41E1-10-00 LABEL, SET 1LABEL, SET 1
-
11F0P-U41G1-00-00 LABEL, CAPACITYLABEL, CAPACITY
-
12F1B-U413L-10-00 RABEL, STARMARK (CALIF ONLY)RABEL, STARMARK (CALIF ONLY)
