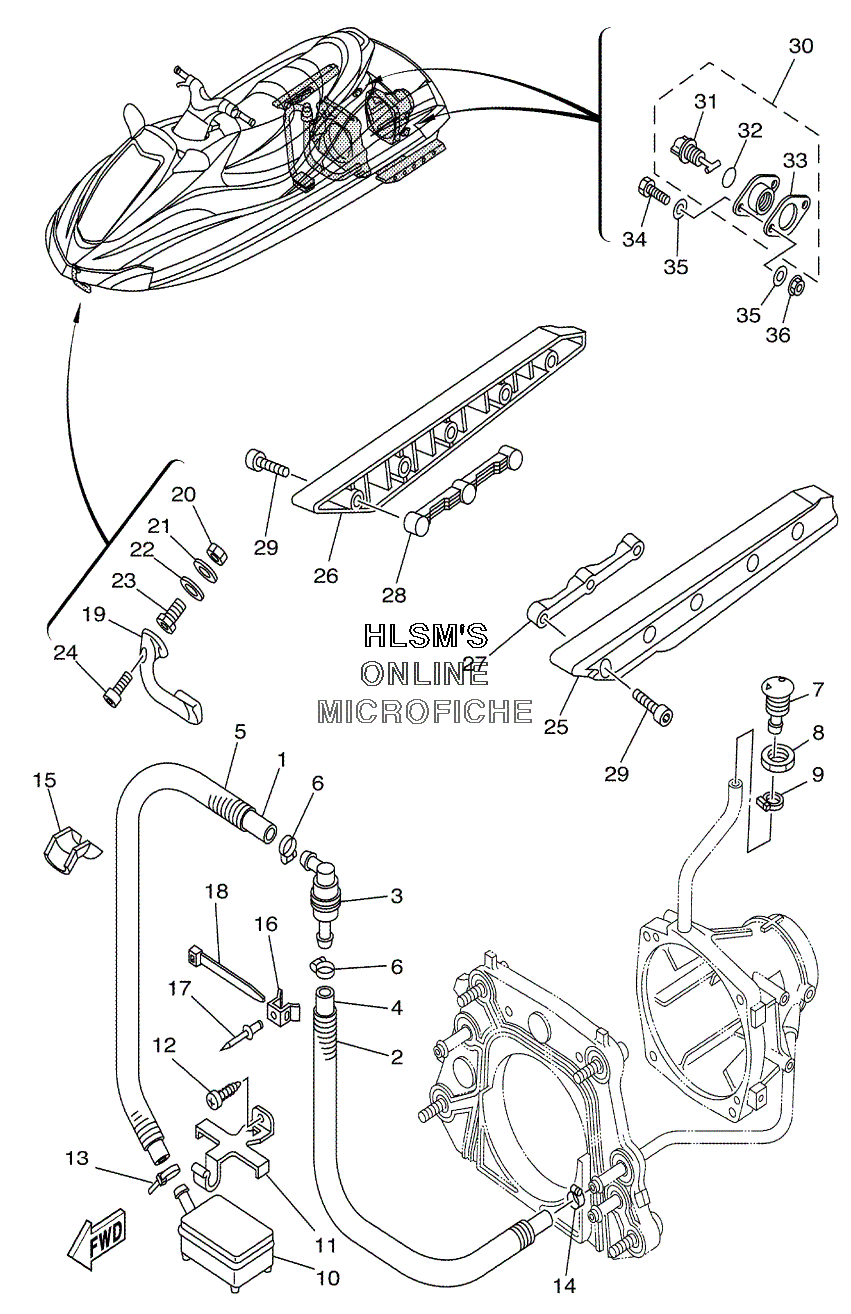

HULL FITTINGS W/ SPONSONS для Yamaha FX 140 A - 2002 года выпуска`
-
№АртикулНазвание
-
190445-198B6-00 HOSE (L860)HOSE (L860)
-
290446-27M73-00 HOSEHOSE
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-19896-00 HOSE (L500)HOSE (L500)
-
590446-27M55-00 HOSEHOSE
-
690601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
7FN8-6269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
10GD0-U761D-00-00 STRAINER, BILGESTRAINER, BILGE
-
11EW2-67618-00-00 BASE, STRAINER BLIGEBASE, STRAINER BLIGE
-
129778R-50112-00 SCREW, TAPPINGSCREW, TAPPING
-
1390601-200U1-00 BANDBAND
-
1490467-200A0-00 CLIPCLIP
-
15F1B-U7578-20-00 PACKING, HOSE 2PACKING, HOSE 2
-
1690600-917U4-00 CLAMP COMP.CLAMP COMP.
-
1790267-48802-00 RIVET, BLINDRIVET, BLIND
-
1890464-32801-00 CLAMPCLAMP
-
19F0X-61624-00-00 BOWEYE 1 (S)BOWEYE 1 (S)
-
2099780-12600-00 NUT.HEX.(COARS)NUT.HEX.(COARS)
-
2192990-12200-00 WASHER, PLAINWASHER, PLAIN
-
22F0X-61637-00-00 WASHERWASHER
-
23F0X-61652-00-00 NUTNUT
-
2490110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
25F1B-U883N-00-00 STABILIZER LHSTABILIZER LH
-
26F1B-U883P-00-00 STABILIZER RHSTABILIZER RH
-
27F1F-U883T-00-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
28F1B-U883T-00-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
29F1B-U1355-00-00 BOLTBOLT
-
30EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
31EU0-62282-00-00 ....PLUG, DRAIN....PLUG, DRAIN
-
32EU0-62283-00-00 ....O-RING....O-RING
-
33EU0-62285-01-00 ....PACKING DRAIN (EU0)....PACKING DRAIN (EU0)
-
349788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
359299R-05200-00 WASHERWASHER
-
369572R-05300-00 NUT, FLANGENUT, FLANGE
