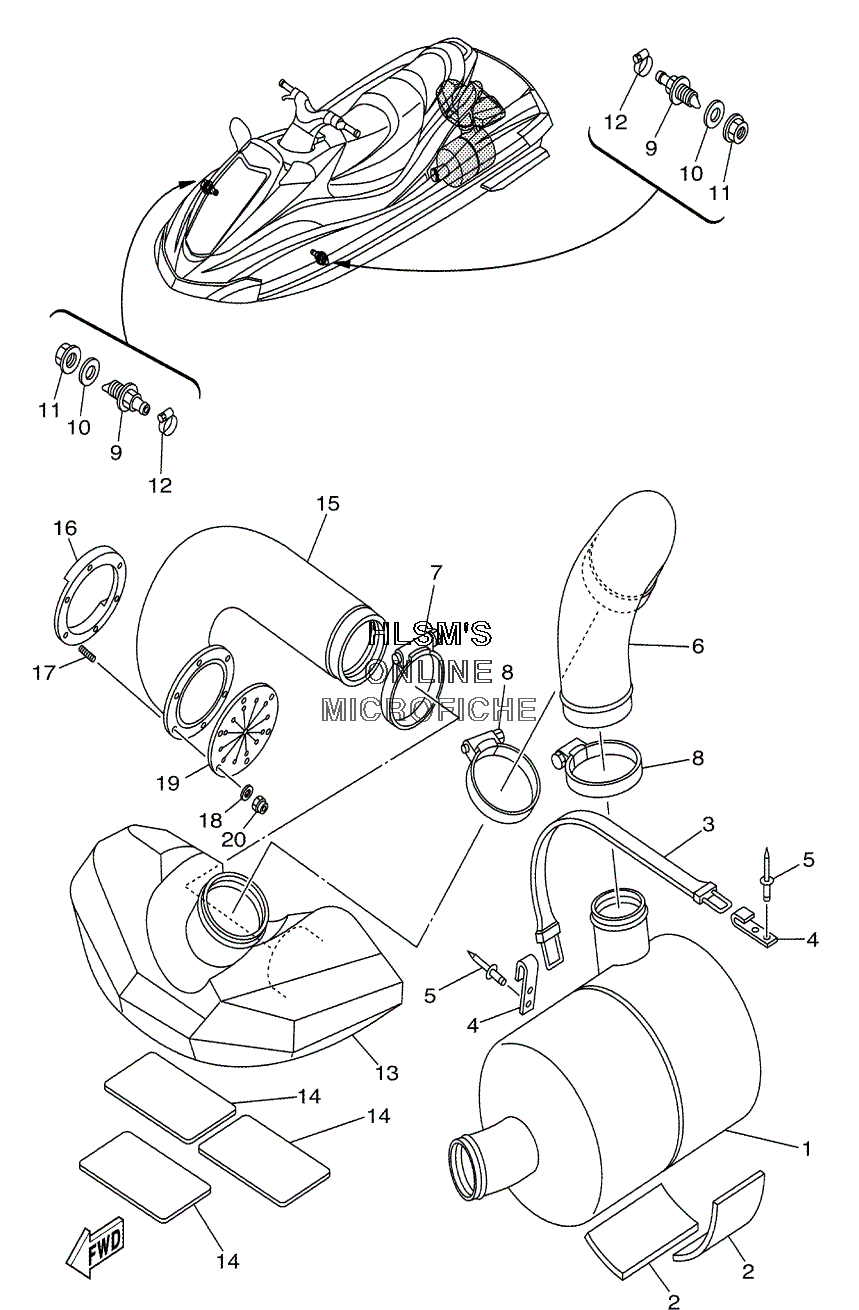

EXHAUST - WATER BOX для Yamaha FX 140 A - 2002 года выпуска`
-
№АртикулНазвание
-
1F1B-U7550-01-00 WATER LOCK COMP.WATER LOCK COMP.
-
2F1B-U755J-00-00 MAT,WATER LOCKMAT,WATER LOCK
-
3EW2-67821-00-00 BAND, FUEL TANKBAND, FUEL TANK
-
4GA7-65772-00-00 HOOK AHOOK A
-
590267-489U1-00 RIVET,BLINDRIVET,BLIND
-
6F1B-U7555-00-00 HOSE, EXHAUSTHOSE, EXHAUST
-
790601-195UD-00 BAND, HOSE 95BAND, HOSE 95
-
890450-99801-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
9F0P-6753B-00-00 PILOT, WATERPILOT, WATER
-
1090430-16910-00 GASKETGASKET
-
11F0X-62733-00-00 NUTNUT
-
1290601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
13F0X-64261-02-00 TANK, WATERTANK, WATER
-
14F0X-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
15F1B-U758D-00-00 HOSE,EXHAUST 3HOSE,EXHAUST 3
-
16F0V-U757B-00-00 PLATEPLATE
-
179568R-06325-00 BOLT, STUDBOLT, STUD
-
189299R-06200-00 WASHERWASHER
-
19F1B-U751G-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
209572R-06300-00 NUT, FLANGENUT, FLANGE
