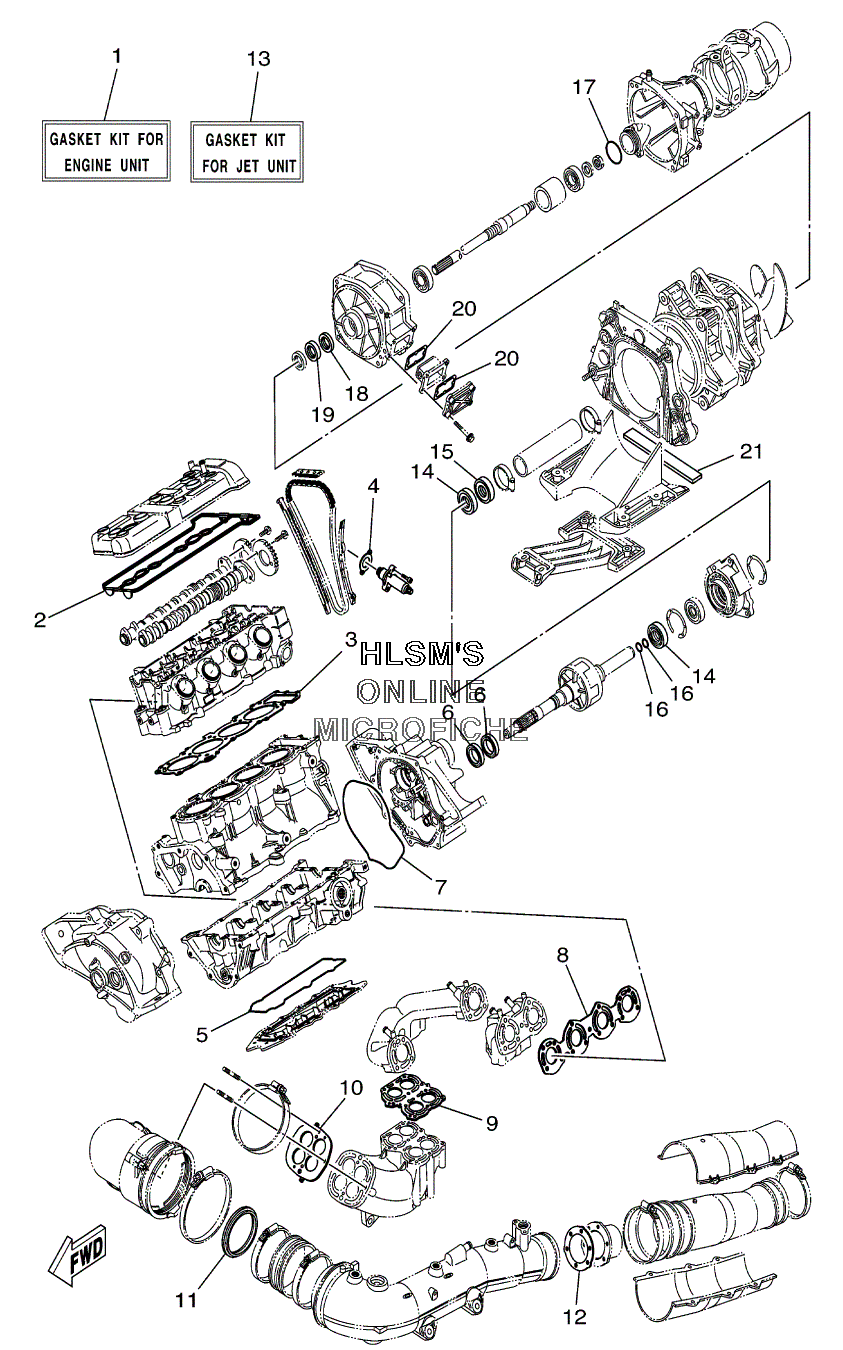

GASKET KIT - ENGINE AND JET UNIT для Yamaha FX 140 A - 2002 года выпуска`
-
№АртикулНазвание
-
160E-W0001-01-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
260E-11193-00-00 ....GASKET, HEAD COVER 1....GASKET, HEAD COVER 1
-
360E-11181-00-00 ....GASKET, CYLINDER HEAD 1....GASKET, CYLINDER HEAD 1
-
44FM-12213-00-00 ....GASKET, TENSIONER CASE....GASKET, TENSIONER CASE
-
560E-13557-00-00 ....GASKET....GASKET
-
693101-35004-00 ....OIL SEAL....OIL SEAL
-
793211-95001-00 ....O-RING....O-RING
-
860E-14613-00-00 ....GASKET, EXHAUST PIPE....GASKET, EXHAUST PIPE
-
960E-14739-00-00 ....GASKET, MUFFLER DAMPER 1....GASKET, MUFFLER DAMPER 1
-
1060E-14749-00-00 ....GASKET, MUFFLER DAMPER 2....GASKET, MUFFLER DAMPER 2
-
1160E-14642-00-00 ....SEAL, EXHAUST....SEAL, EXHAUST
-
1260E-14623-00-00 ....GASKET, EXHAUST PIPE....GASKET, EXHAUST PIPE
-
1360E-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
1493101-25M55-00 ....OIL SEAL....OIL SEAL
-
1593102-25009-00 ....OIL SEAL....OIL SEAL
-
1693210-19MJ4-00 ....O-RING....O-RING
-
1793210-46M16-00 ....O-RING....O-RING
-
1893101-28M65-00 ....OIL SEAL....OIL SEAL
-
1993101-28M66-00 ....OIL SEAL....OIL SEAL
-
2066V-42414-00-00 ....O-RING....O-RING
