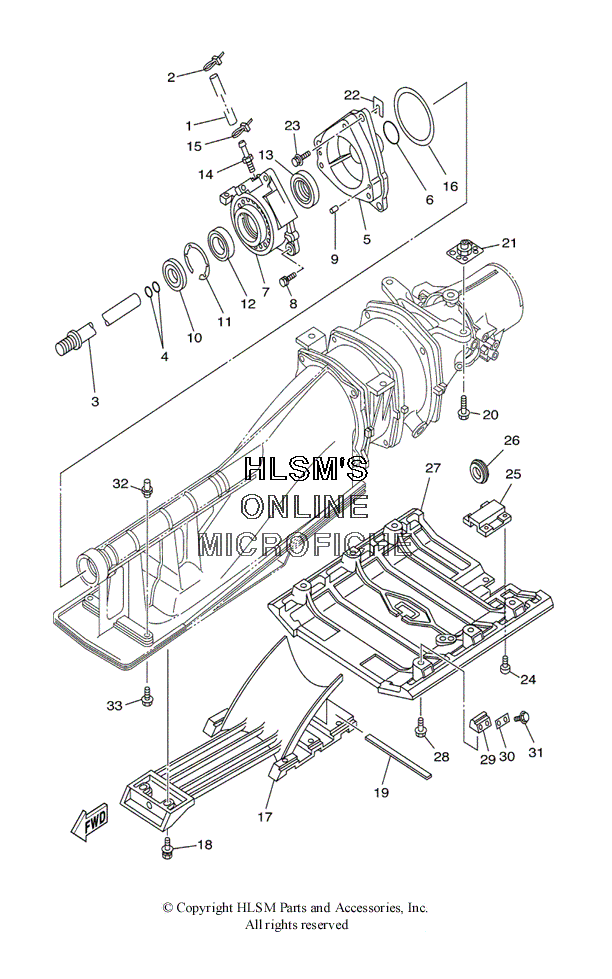

PROPULSION SYSTEM - INTERNAL для Yamaha XL 700 - 2000 года выпуска`
-
№АртикулНазвание
-
190445-09M21-00 HOSEHOSE
-
290465-11M10-00 CLAMPCLAMP
-
363N-51323-10-00 SHAFT, COUPLERSHAFT, COUPLER
-
493210-17MA4-00 O-RINGO-RING
-
565A-G5331-00-00 HOUSING, BEARING (YMUS)HOUSING, BEARING (YMUS)
-
693210-35M72-00 O-RINGO-RING
-
765U-45332-02-94 HOUSING, BEARINGHOUSING, BEARING
-
890119-089UF-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
993606-12019-00 PIN, DOWELPIN, DOWEL
-
1093101-25M55-00 OIL SEALOIL SEAL
-
1193430-47M04-00 CIRCLIPCIRCLIP
-
1293306-205U6-00 BEARINGBEARING
-
1393101-25M56-00 OIL SEALOIL SEAL
-
1461L-45378-00-00 NIPPLE, HOSENIPPLE, HOSE
-
1590465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
166K8-45127-00-00 SEALSEAL
-
1765R-R1333-00-00 SCREEN, INTAKE (YMUS)SCREEN, INTAKE (YMUS)
-
1890119-069UC-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
1963M-51367-00-00 FELT, PACKINGFELT, PACKING
-
2090119-109U8-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
2190179-10800-00 NUT (YMUS)NUT (YMUS)
-
22GD0-U7249-00-05 SHIM (T=0.5) (UR YMUS)SHIM (T=0.5) (UR YMUS)
-
22GD0-U7249-00-10 SHIM (1.0MM) (UR YMUS)SHIM (1.0MM) (UR YMUS)
-
2390119-08802-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
2490149-05904-00 SCREWSCREW
-
25GT3-6273C-00-00 COVER, PLATECOVER, PLATE
-
26GJ8-60469-01-00 CAPCAP
-
27GJ3-U273B-00-00 PLATE 2 (YMUS)PLATE 2 (YMUS)
-
2890119-089U6-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
29GJ1-62733-00-00 PACKINGPACKING
-
30GJ1-62663-00-00 PACKING 1PACKING 1
-
3190119-089U5-00 BOLT, WITH WASHER 1 (YMUS)BOLT, WITH WASHER 1 (YMUS)
-
3290179-06800-00 NUT (YMUS)NUT (YMUS)
-
3390119-069UK-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
