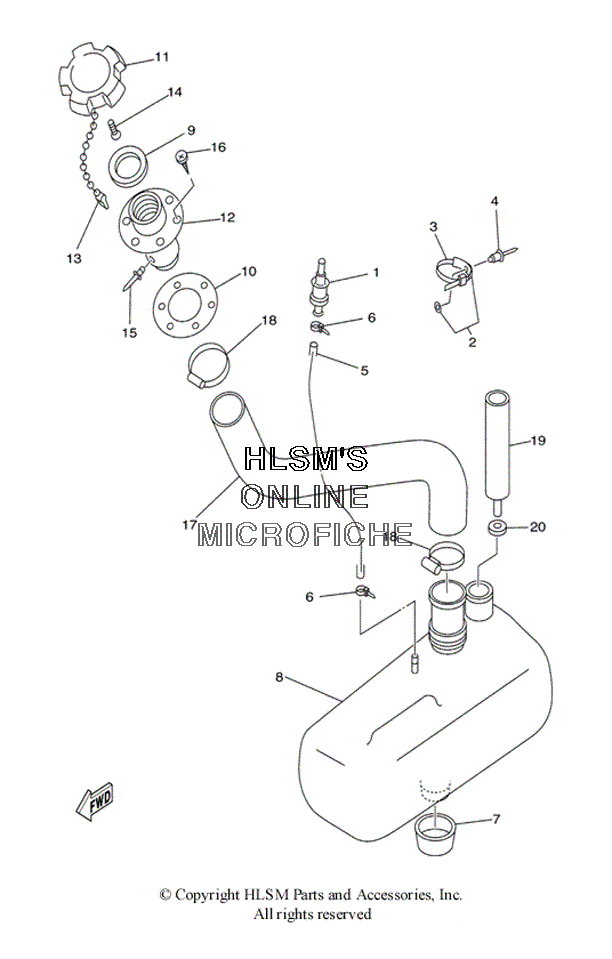

OIL TANK для Yamaha XL 700 - 2000 года выпуска
-
№АртикулНазвание
-
1FJ0-67766-00-00 ROLL OVER VALVEROLL OVER VALVE
-
290600-91736-00 CLAMP COMP.CLAMP COMP.
-
390464-32801-00 CLAMP (YMUS)CLAMP (YMUS)
-
490267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
5GJ3-U7856-20-00 HOSE, AIR VENT 3 (YMUS)HOSE, AIR VENT 3 (YMUS)
-
690465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
7GH1-U759D-00-00 MAT 3 (YMUS)MAT 3 (YMUS)
-
8GJ3-U775B-01-00 TANK, OIL (YMUS)TANK, OIL (YMUS)
-
9GJ3-U778C-00-00 PACKING, OIL CAP (YMUS)PACKING, OIL CAP (YMUS)
-
10GJ3-U778E-00-00 PACKING, OIL FILLER (YMUS)PACKING, OIL FILLER (YMUS)
-
11GJ3-U778B-00-00 CAP, OIL FILLER (YMUS)CAP, OIL FILLER (YMUS)
-
12GJ3-U778D-00-00 SOCKET, OIL FILLER (YMUS)SOCKET, OIL FILLER (YMUS)
-
13EU0-U7835-00-00 CHAIN BALL (YMUS)CHAIN BALL (YMUS)
-
1497780-04110-00 SCREW, TAPPINGSCREW, TAPPING
-
1590267-40935-00 RIVET, BLINDRIVET, BLIND
-
16FX1-67869-00-00 SCREW, FLAT HEAD TAPPINGSCREW, FLAT HEAD TAPPING
-
17GU2-U776C-00-00 HOSE, OIL FILLER (YMUS)HOSE, OIL FILLER (YMUS)
-
1890601-152U3-00 BAND, HOSE 52 (YMUS)BAND, HOSE 52 (YMUS)
-
196J8-13411-00-00 STRAINER, OILSTRAINER, OIL
-
206J8-13414-00-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
