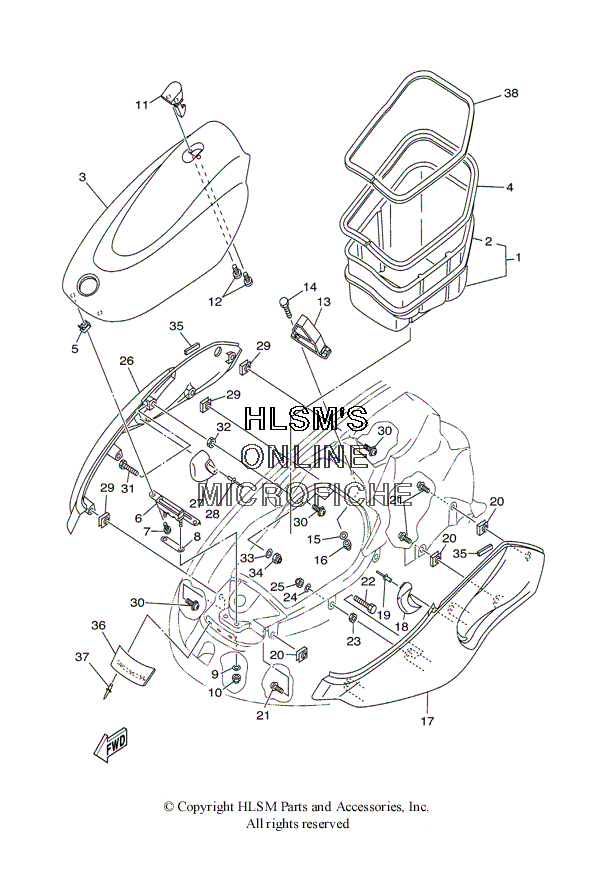

FRONT STORAGE W/ COVER для Yamaha XL 700 - 2000 года выпуска

-
№АртикулНазвание
-
1GU2-U475A-00-00 BOWLOCKER ASSY (YMUS)BOWLOCKER ASSY (YMUS)
-
2GJ3-U266C-31-00 ...PACKING 4 (YMUS)...PACKING 4 (YMUS)
-
3GU2-U517B-00-P2 LID, ENGINE ROOM (YMUS)LID, ENGINE ROOM (YMUS)
-
4GU2-U266B-30-00 PACKING 3 (YMUS)PACKING 3 (YMUS)
-
590183-06902-00 NUT, SPRINGNUT, SPRING
-
6GU2-6517D-00-00 HINGE, LIDHINGE, LID
-
790119-069UJ-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
8GU2-U518E-01-00 PRATE, HINGE LID (YMUS)PRATE, HINGE LID (YMUS)
-
99299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
109572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
11GP7-6517C-00-00 LOCK, LIDLOCK, LID
-
1290159-059U2-00 SCREW, WITH WASHER (YMUS)SCREW, WITH WASHER (YMUS)
-
13GU2-6517F-00-00 HOOK, LID LOCKHOOK, LID LOCK
-
149708R-06020-00 BOLT (YMUS)BOLT (YMUS)
-
159299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
169572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
17GU2-U377B-00-P2 COVER, SIDE 1 (YMUS)COVER, SIDE 1 (YMUS)
-
18GU2-U377H-01-00 INNER, COVER SIDE 1 (YMUS)INNER, COVER SIDE 1 (YMUS)
-
1990267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
2090183-06902-00 NUT, SPRINGNUT, SPRING
-
2190119-069UH-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
2290101-069U0-00 BOLT (YMUS)BOLT (YMUS)
-
2395380-06700-00 NUTNUT
-
249299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
259572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
26GU2-U377C-00-P2 COVER, SIDE 2 (YMUS)COVER, SIDE 2 (YMUS)
-
27GU2-U377J-01-00 INNER, COVER SIDE 2 (YMUS)INNER, COVER SIDE 2 (YMUS)
-
2890267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
2990183-06902-00 NUT, SPRINGNUT, SPRING
-
3090119-069UH-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
3190101-069U0-00 BOLT (YMUS)BOLT (YMUS)
-
3295380-06700-00 NUTNUT
-
339299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
349572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
35GU2-U5162-00-00 TRIM (YMUS)TRIM (YMUS)
-
36GU2-U513M-00-P2 COVER, FRONT (YMUS)COVER, FRONT (YMUS)
-
3790267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
38GJ3-U2664-02-00 PACKING (YMUS)PACKING (YMUS)
