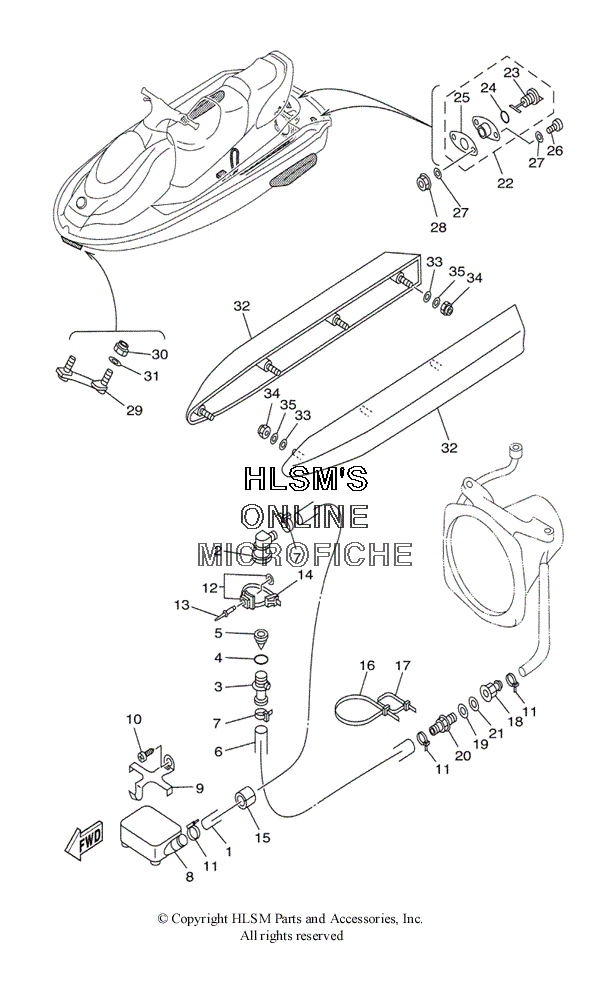

HULL-DECK 1 для Yamaha XL 700 - 2000 года выпуска
-
№АртикулНазвание
-
190445-19895-00 HOSE (YMUS)HOSE (YMUS)
-
263M-51162-00-00 JOINT, HOSEJOINT, HOSE
-
363M-51165-00-00 J0INT HOSE 2J0INT HOSE 2
-
493210-22ME5-00 O-RINGO-RING
-
563M-5316M-00-00 VALVE 1VALVE 1
-
690445-19896-00 HOSE (YMUS)HOSE (YMUS)
-
790601-200U1-00 CLAMP, CABLE (TIEWRAP 6'') (YMUS)CLAMP, CABLE (TIEWRAP 6'') (YMUS)
-
8GD0-U761D-00-00 STRAINER, BILGE (YMUS)STRAINER, BILGE (YMUS)
-
9EW2-67618-00-00 BASE, STRAINER BLIGEBASE, STRAINER BLIGE
-
109778R-50112-00 SCREW, TAPPING (YMUS)SCREW, TAPPING (YMUS)
-
1190601-200U1-00 CLAMP, CABLE (TIEWRAP 6'') (YMUS)CLAMP, CABLE (TIEWRAP 6'') (YMUS)
-
1290600-91736-00 CLAMP COMP.CLAMP COMP.
-
1390267-489U7-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
1490464-32801-00 CLAMP (YMUS)CLAMP (YMUS)
-
15GJ1-U7578-11-00 PACKING, HOSE 2 (YMUS)PACKING, HOSE 2 (YMUS)
-
1690601-20016-00 BANDBAND
-
1790601-200U4-00 TIEWRAP, 8'' W/EYE (YMUS)TIEWRAP, 8'' W/EYE (YMUS)
-
1890604-80759-00 CONNECTION, THRU-HULL 1/4CONNECTION, THRU-HULL 1/4
-
1990430-13909-00 GASKETGASKET
-
2090604-80775-00 THROUGH, HULL CONNECTIONTHROUGH, HULL CONNECTION
-
2190430-13909-00 GASKETGASKET
-
22EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
23EU0-62282-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
24EU0-62283-00-00 ...O-RING...O-RING
-
25EU0-62285-01-00 ...PACKING DRAIN (EU0)...PACKING DRAIN (EU0)
-
2697880-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
279299R-05200-00 WASHER (YMUS)WASHER (YMUS)
-
289572R-05300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
29FN8-U1624-00-00 BOWEYE 1 (S) (YMUS)BOWEYE 1 (S) (YMUS)
-
309572R-08300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
319299R-08200-00 WASHER, M8 FLAT (YMUS)WASHER, M8 FLAT (YMUS)
-
32GH3-U883M-30-00 STABILIZER (YMUS)STABILIZER (YMUS)
-
33GT3-U883U-00-00 PACKING, STABILIZER (YMUS)PACKING, STABILIZER (YMUS)
-
349572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
359299R-06200-00 WASHER (YMUS)WASHER (YMUS)
