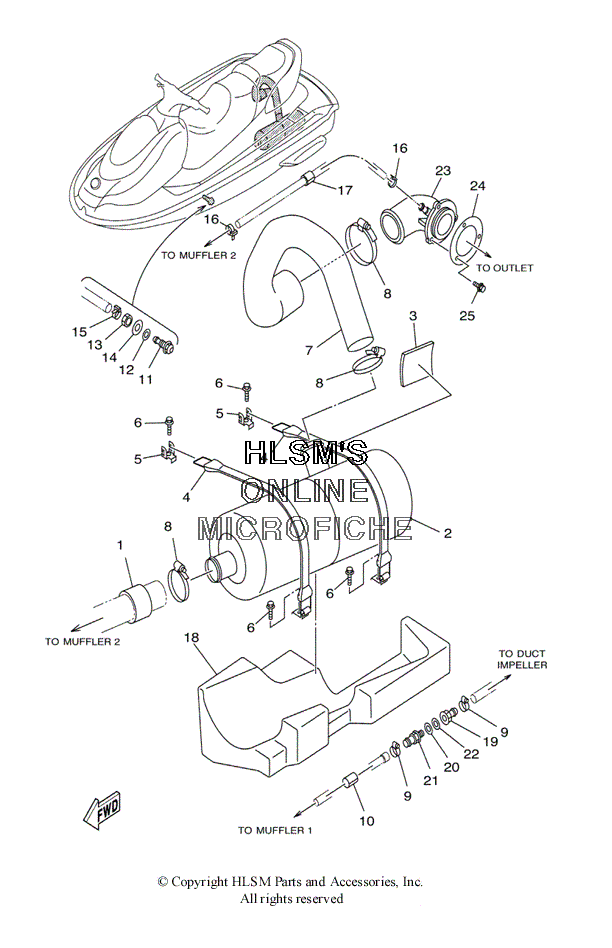

EXHAUST - HOSES для Yamaha XL 700 - 2000 года выпуска
-
№АртикулНазвание
-
1GH6-67577-01-00 PACKING, HOSE 1PACKING, HOSE 1
-
2GJ3-U7550-00-00 WATER LOCK COMP. (YMUS)WATER LOCK COMP. (YMUS)
-
3GJ3-U755J-00-00 MAT, WATER LOCK (YMUS)MAT, WATER LOCK (YMUS)
-
4GJ3-U7570-00-00 C HOOK COMP. (YMUS)C HOOK COMP. (YMUS)
-
5EW2-65772-00-00 HOOK AHOOK A
-
690119-069UJ-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
7GJ3-U7555-00-00 HOSE, EXHAUST (YMUS)HOSE, EXHAUST (YMUS)
-
890601-170UG-00 BAND, HOSE 70 (YMUS)BAND, HOSE 70 (YMUS)
-
990601-118UF-00 BAND, HOSE 18 (YMUS)BAND, HOSE 18 (YMUS)
-
10GJ1-U7578-11-00 PACKING, HOSE 2 (YMUS)PACKING, HOSE 2 (YMUS)
-
11GJ1-6753B-02-00 PILOT, WATERPILOT, WATER
-
12GP3-U1438-00-00 PACKING (YMUS)PACKING (YMUS)
-
13GP7-61652-00-00 NUT, PILOTNUT, PILOT
-
149299R-14200-00 WASHER (YMUS)WASHER (YMUS)
-
1590465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
1690601-200U1-00 CLAMP, CABLE (TIEWRAP 6'') (YMUS)CLAMP, CABLE (TIEWRAP 6'') (YMUS)
-
17GJ1-U7578-11-00 PACKING, HOSE 2 (YMUS)PACKING, HOSE 2 (YMUS)
-
18GJ3-U892F-01-00 FLOATATION, BASE 1 (YMUS)FLOATATION, BASE 1 (YMUS)
-
1990604-80793-00 THROGUH-HULL CONNECTION 3/8THROGUH-HULL CONNECTION 3/8
-
2090430-16910-00 GASKETGASKET
-
2190604-80794-00 THROGUH-HULL CONNECTION 3/8THROGUH-HULL CONNECTION 3/8
-
2290430-16910-00 GASKETGASKET
-
23GJ3-U7560-01-00 EXHAUST, THRU-HALL COMP. (YMUS)EXHAUST, THRU-HALL COMP. (YMUS)
-
24GA9-U7525-00-00 PACKING (YMUS)PACKING (YMUS)
-
2590119-059U4-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
