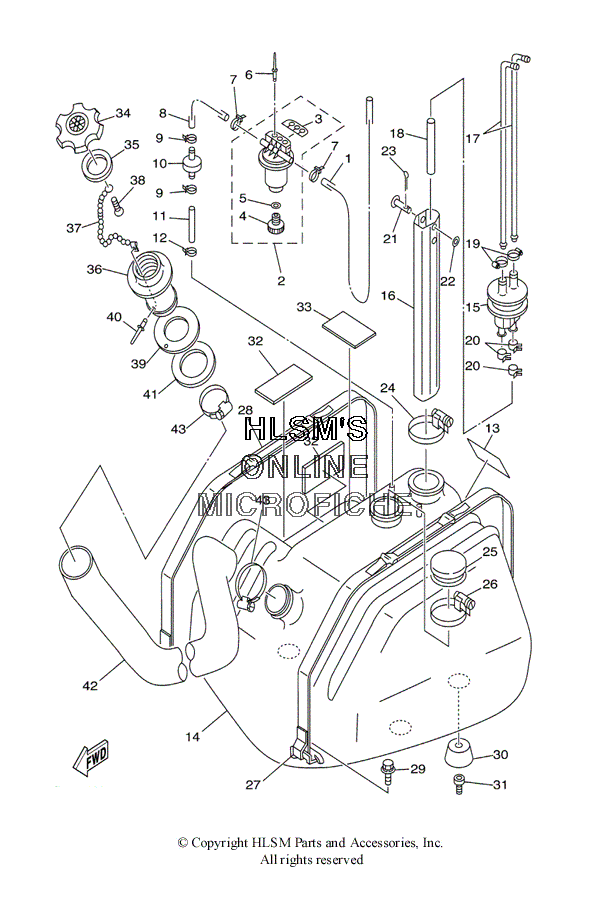

FUEL TANK для Yamaha XL 700 - 2000 года выпуска`
-
№АртикулНазвание
-
1GP7-U785J-00-00 HOSE AIR VENT (YMUS)HOSE AIR VENT (YMUS)
-
2EW2-62140-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
3EW2-62142-00-00 ...PLATE, FILTER...PLATE, FILTER
-
470R-24543-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
570R-24489-00-00 ...O-RING...O-RING
-
690267-489U2-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
790465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
8GU2-U785H-00-00 HOSE, AIR VENT 3 (YMUS)HOSE, AIR VENT 3 (YMUS)
-
990465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
10EU0-67767-31-00 CHECK VALVECHECK VALVE
-
11GA7-U785G-00-00 HOSE, AIR VENT (YMUS)HOSE, AIR VENT (YMUS)
-
1290465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
13GH3-6418D-00-00 LABEL, FUEL TANKLABEL, FUEL TANK
-
14GH3-U7711-00-00 TANK, FUEL (YMUS)TANK, FUEL (YMUS)
-
15FJ0-67713-00-00 PIPE, JOINTPIPE, JOINT
-
16FJ0-67716-01-00 PIPE, FILLERPIPE, FILLER
-
17FJ0-67714-02-00 PIPE, SUCTION 3PIPE, SUCTION 3
-
1890445-11903-00 HOSEHOSE
-
1990601-11062-00 BAND, HOSE 11BAND, HOSE 11
-
2090467-11032-00 CLIPCLIP
-
2191790-05040-00 PIN, CLEVISPIN, CLEVIS
-
2292990-05600-00 WASHER, PLATEWASHER, PLATE
-
2391490-16010-00 PIN, COTTERPIN, COTTER
-
2490601-162U5-00 BAND, HOSE 62 (YMUS)BAND, HOSE 62 (YMUS)
-
25FN8-6771K-00-00 COVERCOVER
-
2690601-162U5-00 BAND, HOSE 62 (YMUS)BAND, HOSE 62 (YMUS)
-
27GJ1-67743-01-00 BELT, TANK 1BELT, TANK 1
-
28GH3-67743-01-00 BELT, TANK 1BELT, TANK 1
-
2990119-089U7-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
30GH1-U782B-00-00 DAMPER, FUEL TANK (YMUS)DAMPER, FUEL TANK (YMUS)
-
3190110-089U1-00 BOLT, HEXAGON SOCKET HEAD (YMUS)BOLT, HEXAGON SOCKET HEAD (YMUS)
-
32GJ1-U759B-00-00 MAT 1 (YMUS)MAT 1 (YMUS)
-
33GJ1-U759C-00-00 MAT 2 (YMUS)MAT 2 (YMUS)
-
34GP7-U7831-10-00 CAP, FUEL FILLER (YMUS)CAP, FUEL FILLER (YMUS)
-
35GP7-U7832-00-00 PACKING 1 (YMUS)PACKING 1 (YMUS)
-
36GP7-U7833-10-00 SOCKET (YMUS)SOCKET (YMUS)
-
37GP7-U7835-00-00 CHAIN BALL (YMUS)CHAIN BALL (YMUS)
-
3890169-049U1-00 TAPPING SCREW (YMUS)TAPPING SCREW (YMUS)
-
39GP7-U7834-10-00 PACKING FUEL FILLER (YMUS)PACKING FUEL FILLER (YMUS)
-
4090267-329UR-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
41GP7-U783F-00-00 NUT, FUEL FILLER (YMUS)NUT, FUEL FILLER (YMUS)
-
42GP3-U7844-00-00 HOSE (YMUS)HOSE (YMUS)
-
4390601-155U4-00 BAND, HOSE 55 (YMUS)BAND, HOSE 55 (YMUS)
