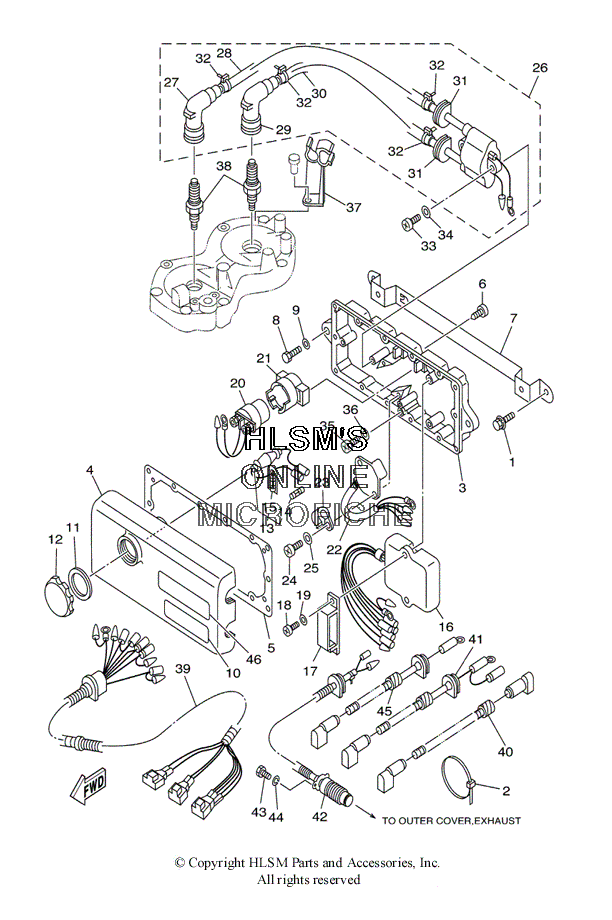

ELECTRICAL 1 для Yamaha XL 700 - 2000 года выпуска`
-
№АртикулНазвание
-
190119-089U7-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
290601-20009-00 BANDBAND
-
362L-8552A-00-8P HOUSINGHOUSING
-
46M6-8552E-01-00 COVER, CASECOVER, CASE
-
56M6-81921-00-00 GASKET, TERMINALGASKET, TERMINAL
-
697780-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
766D-85542-00-00 BRACKETBRACKET
-
897095-08025-00 BOLTBOLT
-
992995-08600-00 WASHERWASHER
-
106R7-83623-40-00 MARKMARK
-
116M6-81844-00-00 GASKETGASKET
-
126M6-8132W-00-00 CAPCAP
-
136K8-82150-01-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
146G1-82151-00-00 ...FUSE...FUSE
-
156K8-82159-00-00 ...FUSE SPEAR...FUSE SPEAR
-
1662T-85540-01-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
1790464-06M29-00 CLAMPCLAMP
-
1897880-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992990-06600-00 WASHER, PLATEWASHER, PLATE
-
206G1-81941-10-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
216M6-81952-01-00 HOLDER, RELAYHOLDER, RELAY
-
226M6-81960-A0-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2390465-06M86-00 CLAMPCLAMP
-
2497880-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2592990-06600-00 WASHER, PLATEWASHER, PLATE
-
2662E-85570-11-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
2762E-82371-11-00 ...CAP, PLUG...CAP, PLUG
-
2862E-82351-01-00 ...TUBE, CORD...TUBE, CORD
-
2962E-82371-11-00 ...CAP, PLUG...CAP, PLUG
-
3062E-82352-01-00 ...TUBE, CORD 2...TUBE, CORD 2
-
3190480-06M43-00 ...GROMMET...GROMMET
-
3290465-11M10-00 ...CLAMP...CLAMP
-
3397880-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3492990-06600-00 WASHER, PLATEWASHER, PLATE
-
3597880-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3692990-06600-00 WASHER, PLATEWASHER, PLATE
-
3762T-82361-00-00 CLAMP, CORDCLAMP, CORD
-
38NGK-BR8HS-00-00 PLIG, SPARK (NGK BR8HS)PLIG, SPARK (NGK BR8HS)
-
3963N-82553-00-00 EXTENSION, WIRE LEADEXTENSION, WIRE LEAD
-
4063N-82117-00-00 WIRE, LEADWIRE, LEAD
-
4163N-82117-10-00 WIRE, LEADWIRE, LEAD
-
4262T-82560-01-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
4397095-06016-00 BOLTBOLT
-
4492995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4562L-82117-20-00 WIRE, LEADWIRE, LEAD
-
4667E-2179X-01-00 PLATE, EPAPLATE, EPA
