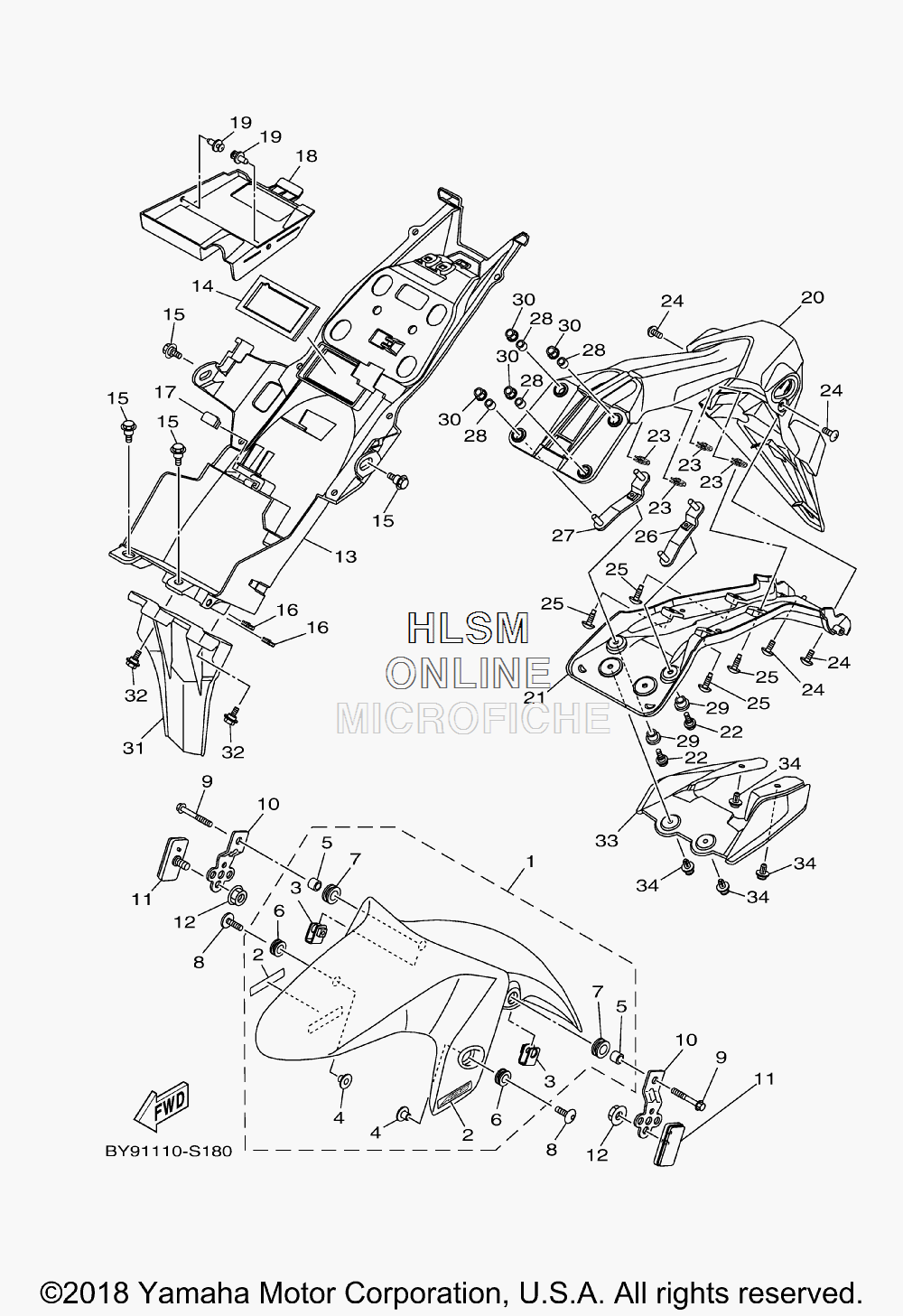

FENDER - FRONT / REAR для Yamaha YZFR3 ABS - 2018 года выпуска`
-
№АртикулНазвание
-
11WD-XF151-A0-P0 FENDER, FRONT (SMX - BLACK METALLIC X)FENDER, FRONT (SMX - BLACK METALLIC X)
-
11WD-XF151-20-P4 FENDER, FRONT (MS1 - MAT SILVER FOR WM6 - WHITE)FENDER, FRONT (MS1 - MAT SILVER FOR WM6 - WHITE)
-
22WD-F1569-A0-00 ...GRAPHIC 1 (WM6 - WHITE METALLIC 6)...GRAPHIC 1 (WM6 - WHITE METALLIC 6)
-
22WD-F1569-90-00 ...GRAPHIC 1 (SMX - BLACK METALLIC X)...GRAPHIC 1 (SMX - BLACK METALLIC X)
-
31WD-F1586-00-00 ...BRACKET...BRACKET
-
490387-068C5-00 ...COLLAR...COLLAR
-
590387-068L0-00 ...COLLAR...COLLAR
-
690480-12815-00 ...GROMMET...GROMMET
-
790480-15809-00 ...GROMMET...GROMMET
-
890111-06137-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
995027-06045-00 BOLT, FLANGEBOLT, FLANGE
-
101WD-F113J-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
118GM-85110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
1295702-05500-00 NUT, FLANGENUT, FLANGE
-
131WD-F1611-01-00 FENDER, REARFENDER, REAR
-
141WD-F1669-00-00 SEALSEAL
-
1590109-063F1-00 BOLTBOLT
-
1690183-05076-00 NUT, SPRINGNUT, SPRING
-
171WD-F16A2-00-00 SEAL, 2SEAL, 2
-
181WD-F163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
1990269-06081-00 RIVETRIVET
-
201WD-F1629-01-00 GUARD, MUDGUARD, MUD
-
211WD-F1617-00-00 BRACKET, FENDERBRACKET, FENDER
-
2290111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2390183-050A7-00 NUT, SPRINGNUT, SPRING
-
2497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2590111-05018-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
261WD-F1688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
271WD-F1689-00-00 BRACKET, REAR STAY 2BRACKET, REAR STAY 2
-
2890387-066J9-00 COLLARCOLLAR
-
2990387-068L9-00 COLLARCOLLAR
-
3095602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
311WD-F1621-00-00 FLAPFLAP
-
3290109-05003-00 BOLTBOLT
-
331WD-F163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
3490269-06081-00 RIVETRIVET
