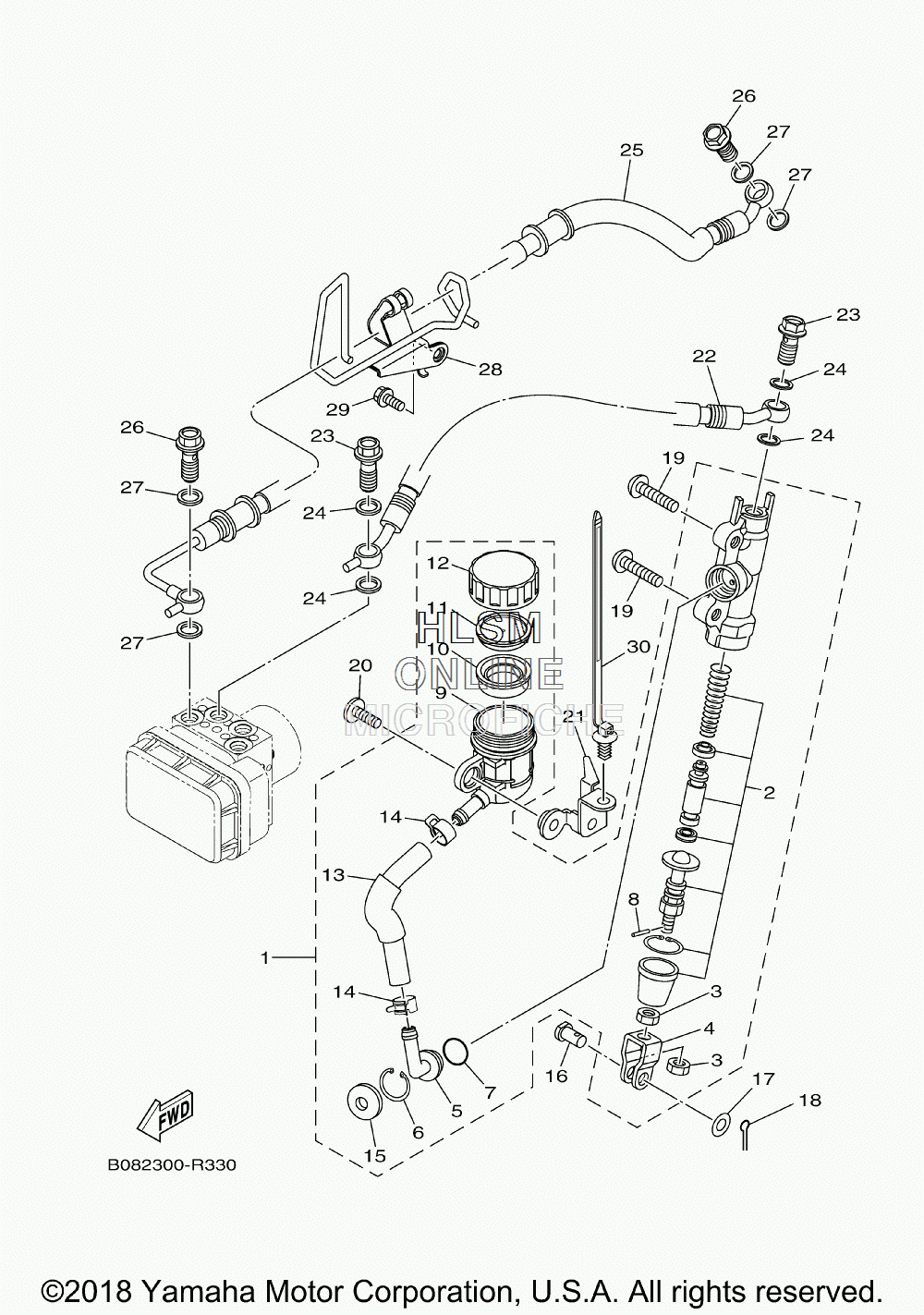

BRAKE - REAR MASTER CYLINDER для Yamaha YZFR3 ABS - 2018 года выпуска`
-
№АртикулНазвание
-
11WD-F580E-00-00 REAR MASTER CYLINDER ASSYREAR MASTER CYLINDER ASSY
-
21WD-F5808-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34SS-27218-00-00 ...NUT...NUT
-
450C-F7222-00-00 ...JOINT...JOINT
-
550C-F582A-50-00 ...JOINT...JOINT
-
650C-F5866-00-00 ...CIRCLIP...CIRCLIP
-
793210-15620-00 ...O-RING...O-RING
-
83KW-27234-00-00 ...PIN, BRAKE ROD...PIN, BRAKE ROD
-
950C-F5894-10-00 ...TANK, RESERVOIR...TANK, RESERVOIR
-
102VN-F5854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
1150C-F5855-00-00 ......BUSH, DIAPHRAGM......BUSH, DIAPHRAGM
-
121WD-F5852-50-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
131WD-F5895-50-00 ...HOSE, RESERVOIR...HOSE, RESERVOIR
-
1490467-12085-00 ...CLIP...CLIP
-
1550C-F589A-00-00 ...COVER, DUST...COVER, DUST
-
1690240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1790201-08083-00 WASHER, PLATEWASHER, PLATE
-
1891401-20012-00 PIN, COTTERPIN, COTTER
-
1992012-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2090111-06121-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
21B04-F582E-00-00 HOLDER, RESERVE TANKHOLDER, RESERVE TANK
-
222WD-F581K-00-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
2390401-10812-00 BOLT, UNIONBOLT, UNION
-
2490201-10118-00 WASHER, PLATEWASHER, PLATE
-
252WD-F582J-00-00 HOSE, BRAKE 6HOSE, BRAKE 6
-
2690401-10812-00 BOLT, UNIONBOLT, UNION
-
2790201-10118-00 WASHER, PLATEWASHER, PLATE
-
282WD-F5887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2995827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3090464-30009-00 CLAMPCLAMP
