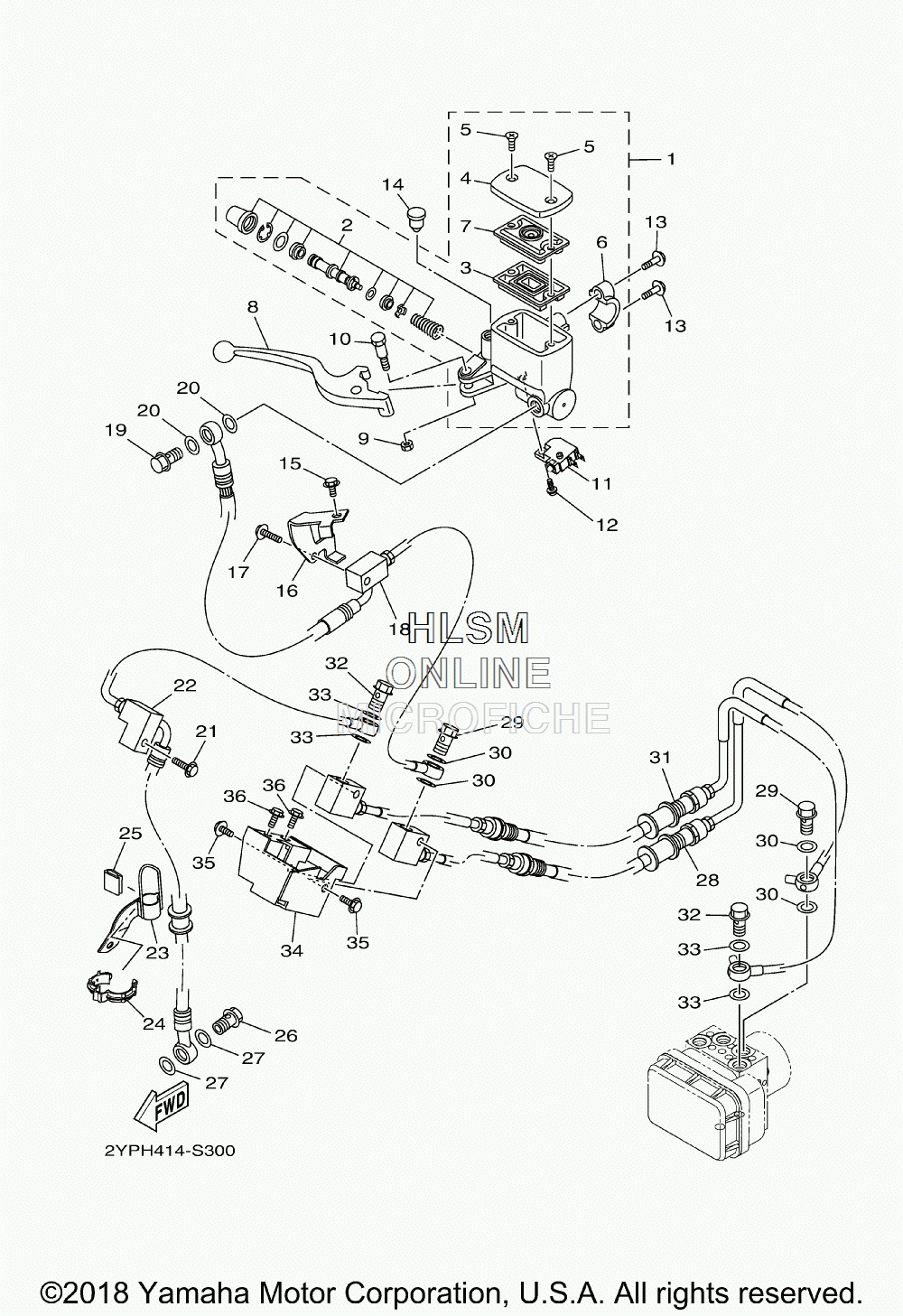

BRAKE - FRONT MASTER CYLINDER для Yamaha YZFR3 ABS - 2018 года выпуска`
-
№АртикулНазвание
-
11WD-F5870-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
21WD-F5807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35RB-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
41WD-F5852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
536Y-2589H-00-00 ...SCREW...SCREW
-
63RW-F5867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
73C1-F5855-00-00 ......BUSH, DIAPHRAGM......BUSH, DIAPHRAGM
-
81WD-H3922-00-00 LEVER 2LEVER 2
-
995602-06100-00 NUT, S/LNUT, S/L
-
1090109-06577-00 BOLTBOLT
-
111HP-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1297602-04212-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
1395027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1490338-09012-00 PLUGPLUG
-
1595812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
162WD-F588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
1795022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
182WD-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1990401-10812-00 BOLT, UNIONBOLT, UNION
-
2090201-10118-00 WASHER, PLATEWASHER, PLATE
-
2195022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
222WD-F581J-01-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
232WD-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2490464-12013-00 CLAMPCLAMP
-
2534B-24785-00-00 MOLDMOLD
-
2690401-10812-00 BOLT, UNIONBOLT, UNION
-
2790201-10118-00 WASHER, PLATEWASHER, PLATE
-
282WD-F5873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
2990401-10812-00 BOLT, UNIONBOLT, UNION
-
3090201-10118-00 WASHER, PLATEWASHER, PLATE
-
312WD-F5874-00-00 HOSE, BRAKEHOSE, BRAKE
-
3290401-10812-00 BOLT, UNIONBOLT, UNION
-
3390201-10118-00 WASHER, PLATEWASHER, PLATE
-
342WD-F588G-00-00 HOLDER, BRAKE HOSE 6HOLDER, BRAKE HOSE 6
-
3595027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3695027-06012-00 BOLT, FLANGEBOLT, FLANGE
