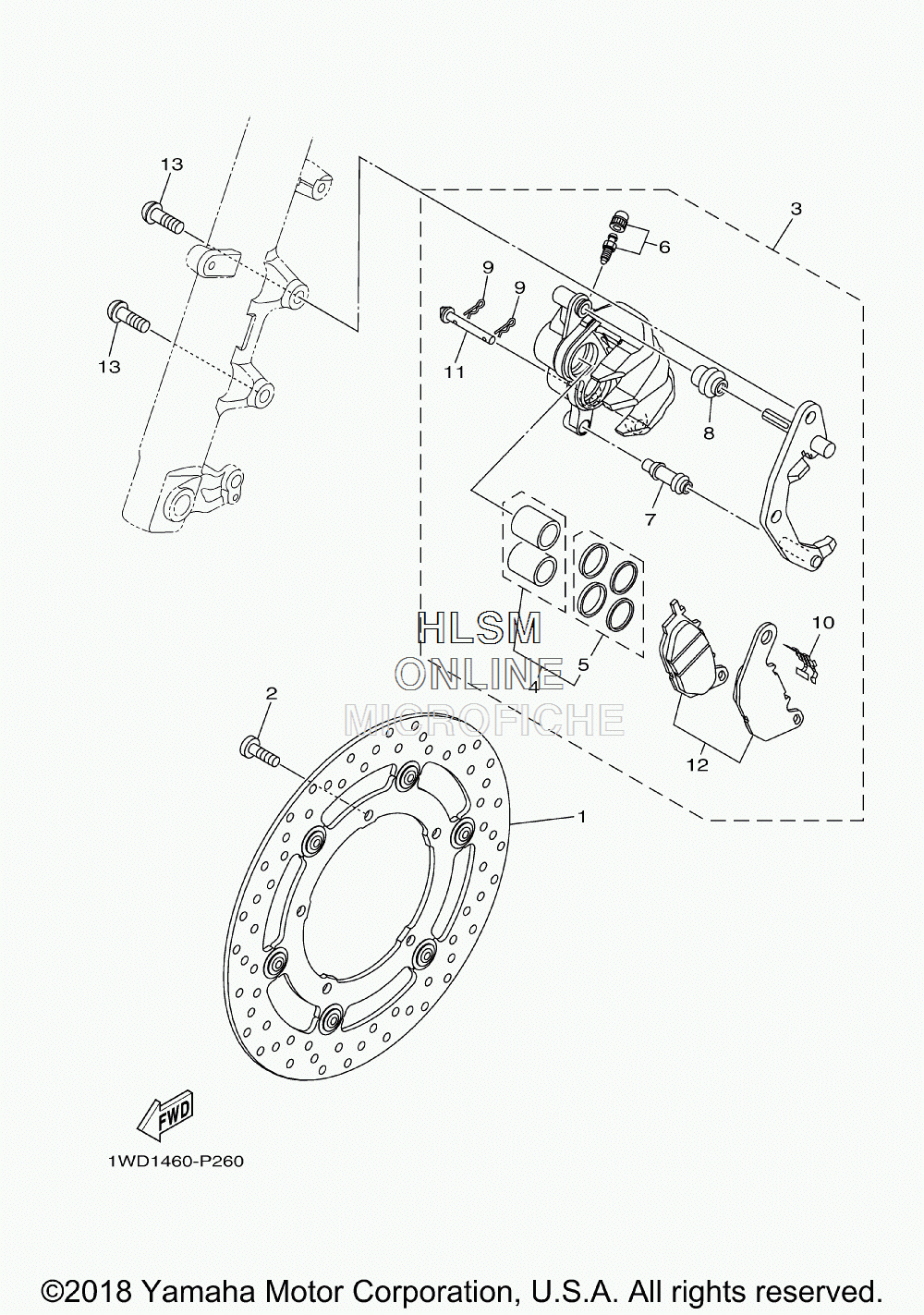

BRAKE - FRONT CALIPER для Yamaha YZFR3 ABS - 2018 года выпуска`
-
№АртикулНазвание
-
11WD-F581U-00-00 DISC BRAKE ASSY (RIGHT)DISC BRAKE ASSY (RIGHT)
-
290111-08815-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
31WD-F580U-01-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
41WD-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
51WD-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
64C9-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
75YP-F5937-00-00 ...BOOT 2...BOOT 2
-
85YP-F5917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
95YP-F5925-01-00 ...CLIP...CLIP
-
101WD-F5919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
115YP-F5924-00-00 ...PIN, PAD...PIN, PAD
-
121WD-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
1390149-10044-00 SCREWSCREW
