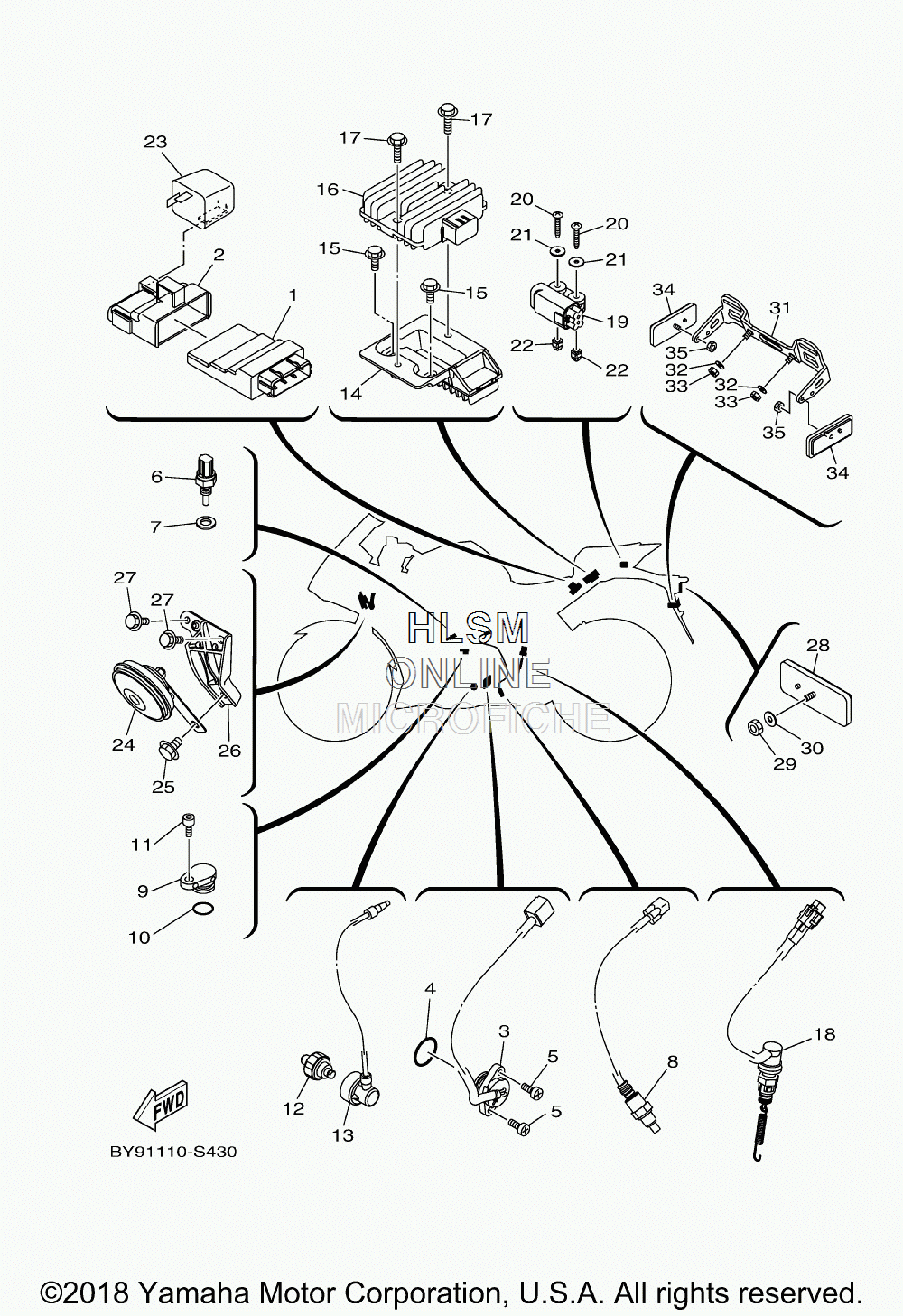

ELECTRICAL 2 для Yamaha YZFR3 ABS - 2018 года выпуска`
-
№АртикулНазвание
-
1B02-H591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
21WD-H5546-00-00 BANDBAND
-
31WD-H2540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
493210-21801-00 O-RINGO-RING
-
598502-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
654P-H3591-00-00 THERMO UNITTHERMO UNIT
-
790430-10804-00 GASKETGASKET
-
81WD-H592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
92WD-E5189-00-00 PLUGPLUG
-
1093210-15566-00 O-RINGO-RING
-
1191312-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
121WS-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
131WD-H1315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
141WD-H1961-00-00 COVERCOVER
-
1595802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
161WD-H1960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1795802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
181WD-H2530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
191WD-H2576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2090160-04009-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
2190201-04028-00 WASHER, PLATEWASHER, PLATE
-
224B4-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
234VR-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
241WD-H3371-00-00 HORNHORN
-
2595802-08012-00 BOLT, FLANGEBOLT, FLANGE
-
261WD-H3378-00-00 STAY, HORNSTAY, HORN
-
2795807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
283C1-H5130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2995602-05100-00 NUT, UNUT, U
-
3090201-05043-00 WASHER, PLATEWASHER, PLATE
-
312MS-H4751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
3290201-06055-00 WASHER, PLATEWASHER, PLATE
-
3395607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
343C1-H5130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
3595707-05500-00 NUT, FLANGENUT, FLANGE
