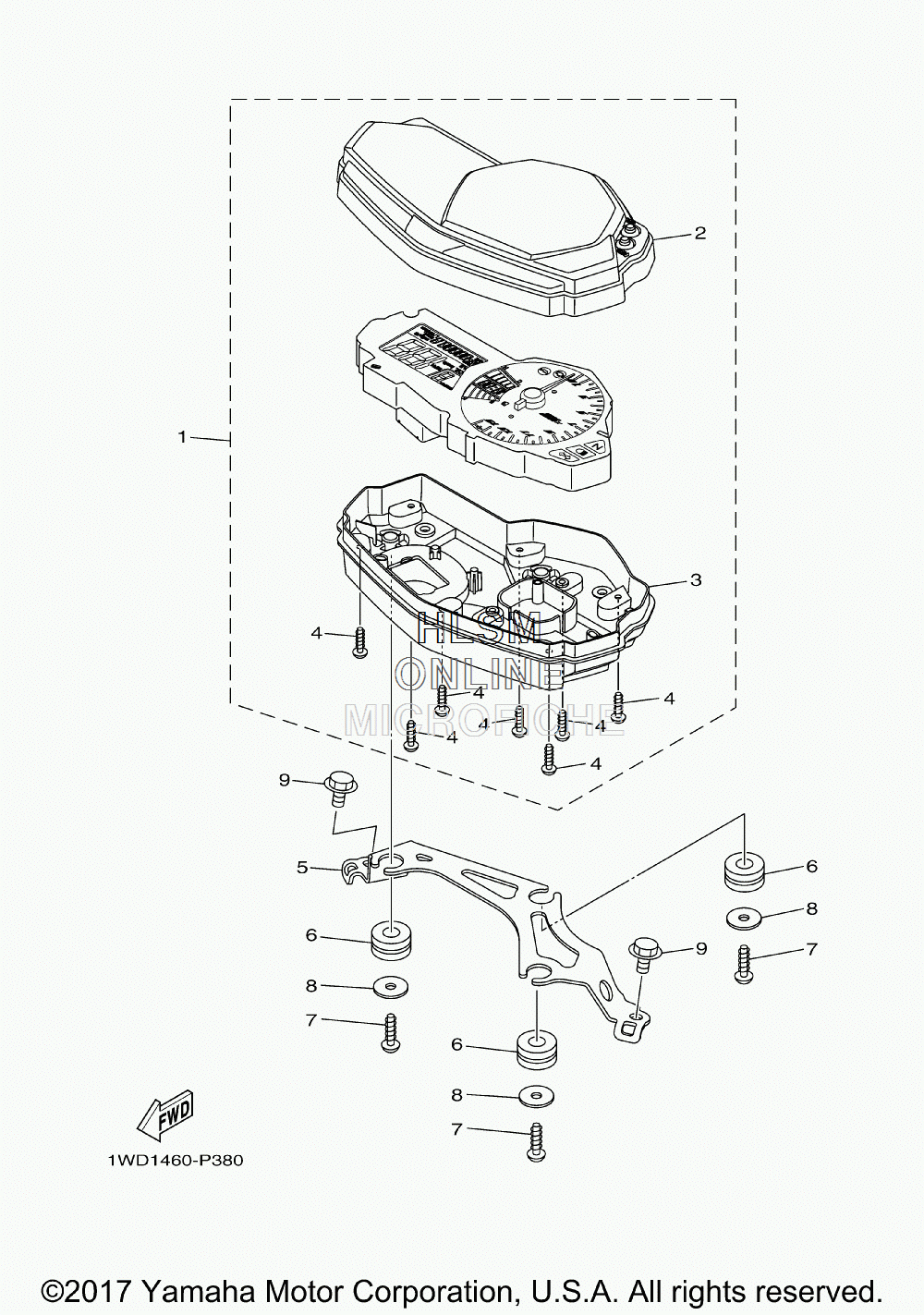

INSTRUMENT PANEL для Yamaha YZFR3 - 2017 года выпуска`
-
№АртикулНазвание
-
12MS-H3500-00-00 METER ASSYMETER ASSY
-
21WD-H3571-00-00 ...CASE, SPEEDOMETER UPPER...CASE, SPEEDOMETER UPPER
-
31WD-H3572-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
497702-30016-00 ...SCREW, TAPPING...SCREW, TAPPING
-
51WD-H3519-00-00 BRACKET, METERBRACKET, METER
-
690480-14004-00 GROMMETGROMMET
-
797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
890201-05827-00 WASHER, PLATEWASHER, PLATE
-
995022-06010-00 BOLT, FLANGEBOLT, FLANGE
