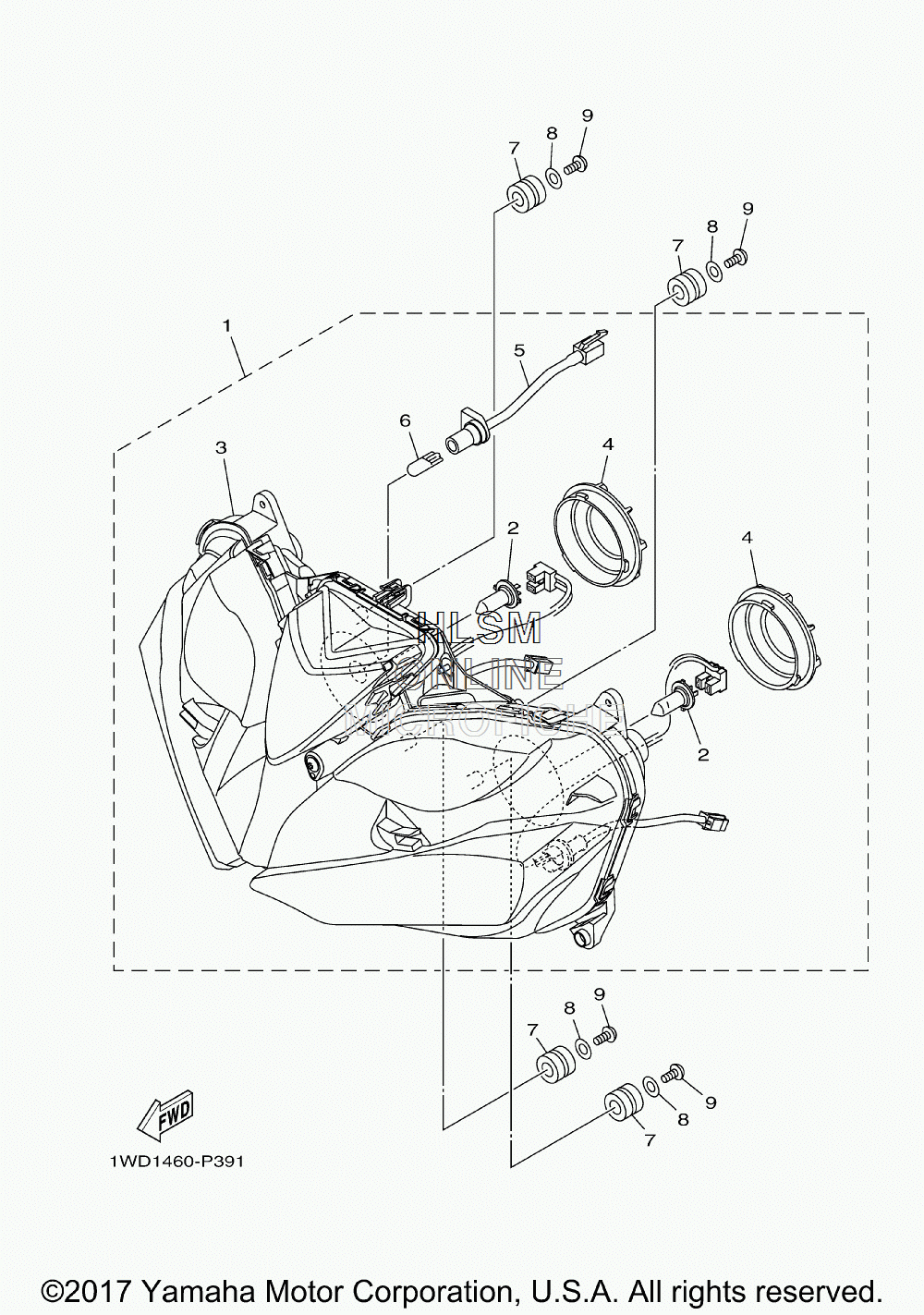

HEADLIGHT для Yamaha YZFR3 - 2017 года выпуска
-
№АртикулНазвание
-
11WD-H4300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
21WD-H4314-00-00 ...BULB (12V-55W)...BULB (12V-55W)
-
31WD-H4303-00-00 ...HEADLIGHT UNIT ASSY...HEADLIGHT UNIT ASSY
-
41WD-H4397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
51WD-H4340-00-00 ...SOCKET CORD ASSY 1...SOCKET CORD ASSY 1
-
61WD-H4347-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
790480-14004-00 GROMMETGROMMET
-
890201-05036-00 WASHER, PLATEWASHER, PLATE
-
997707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
