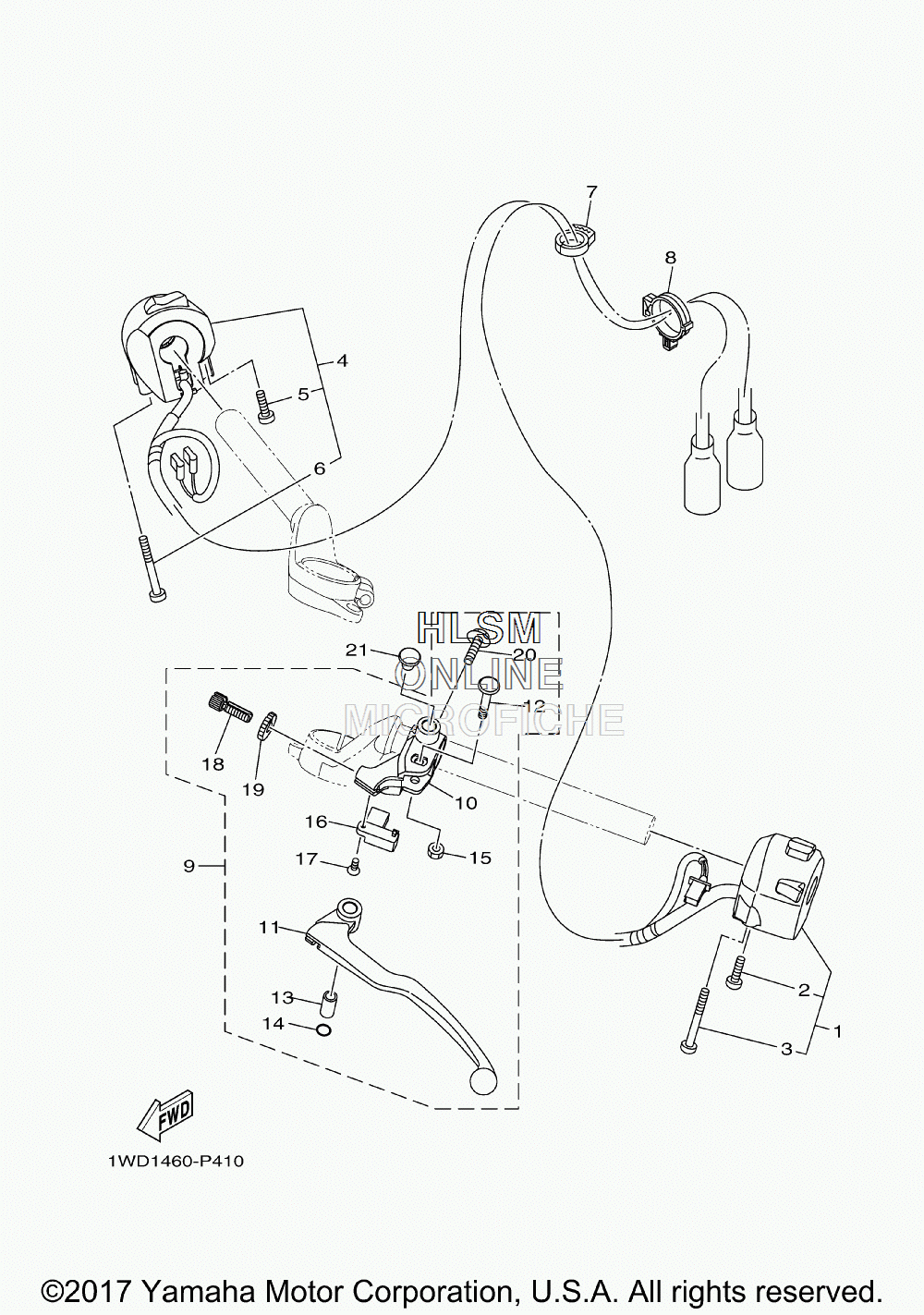

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha YZFR3 - 2017 года выпуска`
-
№АртикулНазвание
-
11WD-H3972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
21WD-H2133-00-00 ...SCREW, FITTING...SCREW, FITTING
-
31WD-H395W-00-00 ...SCREW, SWITCH FITTING...SCREW, SWITCH FITTING
-
41WD-H3975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
545P-H2133-00-00 ...SCREW, FITTING...SCREW, FITTING
-
645P-H395W-00-00 ...SCREW, SWITCH FITTING...SCREW, SWITCH FITTING
-
790464-16003-00 CLAMPCLAMP
-
890464-30001-00 CLAMPCLAMP
-
91WD-H2910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
101WD-H2911-00-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
111WD-H3912-00-00 ...LEVER 1...LEVER 1
-
1231A-83945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
1331A-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
1493210-108H5-00 ...O-RING...O-RING
-
1595602-06100-00 ...NUT, S/L...NUT, S/L
-
165BP-H2917-00-00 ...SWITCH...SWITCH
-
1790151-03005-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
1890123-08083-00 ...BOLT...BOLT
-
1990179-08316-00 ...NUT...NUT
-
2097507-06525-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
2190338-09012-00 PLUGPLUG
