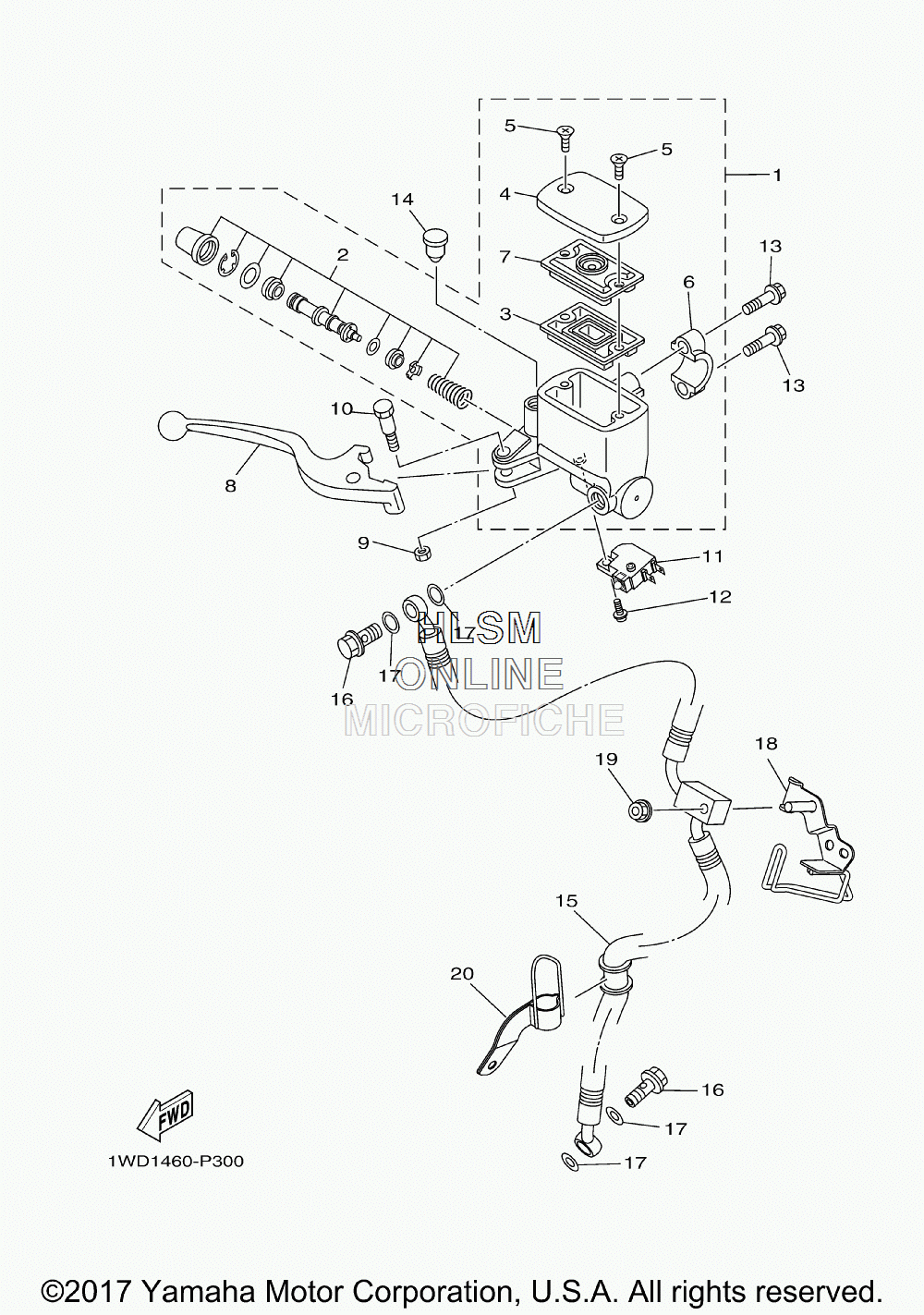

BRAKE - FRONT MASTER CYLINDER для Yamaha YZFR3 - 2017 года выпуска`
-
№АртикулНазвание
-
11WD-F5870-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
21WD-F5807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35RB-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
41WD-F5852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
536Y-2589H-00-00 ...SCREW...SCREW
-
63RW-F5867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
73C1-F5855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
81WD-H3922-00-00 LEVER 2LEVER 2
-
995602-06100-00 NUT, S/LNUT, S/L
-
995602-06100-00 NUT, S/LNUT, S/L
-
1090109-06577-00 BOLTBOLT
-
111HP-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1297602-04212-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
1395027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1490338-09012-00 PLUGPLUG
-
151WD-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1690401-10812-00 BOLT, UNIONBOLT, UNION
-
1790201-10118-00 WASHER, PLATEWASHER, PLATE
-
181WD-F5875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
1995702-06500-00 NUT, FLANGENUT, FLANGE
-
201WD-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
