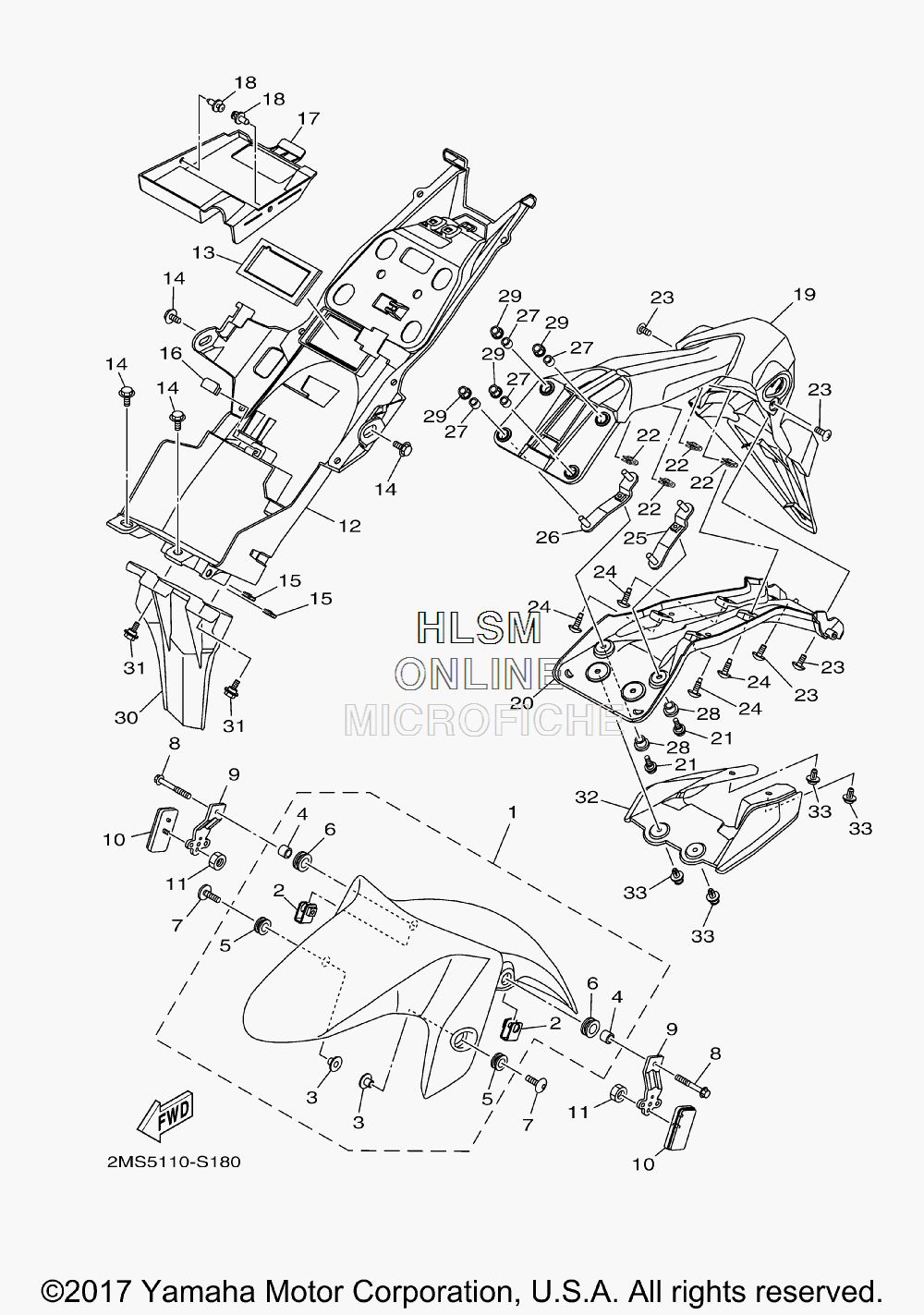

FENDER - FRONT / REAR для Yamaha YZFR3 - 2017 года выпуска`
-
№АртикулНазвание
-
11WD-XF151-B0-P1 FENDER, FRONT (DPBMC - PURPLISH BLUE)FENDER, FRONT (DPBMC - PURPLISH BLUE)
-
11WD-XF151-00-P7 FENDER, FRONT (MBL2 - MAT BLACK)FENDER, FRONT (MBL2 - MAT BLACK)
-
21WD-F1586-00-00 ...BRACKET...BRACKET
-
390387-068C5-00 ...COLLAR...COLLAR
-
490387-068L0-00 ...COLLAR...COLLAR
-
590480-12815-00 ...GROMMET...GROMMET
-
690480-15809-00 ...GROMMET...GROMMET
-
790111-06137-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
895027-06045-00 BOLT, FLANGEBOLT, FLANGE
-
91WD-F113J-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
108GM-85110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
1195702-05500-00 NUT, FLANGENUT, FLANGE
-
121WD-F1611-01-00 FENDER, REARFENDER, REAR
-
131WD-F1669-00-00 SEALSEAL
-
1490109-063F1-00 BOLTBOLT
-
1590183-05076-00 NUT, SPRINGNUT, SPRING
-
161WD-F16A2-00-00 SEAL, 2SEAL, 2
-
171WD-F163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
1890269-06081-00 RIVETRIVET
-
191WD-F1629-01-00 GUARD, MUDGUARD, MUD
-
201WD-F1617-00-00 BRACKET, FENDERBRACKET, FENDER
-
2190111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2290183-050A7-00 NUT, SPRINGNUT, SPRING
-
2397707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2490111-05018-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
251WD-F1688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
261WD-F1689-00-00 BRACKET, REAR STAY 2BRACKET, REAR STAY 2
-
2790387-066J9-00 COLLARCOLLAR
-
2890387-068L9-00 COLLARCOLLAR
-
2995602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
301WD-F1621-00-00 FLAPFLAP
-
3190109-05003-00 BOLTBOLT
-
321WD-F163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
3390269-06081-00 RIVETRIVET
