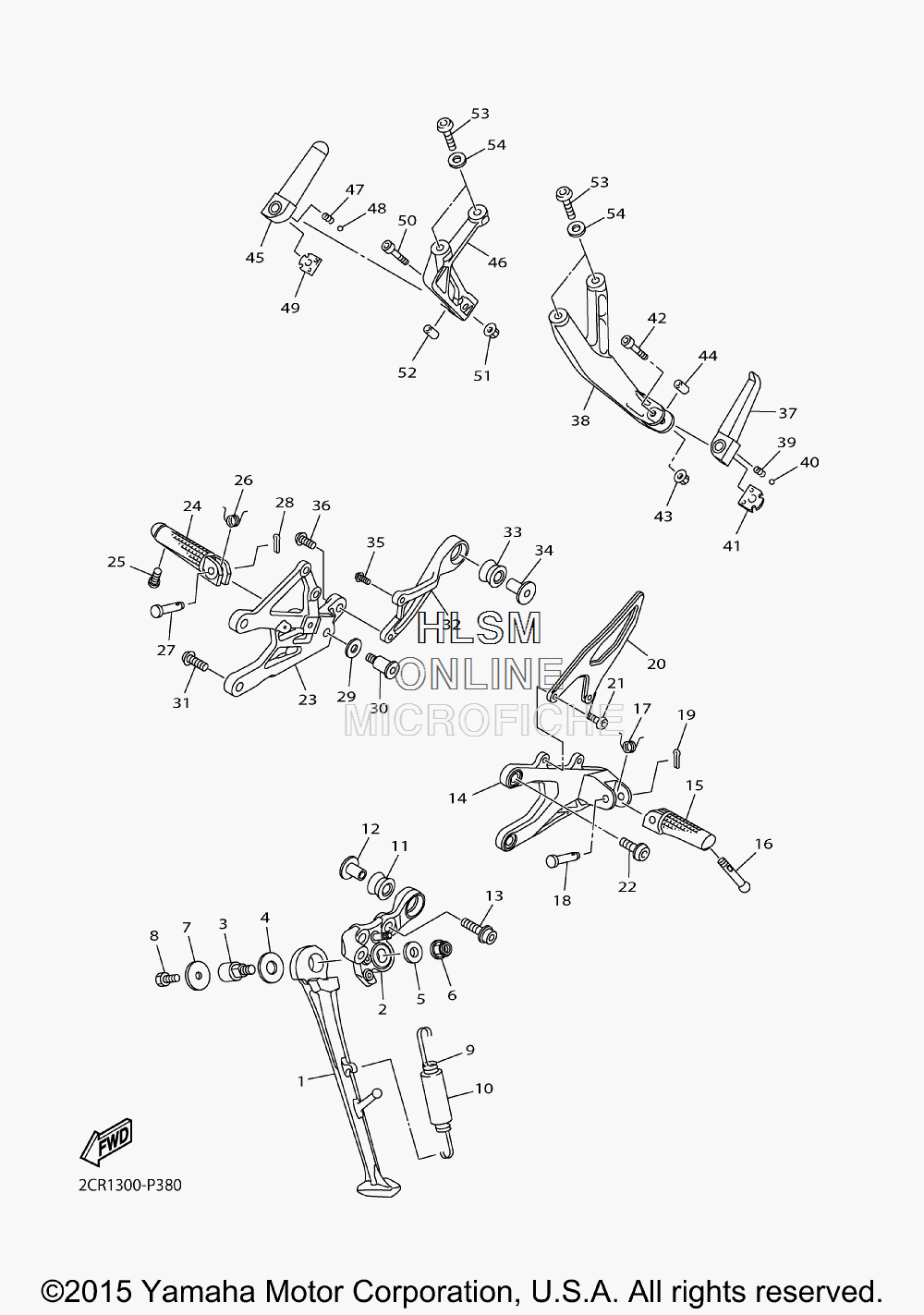

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha YZF-R1 - 2015 года выпуска`
-
№АртикулНазвание
-
12CR-27311-00-00 STAND, SIDESTAND, SIDE
-
22CR-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
32C0-27351-00-00 GUIDE, SIDE STANDGUIDE, SIDE STAND
-
490201-146F9-00 WASHER, PLATEWASHER, PLATE
-
590201-10035-00 WASHER, PLATEWASHER, PLATE
-
695602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
790201-08050-00 WASHER, PLATEWASHER, PLATE
-
890101-08662-00 BOLTBOLT
-
990506-18008-00 SPRING, TENSIONSPRING, TENSION
-
1090445-19002-00 HOSE (L60)HOSE (L60)
-
115VY-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
1290387-08021-00 COLLARCOLLAR
-
1390109-10002-00 BOLTBOLT
-
142CR-27442-00-00 BRACKET 2BRACKET 2
-
151KB-27451-00-00 FOOTRESTFOOTREST
-
1690109-086F8-00 BOLTBOLT
-
1790508-18134-00 SPRING, TORSIONSPRING, TORSION
-
1890240-08084-00 PIN, CLEVISPIN, CLEVIS
-
1991402-25015-00 PIN, COTTERPIN, COTTER
-
202CR-27445-00-00 PLATE 1PLATE 1
-
2190149-06233-00 SCREWSCREW
-
2290109-085G6-00 BOLTBOLT
-
232CR-27443-00-00 BRACKET 3BRACKET 3
-
241KB-27461-00-00 FOOTRESTFOOTREST
-
2590109-086F8-00 BOLTBOLT
-
2690508-18135-00 SPRING, TORSIONSPRING, TORSION
-
2790240-08084-00 PIN, CLEVISPIN, CLEVIS
-
2891402-25015-00 PIN, COTTERPIN, COTTER
-
2990201-08103-00 WASHER, PLATEWASHER, PLATE
-
304C8-27434-00-00 BOLTBOLT
-
3190109-085G6-00 BOLTBOLT
-
322CR-2148W-00-00 BRACKET, 3BRACKET, 3
-
335VY-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
3490387-08021-00 COLLARCOLLAR
-
3592017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3692017-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
375JJ-27431-10-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
382CR-2741L-00-00 BRACKET 4BRACKET 4
-
3990501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4093501-04011-00 BALL 1/4BALL 1/4
-
415JJ-27437-01-00 WASHER, SPECIALWASHER, SPECIAL
-
4291312-06035-00 BOLTBOLT
-
4395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4490387-06697-00 COLLARCOLLAR
-
455JJ-27441-10-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
462CR-2742L-00-00 BRACKET 5BRACKET 5
-
4790501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4893501-04011-00 BALL 1/4BALL 1/4
-
495JJ-27437-01-00 WASHER, SPECIALWASHER, SPECIAL
-
5091312-06035-00 BOLTBOLT
-
5195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5290387-06697-00 COLLARCOLLAR
-
5390111-08066-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5413S-27417-00-00 WASHER, FOOTRESTWASHER, FOOTREST
