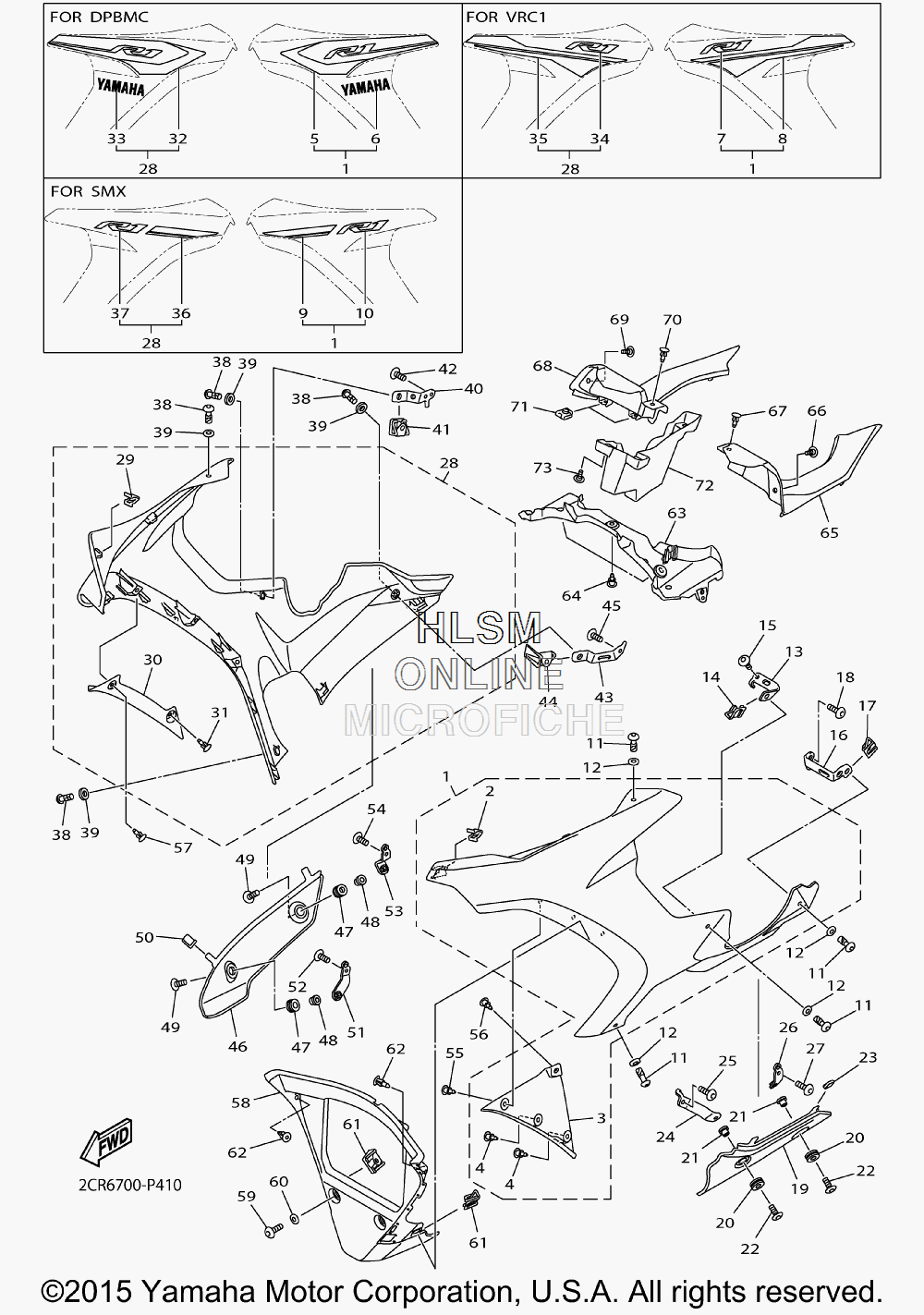

COWLING 2 для Yamaha YZF-R1 - 2015 года выпуска
-
№АртикулНазвание
-
12CR-Y283U-00-P0 PANEL ASSEMBLY 1 (SM1 FOR DPBMC)PANEL ASSEMBLY 1 (SM1 FOR DPBMC)
-
12CR-Y283U-10-P1 PANEL ASSEMBLY 1 (BWC1 FOR VRC1)PANEL ASSEMBLY 1 (BWC1 FOR VRC1)
-
12CR-Y283U-20-P2 PANEL ASSEMBLY 1 FOR SMXPANEL ASSEMBLY 1 FOR SMX
-
290468-040A0-00 ...CLIP...CLIP
-
32CR-2836K-00-00 ...PANEL, INNER 1...PANEL, INNER 1
-
490269-06008-00 ...RIVET...RIVET
-
52CR-28391-00-00 ......GRAPHIC 1 FOR DPBMC......GRAPHIC 1 FOR DPBMC
-
699247-00120-00 ......EMBLEM, YAMAHA FOR DPBMC......EMBLEM, YAMAHA FOR DPBMC
-
72CR-28328-00-00 ......EMBLEM FOR VRC1......EMBLEM FOR VRC1
-
82CR-28391-10-00 ......GRAPHIC 1 FOR VRC1......GRAPHIC 1 FOR VRC1
-
92CR-28391-20-00 ......GRAPHIC 1 FOR SMX......GRAPHIC 1 FOR SMX
-
102CR-2839B-00-00 ......EMBLEM 3D FOR SMX......EMBLEM 3D FOR SMX
-
112CR-28386-00-00 HEADHEAD
-
128HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
132CR-2833K-00-00 BRACKET 13BRACKET 13
-
142CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1590111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
162CR-2833L-00-00 BRACKET 14BRACKET 14
-
172CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1890111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
192CR-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
2090480-14477-00 GROMMETGROMMET
-
2190387-06307-00 COLLARCOLLAR
-
2290111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
235PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
242CR-2833R-00-00 BRRACKET, 17BRRACKET, 17
-
2590111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
262CR-2833T-00-00 BRRACKET, 18BRRACKET, 18
-
2790111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
282CR-Y283V-00-P0 PANEL ASSEMBLY 2 (SM1 FOR DPBMC)PANEL ASSEMBLY 2 (SM1 FOR DPBMC)
-
282CR-Y283V-10-P1 PANEL ASSEMBLY 2 (BWC1 FOR VRC1)PANEL ASSEMBLY 2 (BWC1 FOR VRC1)
-
282CR-Y283V-20-P2 PANEL ASSEMBLY 2 FOR SMXPANEL ASSEMBLY 2 FOR SMX
-
2990468-040A0-00 ...CLIP...CLIP
-
302CR-2836L-00-00 ...PANEL, INNER 2...PANEL, INNER 2
-
3190269-06008-00 ...RIVET...RIVET
-
322CR-28392-00-00 ......GRAPHIC 2 FOR DPBMC......GRAPHIC 2 FOR DPBMC
-
3399247-00120-00 ......EMBLEM, YAMAHA FOR DPBMC......EMBLEM, YAMAHA FOR DPBMC
-
342CR-28328-00-00 ......EMBLEM FOR VRC1......EMBLEM FOR VRC1
-
352CR-28392-10-00 ......GRAPHIC 2 FOR VRC1......GRAPHIC 2 FOR VRC1
-
362CR-28392-20-00 ......GRAPHIC 2 FOR SMX......GRAPHIC 2 FOR SMX
-
372CR-2839B-00-00 ......EMBLEM 3D FOR SMX......EMBLEM 3D FOR SMX
-
382CR-28386-00-00 HEADHEAD
-
398HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
402CR-2833M-00-00 BRACKET 15BRACKET 15
-
412CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
4290111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
432CR-2833N-00-00 BRACKET 16BRACKET 16
-
442CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
4590111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
462CR-2834W-00-00 PROTECTOR 2PROTECTOR 2
-
4790480-14477-00 GROMMETGROMMET
-
4890387-06307-00 COLLARCOLLAR
-
4990111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
505PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
512CR-2833U-00-00 BRRACKET, 19BRRACKET, 19
-
5290111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
532CR-2833V-00-00 BRRACKET, 20BRRACKET, 20
-
5490111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5590269-06001-00 RIVETRIVET
-
5690269-06008-00 RIVETRIVET
-
5790269-06001-00 RIVETRIVET
-
582CR-2836M-00-P0 PANEL, INNER 3 (MS1 FOR DPBMC)PANEL, INNER 3 (MS1 FOR DPBMC)
-
582CR-2836M-00-P1 PANEL, INNER 3 (BWC1 FOR VRC1)PANEL, INNER 3 (BWC1 FOR VRC1)
-
582CR-2836M-00-P2 PANEL, INNER 3 FOR SMXPANEL, INNER 3 FOR SMX
-
5990149-06302-00 SCREWSCREW
-
6090387-06309-00 COLLARCOLLAR
-
612CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
6290269-06008-00 RIVETRIVET
-
632CR-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
6490269-06008-00 RIVETRIVET
-
652CR-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
6690111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6790269-06008-00 RIVETRIVET
-
682CR-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
6990111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7090269-06008-00 RIVETRIVET
-
7190183-05076-00 NUT, SPRINGNUT, SPRING
-
722CR-2838K-00-00 BOX 1BOX 1
-
7390111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
