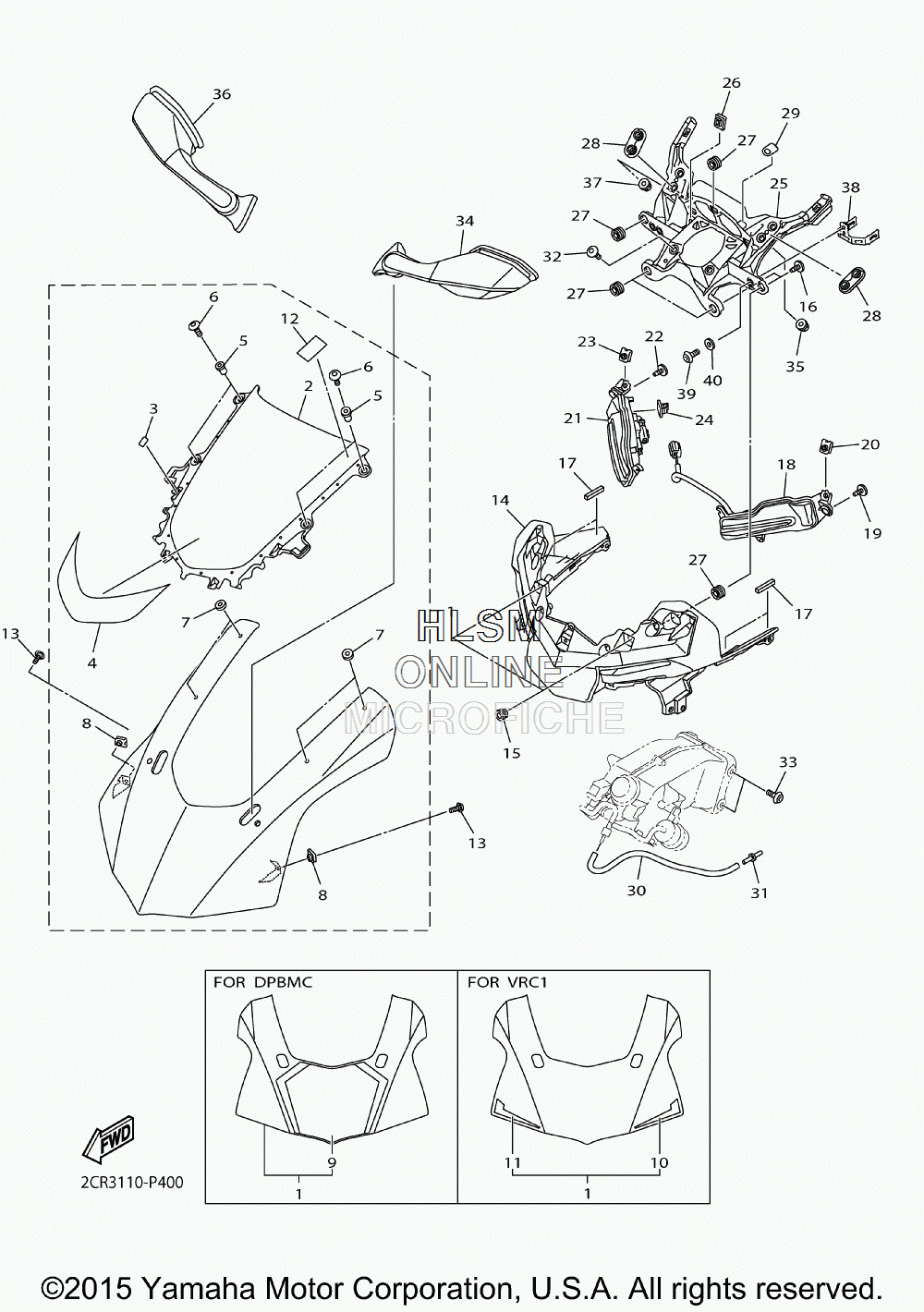

COWLING для Yamaha YZF-R1 - 2015 года выпуска`
-
№АртикулНазвание
-
12CR-Y283G-40-P0 BODY, FRONT UPPER 1 FOR DPBMCBODY, FRONT UPPER 1 FOR DPBMC
-
12CR-Y283G-50-P1 BODY, FRONT UPPER 1 FOR VRC1BODY, FRONT UPPER 1 FOR VRC1
-
12CR-Y283G-30-P2 BODY, FRONT UPPER 1 FOR SMXBODY, FRONT UPPER 1 FOR SMX
-
22CR-28381-10-00 ...WINDSHIELD...WINDSHIELD
-
31S4-2476U-00-00 ...PROTECTOR 1...PROTECTOR 1
-
42CR-2832P-00-00 ...GRAPHIC, 18...GRAPHIC, 18
-
590179-05523-00 ...NUT SPEC'L SHAPE...NUT SPEC'L SHAPE
-
62CR-28333-00-00 ...BOLT...BOLT
-
790202-05088-00 ...WASHER, PLATE...WASHER, PLATE
-
890183-05076-00 ...NUT, SPRING...NUT, SPRING
-
92CR-2832D-00-00 ......GRAPHIC 17 FOR DPBMC......GRAPHIC 17 FOR DPBMC
-
102CR-2832B-00-00 ......GRAPHIC, 15 FOR VRC1......GRAPHIC, 15 FOR VRC1
-
112CR-2832C-00-00 ......GRAPHIC, 16 FOR VRC1......GRAPHIC, 16 FOR VRC1
-
124B5-2815K-00-00 ...LABEL, NOTICE WINDSHIELD 1...LABEL, NOTICE WINDSHIELD 1
-
1390111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
142CR-2835H-00-00 BODY, FRONT UPPER 2BODY, FRONT UPPER 2
-
1590480-10003-00 GROMMETGROMMET
-
1690164-05001-00 SCREW, TAPPINGSCREW, TAPPING
-
172C0-28247-00-00 DAMPER 4DAMPER 4
-
182CR-84301-00-00 PILOT LIGHT ASSY 1PILOT LIGHT ASSY 1
-
1997702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
2090183-05076-00 NUT, SPRINGNUT, SPRING
-
212CR-84302-00-00 PILOT LIGHT ASSY 2PILOT LIGHT ASSY 2
-
2297702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
2390183-05076-00 NUT, SPRINGNUT, SPRING
-
2490464-25160-00 CLAMPCLAMP
-
252CR-28356-00-00 STAY 1STAY 1
-
2690183-060A1-00 NUT, SPRINGNUT, SPRING
-
274XV-83513-00-00 DAMPERDAMPER
-
284C8-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
292CR-22873-00-00 SEAL 1SEAL 1
-
3090445-086J3-00 HOSE (L320)HOSE (L320)
-
315PS-14568-00-00 JOINTJOINT
-
3290111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3390111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
342CR-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
3590176-06055-00 NUT, CROWNNUT, CROWN
-
362CR-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
3790176-06055-00 NUT, CROWNNUT, CROWN
-
382CR-2836J-00-00 BRACKET 6BRACKET 6
-
3992012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4090387-06184-00 COLLARCOLLAR
