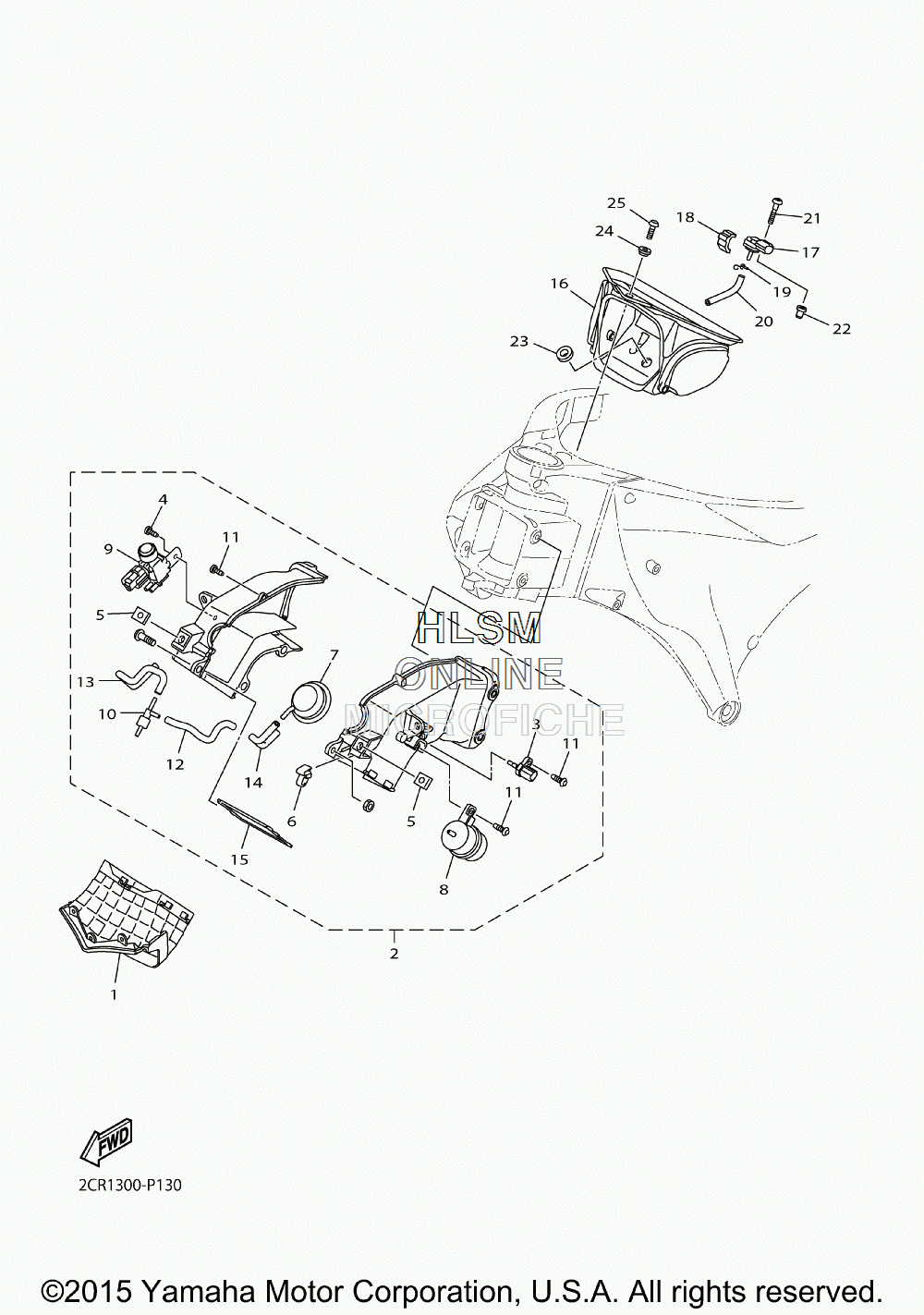

AIR INDUCTION SYSTEM для Yamaha YZF-R1 - 2015 года выпуска`
-
№АртикулНазвание
-
12CR-2838N-00-00 DUCT 1DUCT 1
-
22CR-2832E-00-00 DUCT ASSYDUCT ASSY
-
38FP-85886-00-00 ...SENSOR, AIR TEMPERATURE...SENSOR, AIR TEMPERATURE
-
497702-50512-00 ...SCREW, TAPPING...SCREW, TAPPING
-
590183-060A1-00 ...NUT, SPRING...NUT, SPRING
-
690464-25008-00 ...CLAMP...CLAMP
-
73D7-14545-00-00 ...DIAPHRAGM...DIAPHRAGM
-
85PS-1446E-00-00 ...TANK, SURGE...TANK, SURGE
-
95PS-1410H-00-00 ...FUEL CUT SOLENOID VALVE...FUEL CUT SOLENOID VALVE
-
105PS-14552-00-00 ...VALVE, CHECK...VALVE, CHECK
-
1197707-50516-00 ...SCREW, TAPPING...SCREW, TAPPING
-
122CR-2247B-00-00 ...HOSE 2...HOSE 2
-
132CR-2247C-00-00 ...HOSE 3...HOSE 3
-
142CR-2247D-00-00 ...HOSE 4...HOSE 4
-
152CR-2837N-00-00 ...GRILL, AIR INTAKE 1...GRILL, AIR INTAKE 1
-
162CR-2838U-00-00 DUCT 4DUCT 4
-
171WS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
182CR-28372-00-00 DAMPERDAMPER
-
1990467-08021-00 CLIPCLIP
-
2090445-08028-00 HOSEHOSE
-
2190109-04001-00 BOLTBOLT
-
2290179-04003-00 NUTNUT
-
2390480-13567-00 GROMMETGROMMET
-
2490387-06130-00 COLLARCOLLAR
-
2595022-06016-00 BOLT, FLANGEBOLT, FLANGE
