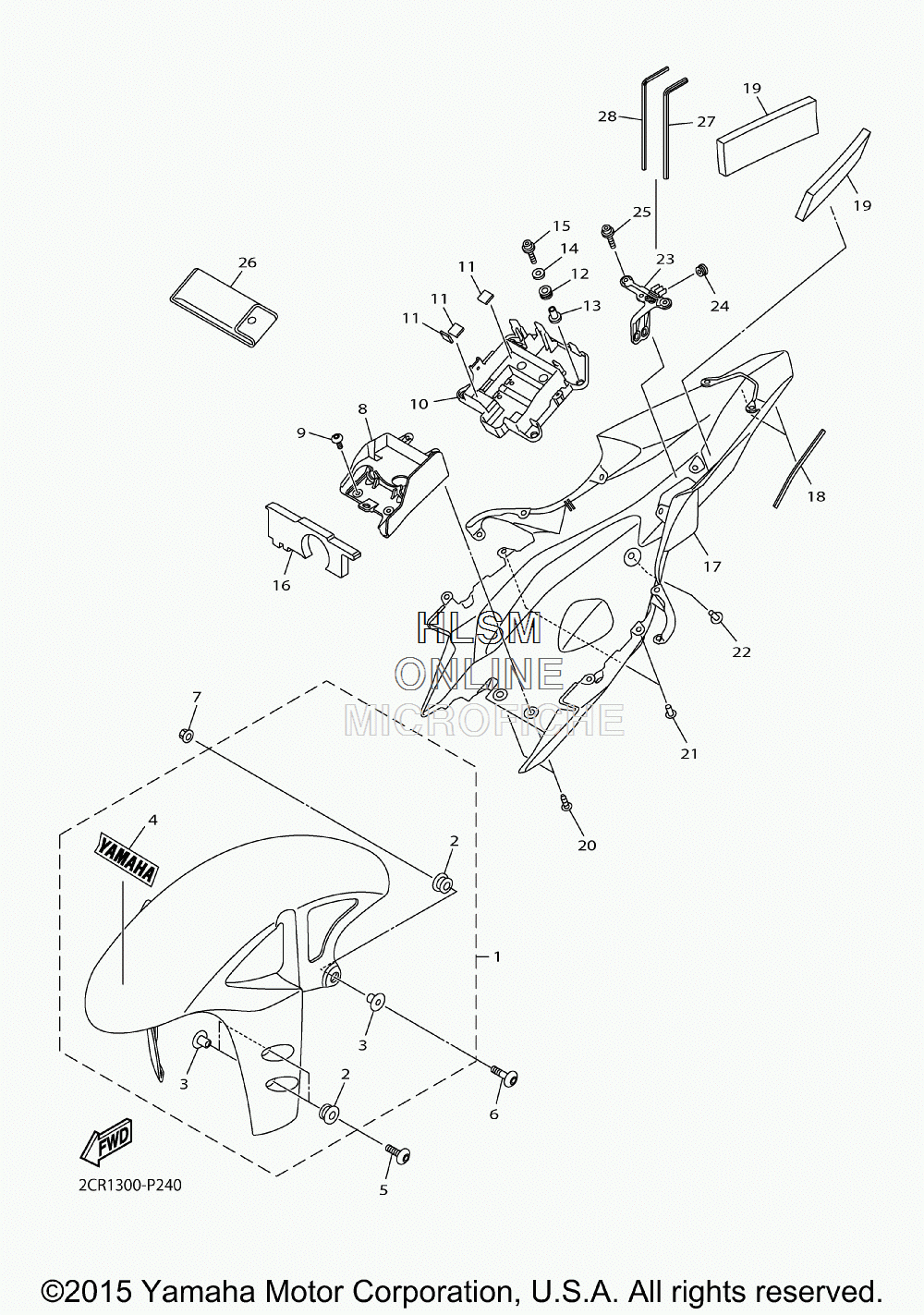

FENDER - FRONT / REAR для Yamaha YZF-R1 - 2015 года выпуска`
-
№АртикулНазвание
-
114B-Y2151-20-P2 FRONT FENDER ASSY FOR DPBMCFRONT FENDER ASSY FOR DPBMC
-
114B-Y2151-30-P6 FRONT FENDER ASSY FOR VRC1FRONT FENDER ASSY FOR VRC1
-
114B-Y2151-40-P0 FRONT FENDER ASSY FOR SMXFRONT FENDER ASSY FOR SMX
-
290480-12072-00 ...GROMMET...GROMMET
-
390387-065J6-00 ...COLLAR...COLLAR
-
499246-00080-00 ......EMBLEM, YAMAHA FOR DPBMC......EMBLEM, YAMAHA FOR DPBMC
-
499247-00080-00 ......EMBLEM, YAMAHA FOR SMX......EMBLEM, YAMAHA FOR SMX
-
499244-00080-00 ......EMBLEM, YAMAHA FOR VRC1......EMBLEM, YAMAHA FOR VRC1
-
590111-06043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
690111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
795702-06500-00 NUT, FLANGENUT, FLANGE
-
82CR-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
990111-06116-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
102CR-8212C-00-00 BOX, BATTERY 2BOX, BATTERY 2
-
1113S-21649-00-00 DAMPERDAMPER
-
1290480-13018-00 GROMMETGROMMET
-
1390387-073M2-00 COLLARCOLLAR
-
1490201-06088-00 WASHER, PLATEWASHER, PLATE
-
1590110-06172-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
162CR-21638-00-00 DAMPER 1DAMPER 1
-
172CR-21611-00-00 FENDER, REARFENDER, REAR
-
183C5-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
1990520-20003-00 DAMPER, PLATEDAMPER, PLATE
-
2090269-06008-00 RIVETRIVET
-
2190269-05005-00 RIVETRIVET
-
2290269-07076-00 RIVET SPEC'L SHAPERIVET SPEC'L SHAPE
-
232CR-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2490480-10003-00 GROMMETGROMMET
-
2590110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
262CR-28100-00-00 TOOL KITTOOL KIT
-
2723P-28164-00-00 WRENCH, HEXAGON 8WRENCH, HEXAGON 8
-
2814B-28164-00-00 WRENCH, HEXAGON 8WRENCH, HEXAGON 8
