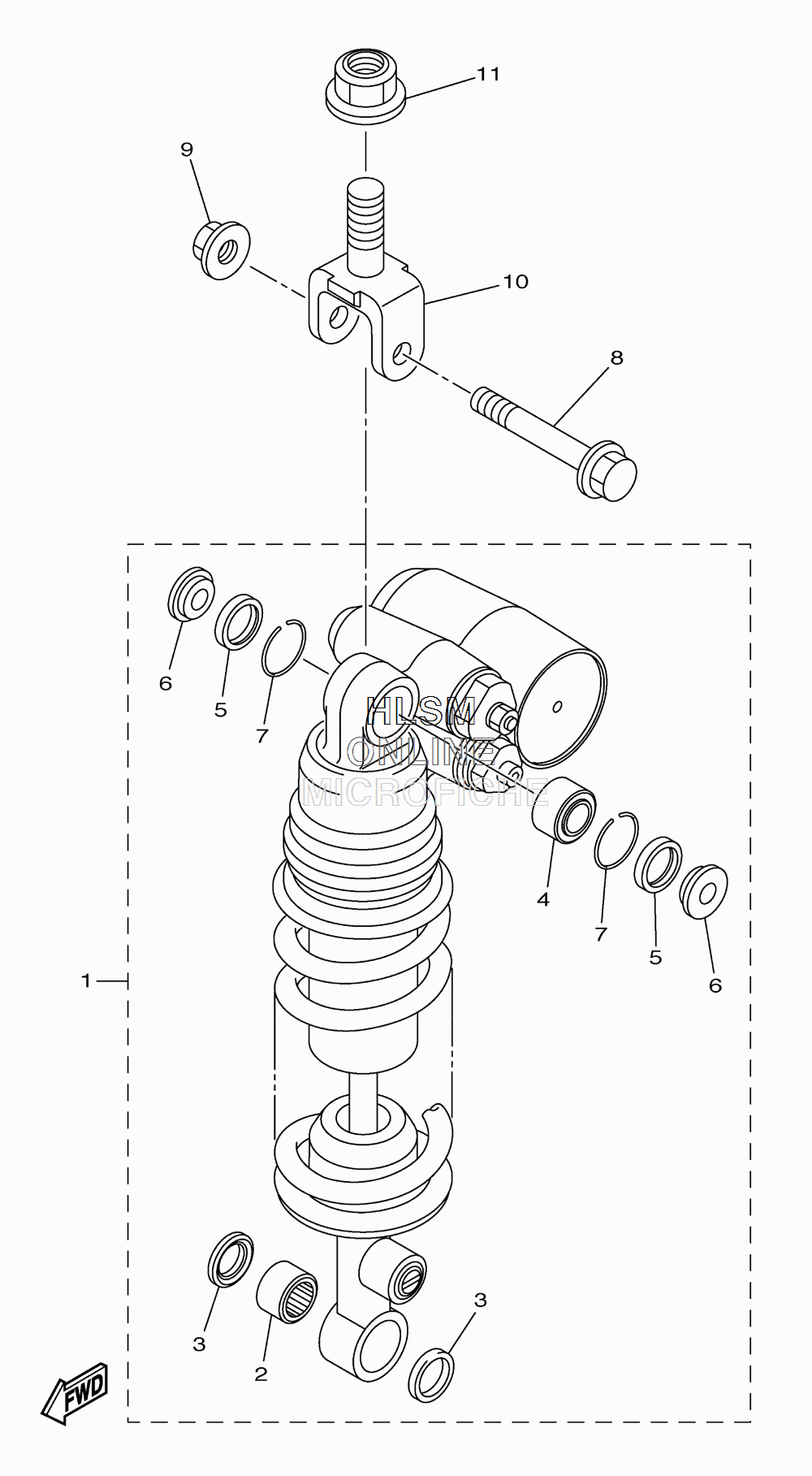

SUSPENSION - REAR SHOCK ABSORBER для Yamaha YZF-R1 - 2012 года выпуска`
-
№АртикулНазвание
-
11KB-22210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
293315-31758-00 ...BEARING...BEARING
-
393109-17071-00 ...OIL SEAL...OIL SEAL
-
493399-999T4-00 ...BEARING...BEARING
-
593101-18061-00 ...OIL SEAL...OIL SEAL
-
614B-22253-00-00 ...COLLAR, DISTANCE...COLLAR, DISTANCE
-
793440-30113-00 ...CIRCLIP...CIRCLIP
-
890105-10020-00 BOLT, FLANGEBOLT, FLANGE
-
995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
101KB-22219-00-00 BRACKET, UPPERBRACKET, UPPER
-
1195602-16200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
