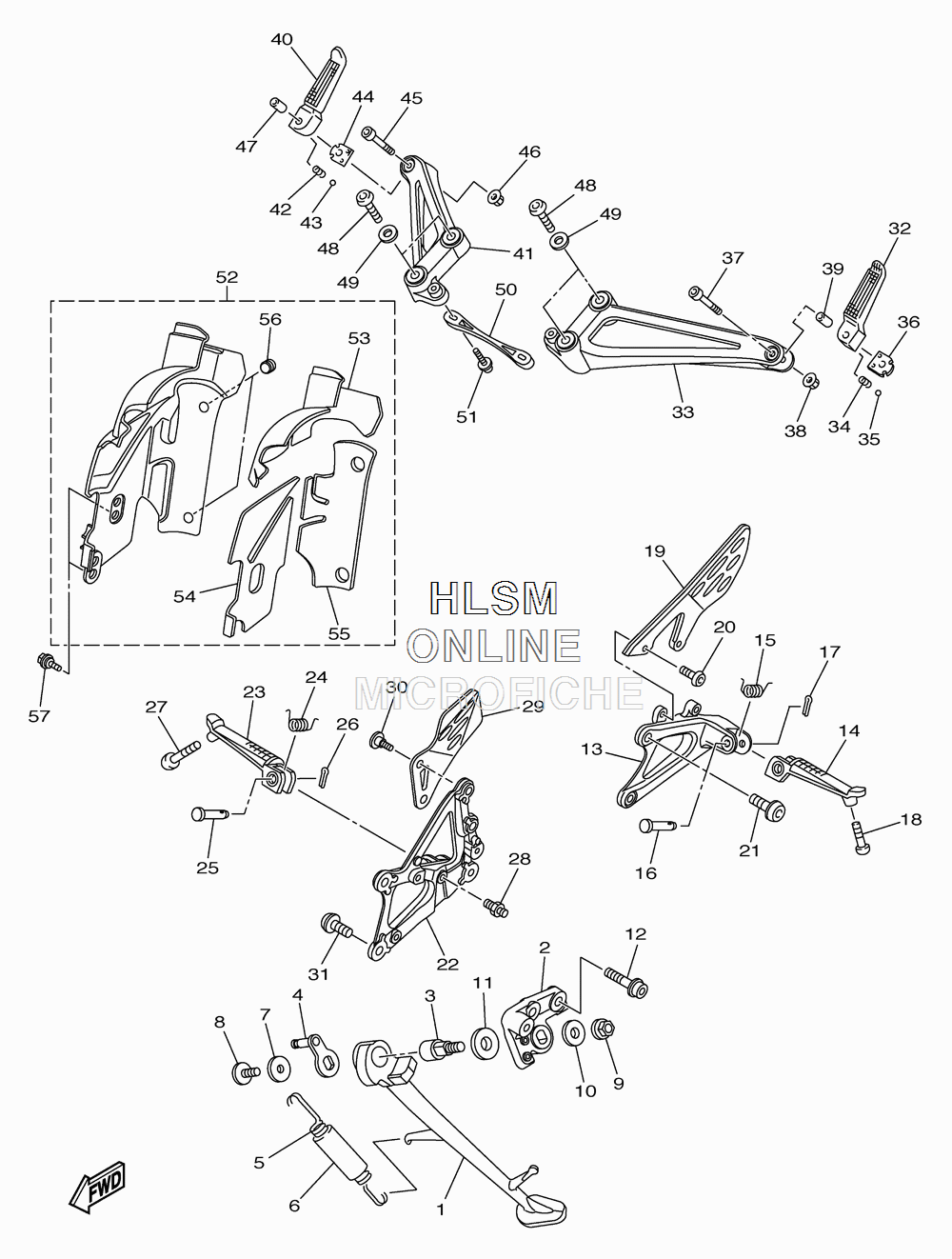

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha YZF-R1 - 2012 года выпуска
-
№АртикулНазвание
-
114B-27311-00-00 STAND, SIDESTAND, SIDE
-
214B-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
314B-27351-00-00 GUIDE, SIDE STANDGUIDE, SIDE STAND
-
414B-27352-00-00 HOOK, SIDE STANDHOOK, SIDE STAND
-
590506-18008-00 SPRING, TENSIONSPRING, TENSION
-
690445-19002-00 HOSE (L60)HOSE (L60)
-
790201-081R9-00 WASHER, PLATEWASHER, PLATE
-
890111-08073-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1090201-10035-00 WASHER, PLATEWASHER, PLATE
-
1190201-146F9-00 WASHER, PLATEWASHER, PLATE
-
1290110-10025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1314B-27442-10-00 BRACKET 2BRACKET 2
-
141KB-27451-00-00 FOOTRESTFOOTREST
-
1590508-18134-00 SPRING, TORSIONSPRING, TORSION
-
1690240-08084-00 PIN, CLEVISPIN, CLEVIS
-
1791401-25015-00 PIN, COTTERPIN, COTTER
-
1890109-08174-00 BOLTBOLT
-
1914B-27445-10-00 PLATE 1PLATE 1
-
2090111-06003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2190109-085G6-00 BOLTBOLT
-
2214B-27443-10-00 BRACKET 3BRACKET 3
-
231KB-27461-00-00 FOOTRESTFOOTREST
-
2490508-18135-00 SPRING, TORSIONSPRING, TORSION
-
2590240-08084-00 PIN, CLEVISPIN, CLEVIS
-
2691401-25015-00 PIN, COTTERPIN, COTTER
-
2790109-08174-00 BOLTBOLT
-
284C8-27813-00-00 PIN, PEDAL CRANKPIN, PEDAL CRANK
-
2914B-27446-10-00 PLATE 2PLATE 2
-
3090109-066F0-00 BOLTBOLT
-
3190109-085G6-00 BOLTBOLT
-
325JJ-27431-10-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
3314B-2741L-10-00 BRACKET 4BRACKET 4
-
3490501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3593501-04011-00 BALL 1/4BALL 1/4
-
365JJ-27437-01-00 WASHER, SPECIALWASHER, SPECIAL
-
3791312-06035-00 BOLT (4MY)BOLT (4MY)
-
3895602-06200-00 NUT-UNUT-U
-
3990387-06697-00 COLLARCOLLAR
-
405JJ-27441-10-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
4114B-2742L-10-00 BRACKET 5BRACKET 5
-
4290501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4393501-04011-00 BALLBALL
-
445JJ-27437-01-00 WASHER, SPECIALWASHER, SPECIAL
-
4591312-06035-00 BOLT (4MY)BOLT (4MY)
-
4695602-06200-00 BOLT-UBOLT-U
-
4790387-06697-00 COLLARCOLLAR
-
4890111-08066-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4913S-27417-00-00 WASHER, FOOTRESTWASHER, FOOTREST
-
5014B-27469-00-00 REINFORCEMENT 1REINFORCEMENT 1
-
5190109-06031-00 BOLTBOLT
-
5214B-27490-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
5314B-2749A-00-00 ...SEAT 3...SEAT 3
-
5414B-2749B-00-00 ...SEAT 4...SEAT 4
-
5514B-2749D-00-00 ...SEAT 6...SEAT 6
-
562D1-14737-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
5790109-06264-00 BOLTBOLT
